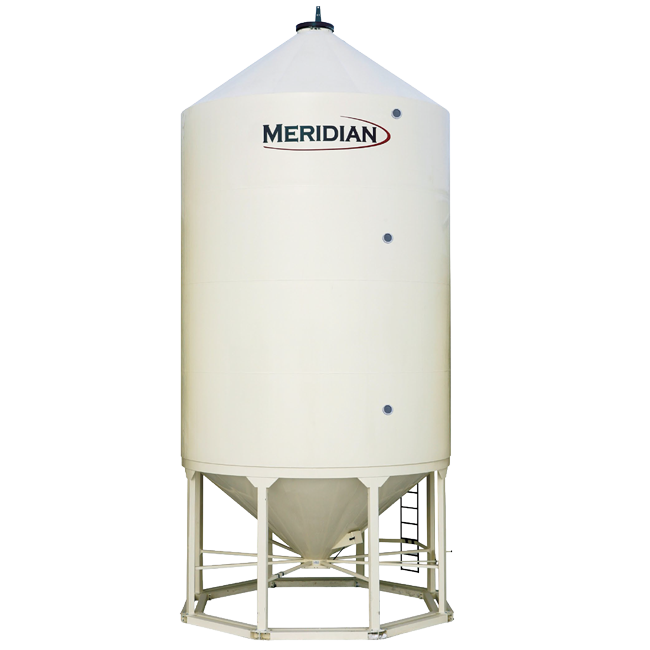

Meridian Hybrid Bins
Experience the best of both worlds with Meridian’s Stainless Steel Hybrid Bins. Stainless steel offers superior corrosion resistance, and is the perfect material for storing materials such as fertilizer. However, stainless steel only offers 60% of the yield strength as mild steel- so Meridian has developed the ultimate solution. The stainless steel roof, wall and hopper cone offer a superior long lasting storage solution, while the mild steel legs and skid offers a strong and reliable structure for the bin. Meridian’s high performance powder coating offers additional corrosion protection and better heat deflection than standard stainless finish.
Stainless steel hybrid bins
| Model Number | Approx. Bushels | Cubic Feet | Imp. Tons | Metric Tonnes | Bin Height | Rec. Auger |
|---|---|---|---|---|---|---|
| 12′ Diameter Multi-Purpose – 45 Degree Bottom Cone | ||||||
| 1205 | 804 | 947 | 29 | 26 | 16′-8″ | 33′ |
| 1208 | 1,093 | 1,286 | 39 | 36 | 19′-8″ | 39′ |
| 1210 | 1,284 | 1,511 | 46 | 42 | 21′-8″ | 39′ |
| 1212 | 1,476 | 1,737 | 53 | 48 | 23′-8″ | 39′ |
| 1215 | 1,763 | 2,075 | 64 | 58 | 26′-8″ | 46′ |
| 14′-0″ Diameter Multi-Purpose – 45 Degree Bottom Cone | ||||||
| 1410 | 1,823 | 2,145 | 66 | 60 | 23′-4″ | 39′ |
| 1412 | 2,084 | 2,452 | 76 | 68 | 25′-4″ | 46′ |
| 1415 | 2,476 | 2,913 | 90 | 81 | 28′-4″ | 53′ |
| 1417 | 2,737 | 3,220 | 99 | 90 | 30′-4″ | 53′ |
| 1420 | 3,128 | 3,681 | 114 | 103 | 33′-4″ | 59′ |
| 15.5′ Diameter Multi-Purpose – 40 Degree Bottom Cone | ||||||
| 15610 | 2,237 | 2,632 | 81 | 74 | 23′-9″ | 41′ |
| 15612 | 2,556 | 3,008 | 93 | 84 | 25′-9″ | 46′ |
| 15615 | 3,037 | 3,573 | 110 | 100 | 28′-9″ | 53′ |
| 15617 | 3,357 | 3,950 | 122 | 111 | 30′-9″ | 53′ |
| 15620 | 3,836 | 4,513 | 139 | 126 | 33′-9″ | 59′ |
| 15625 | 4,636 | 5,455 | 169 | 153 | 38′-9″ | 66′ |
| 15630 | 5,434 | 6,394 | 198 | 179 | 43′-9″ | 72′ |
| 16′ Diameter Multi-Purpose – 40 Degree Bottom Cone | ||||||
| 1610 | 2,405 | 2,830 | 87 | 79 | 23′-11″ | 46′ |
| 1612 | 2,746 | 3,231 | 100 | 90 | 25′-11″ | 46′ |
| 1615 | 3,258 | 3,833 | 118 | 107 | 28′-11″ | 53′ |
| 1617 | 3,599 | 4,235 | 131 | 119 | 30′-11″ | 53′ |
| 1620 | 4,109 | 4,835 | 149 | 136 | 33′-11″ | 59′ |
| 1625 | 4,961 | 5,837 | 180 | 164 | 38′-11″ | 66′ |
| 1630 | 5,813 | 6,839 | 212 | 192 | 43′-11″ | 72′ |
| 18′ Diameter Multi-Purpose – 40 Degree Bottom Cone | ||||||
| 1810 | 3,155 | 3,712 | 115 | 104 | 25′-6″ | 46′ |
| 1815 | 4,233 | 4,981 | 154 | 140 | 30′-6″ | 53′ |
| 1820 | 5,312 | 6,250 | 193 | 175 | 35′-7″ | 59′ |
| 1825 | 6,392 | 7,520 | 233 | 211 | 40′-6″ | 66′ |
| 1830 | 7,470 | 8,789 | 272 | 247 | 45′-6″ | 79′ |
Standard Features
- Stainless Steel Slide Plate
- Min. 40 degree bottom cone and 35 degree roof cone
- 304L Stainless Steel Construction
- HSS (hollow structural steel) legs and bracing
- Complete sidewall and roof retractable ladder
- 24” clearance under the slide gate
- Vented Top Lid – spring loaded and ground operated
- Premium Rack-n-Pinion slide gate assembly with crank
- 25” top opening
Advantages
- Proven History | Meridian built the first SmoothWall bin in 1965, today you can find countless bins across the prairies that have stood the test of time
- Powder Coat Finish | Long lasting with a much higher salt-spray-rating than liquid paint
- Options & Accessories | Meridian offers a wide range of options to ensure the best product for your farm
