Meridian Stainless Steel Tanks

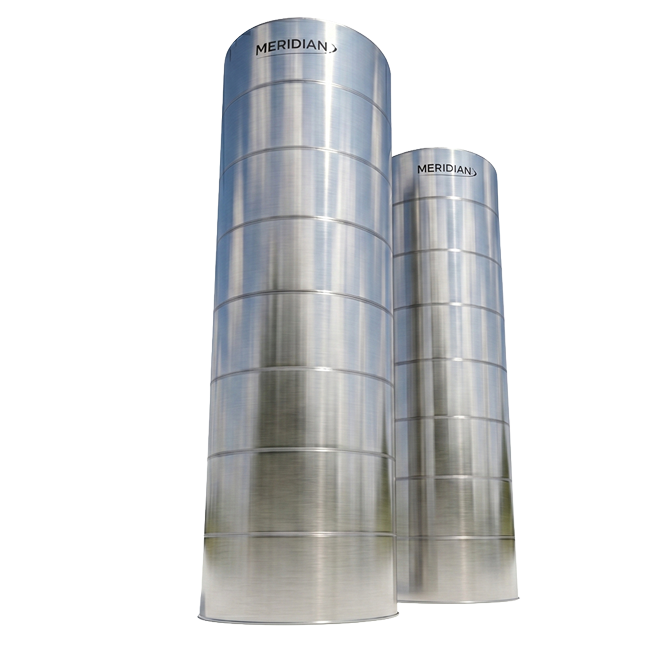

Meridian Manufacturing: Stainless Steel Tanks

Meridian Stainless Steel Storage Tanks provide corrosion-resistant liquid storage for industrial applications including food production, plastics manufacturing, and energy sector operations. Built from high-quality 304L or 316 stainless steel, depending on the application. These tanks are designed to maintain product integrity while delivering long service life in demanding processing and storage environments.

Meridian offers a full line of stainless steel liquid tanks to support a wide range of industrial storage applications. Interior seams on liquid tanks are back welded and pressure tested to help ensure containment integrity and long-term performance. Tanks also undergo a wash and treatment process, including re-passivation, which removes free iron from the metal surface to help prevent rust and corrosion. Flat bottom designs provide stable, large-capacity liquid storage, while multiple sizes and configurations allow tanks to be integrated into new or existing industrial systems.

Common Applications

Industrial water storage
Food processing liquids
Liquid storage for plastics manufacturing
Energy sector liquid storage

Western Canada/Northern USA Stainless Tanks

Model	cu.ft.	Litres	Imp Gallon	US Gallon	Metric Tonne	Imp Ton
1220	2302	65175	14336	17217	85	93
1225	2867	81187	17859	21447	105	116
1230	2433	97200	21381	25678	126	139
1235	3998	113213	24903	29908	147	162
1240	4564	129226	28426	34138	168	185
1420	3142	88968	19570	23503	115	127
1425	3912	110764	24365	29261	144	158
1430	4681	132559	29159	35018	172	190
1435	5451	154354	33953	40776	200	221
1440	6221	176149	38747	45534	228	252
1620	4116	116540	25635	30787	151	167
1625	5121	145007	31897	38307	188	207
1630	6126	173474	38159	45827	225	248
1635	7131	201942	44421	53347	262	289
1640	8137	230409	50683	60868	299	329
1830	7768	219979	48389	58112	285	315
1835	9041	256007	56314	67630	332	366
1840	10313	292036	64239	77148	379	418
1850	12858	364094	80089	96183	472	521

Eastern Canada Stainless Tanks

Model	Imp. Gallon	Liter	Height	MT
1215	10,800	49,160	18’ 3’’	63
1220	14,335	65,102	23’ 3’’	84
1225	17,860	80,999	28’ 3’’	105
1230	21,380	96,896	33’ 3’’	126
1235	24,900	113,172	38’ 3’’	146
1240	28,425	129,069	43’ 3’’	167
1315	12,519	56,910	16’ 3’’	73
1320	16,585	75,397	23’ 5’’	97
1325	20,660	93,906	28’ 5’’	121
1330	24,730	112,415	33’ 5’’	145
1335	28,800	130,904	38’ 5’’	169
1340	32,870	149,394	43’ 5’’	193
1345	36,940	167,940	48’5’	215
1350	41,000	186,445	53’5	239

Not all sizes available in all regions. Contact stainless@meridianmfg.com for full details. Tonnes are based on 13 lbs/Imp Gallon

Standard Features

10 Degree Slope on dome
2 Year Manufacturer’s Warranty
24” Manway for easy access to interior of tank
304L Stainless Steel Construction
4” Vented Dome Cap
Lifting Lugs
Two 4” FPT Discharge and Recirculating Ports
Volume Labeled Sight Gauge

Common Options (0 selected)

Fully Insulated

FAQ

Re-passivation is a treatment process that removes free iron from the stainless steel surface using an acid solution to help improve corrosion resistance and prevent rust formation.

Back welding and pressure testing help ensure tank integrity, reduce the risk of leaks, and support long-term performance in industrial liquid storage applications.

Yes. Tanks can be configured with various capacities, fittings, access options, and connection layouts to support specific operational requirements.
