- 12 gauge hopper construction
- Two stage – epoxy/polyurethane coating system
- 20” wide, slave conveyor belt
- 25’ long, 16” paddle belt, unload conveyor
- Self-contained hydraulics
- Aluminum anodized hydraulic valves
- Camera package
- Weigh scale package
- LED working lights
- External ladder
- 2 sight glasses per compartment
- LED gate indicators
- Air ride trailer
- Aluminum outer wheels with polyethylene fenders
- Tier 4 Diesel Engine (CST-1550 Only)
- Gas Engine (CST-39-C Only)
- 6 Compartments (CST-1550 Only)
- 5 Compartments (CST-39-C Only)
- Scale Package and SS Fenders (CST-1550 Only)

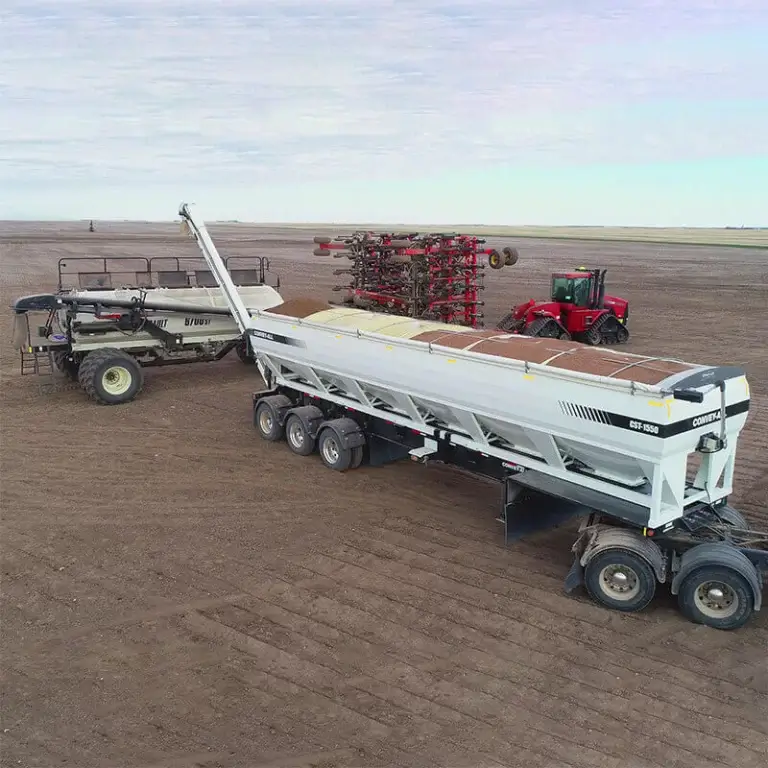

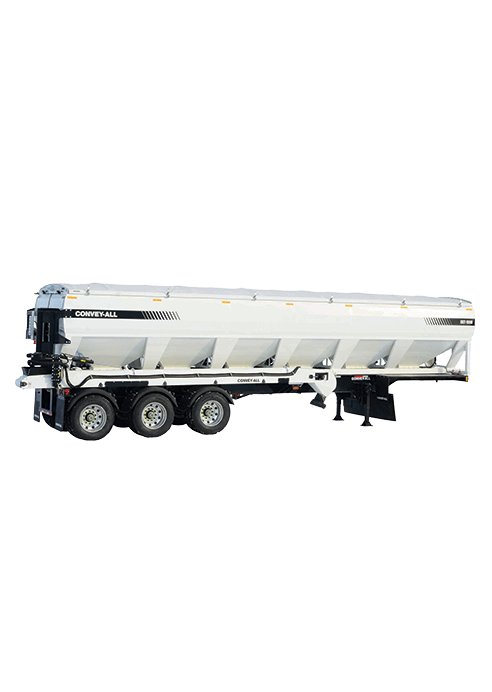

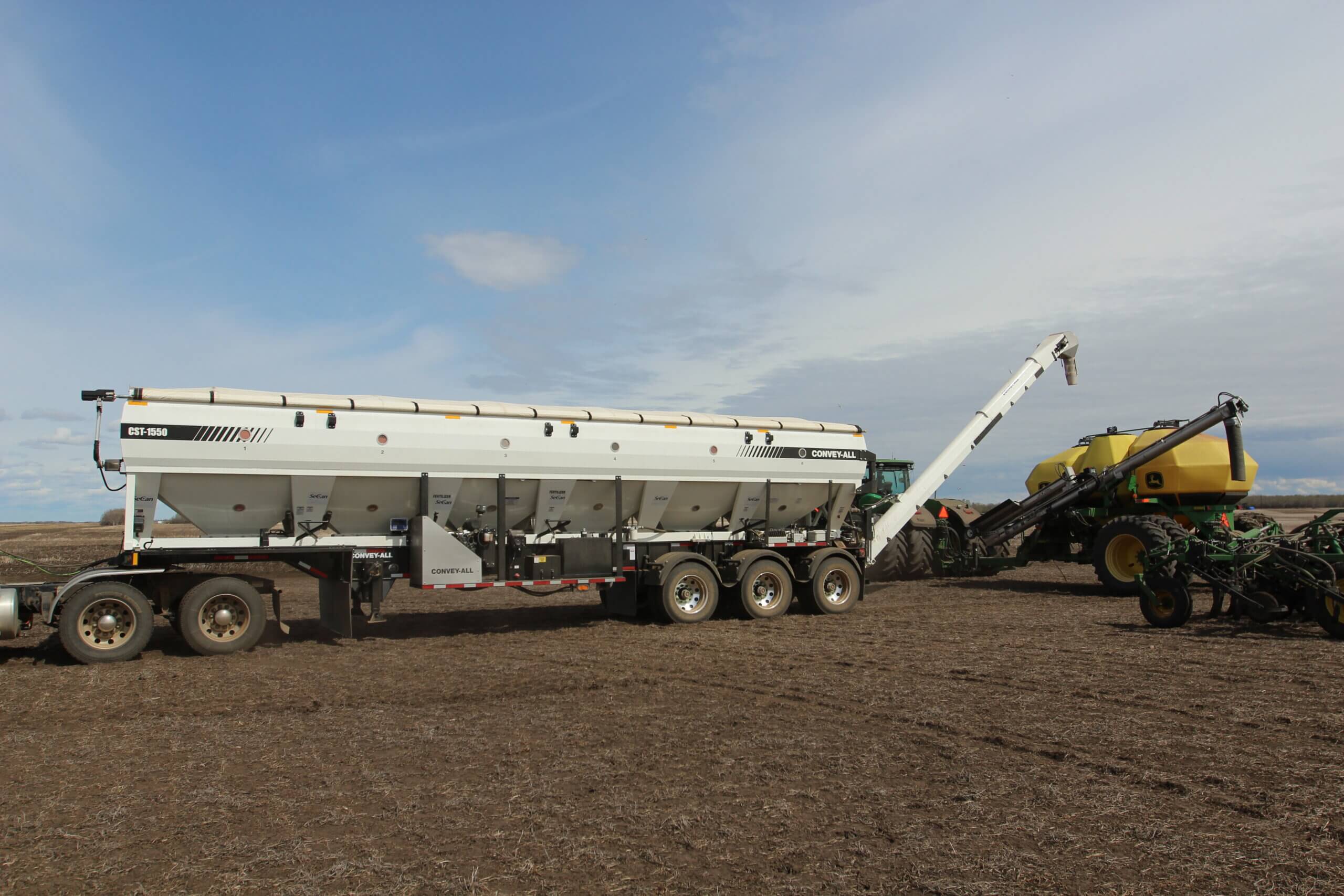

Commercial Seed Tender CST-1550
| Model |
Dishcarge Heights Min/Max |
Swing Diameter |
Ft3/Compartment (total) |
Units/Compartment (total) |
Bushels/Compartment (Total) |
Total Capacity Imperial |
Total Capacity Metric |
| CST-1550 |
8′ 2″ @ 15°, 18′ 8″ @ 40° |
144° Swing 43′ 2″ Reach |
258.5 (1551) |
320 (1920) |
208 (1248) |
48 Ton |
43.6 MT |

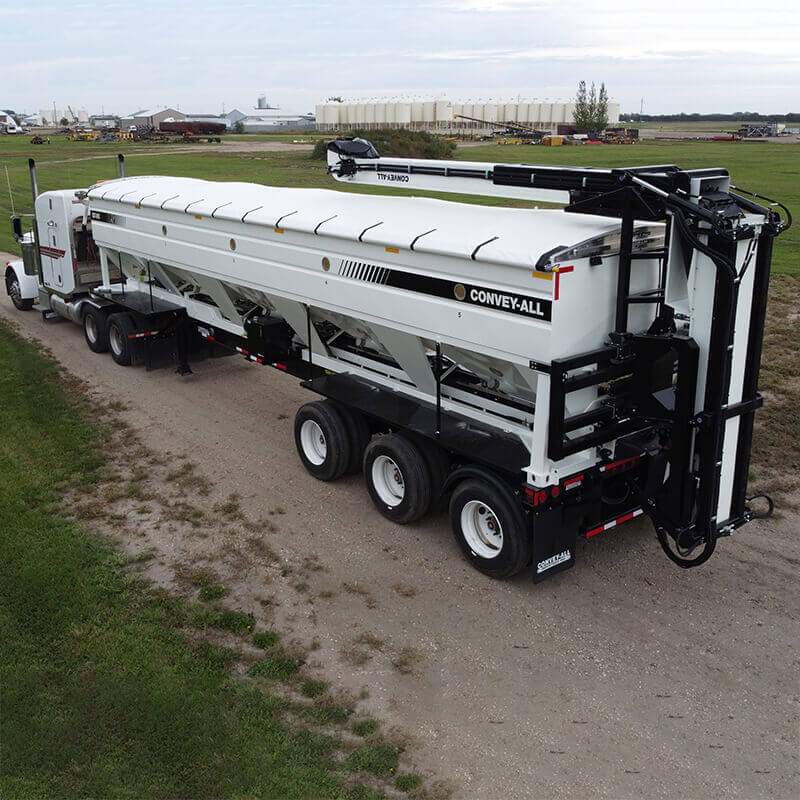

| CST-39C |
8′ 2″ @ 15°, 18′ 8″ @ 40° |
144° Swing 43′ 2″ Reach |
258.5 (1551) |
320 (1920) |
208 (1248) |
48 Ton |
43.6 MT |
