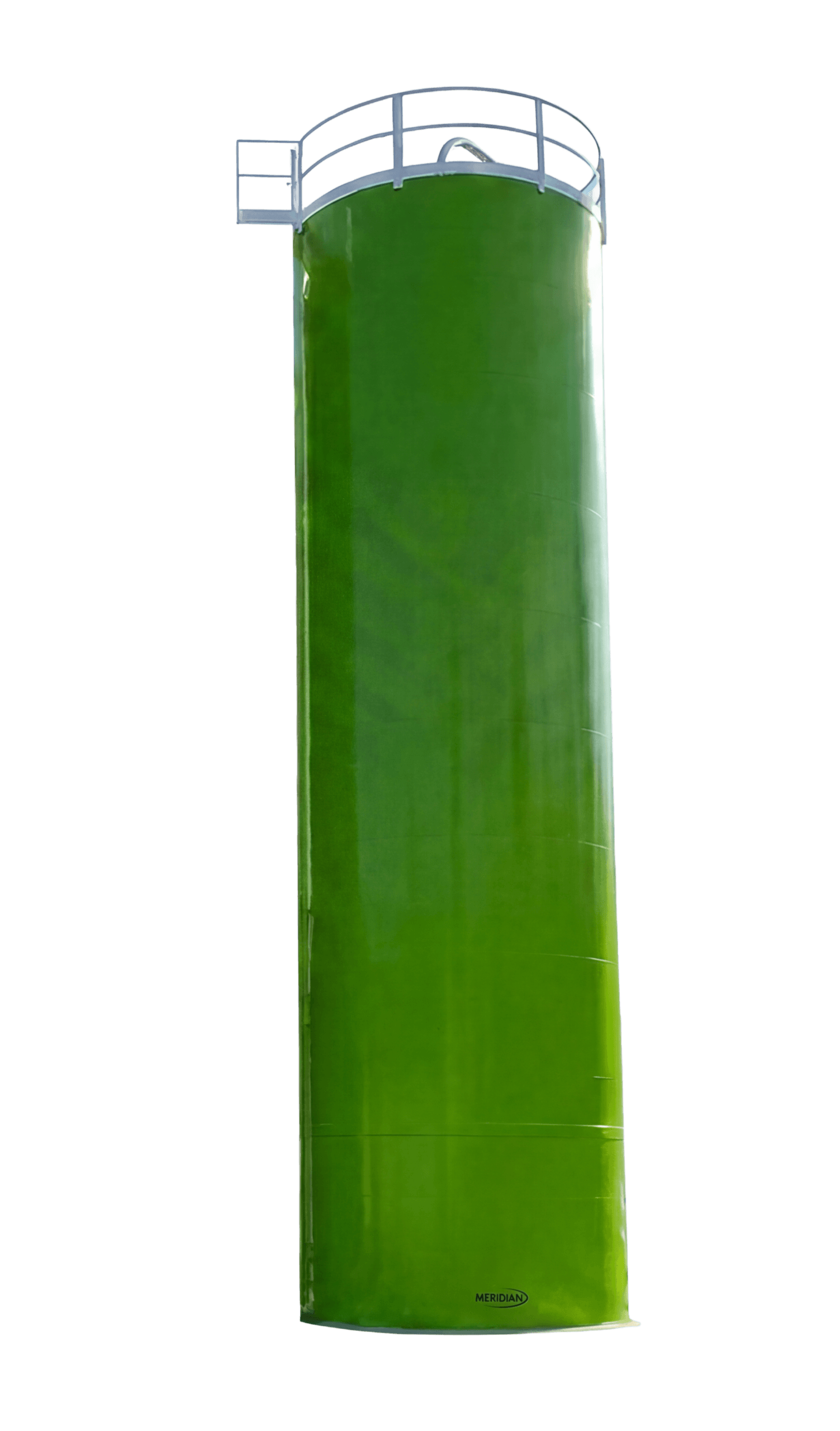

Meridian Manufacturing: Plastics Silos

Meridian Plastics Silos are engineered for plastics manufacturers that depend on consistent material quality and reliable supply to keep production running. Designed for pellets, resins, powders, flakes, and additives, these silos provide high-capacity bulk storage while helping reduce material handling, protect against contamination, and support consistent processing performance.

Built with fully welded SmoothWall construction and available with enclosed skirted designs, Meridian Plastics Silos help protect stored materials from contamination while promoting reliable material flow and clean discharge. Optional blending cone configurations support improved material homogeneity for applications where consistency in color, additives, or melt characteristics is critical. From standalone storage silos to fully integrated material handling systems, Meridian works with clients to engineer solutions around facility layouts, production goals, and material requirements.

Common Applications

  • Plastic pellet storage
  • Resin storage and handling
  • Additive and masterbatch storage
  • Plastic manufacturing facilities
DIAMETER EAVE HEIGHT HOPPER ANGLE ROOF DEGREE CUBIC FEET TONS (MT)
12 24 45 10 1962 36
12 32 45 10 2980 54
12 42 45 10 4111 75
12 48 45 10 4789 87
12 56 45 10 5694 103
12 60 45 10 6033 110
12 24 60 10 1788 32
12 32 60 10 2693 49
12 42 60 10 3824 69
12 48 60 10 4502 82
12 56 60 10 5407 98
12 60 60 10 5736 104



Standard Features

  • 45 or 60 cone degrees standard – custom angles available
  • All welded steel construction with no interior seams or bolts
  • Aluminum or Stainless Steel fill pipe with camlock and dust cap
  • Commercial grade fully sealed slide gates and butterfly valves – Pneumatic and electric actuators available
  • Custom flanges/ports/couplings provided for your equipment
  • Fully powder coated polyester exterior and interior – Epoxy and food grade approved coating available
  • Gravity blending cones
  • Vented manhole and optional PVR

Common Options (0 selected)

FAQ

Bulk storage can reduce packaging waste, decrease material handling requirements, improve inventory management, and help lower transportation costs by increasing storage capacity on-site.

Blending cones use gravity to help homogenize stored material during discharge. They are commonly used when maintaining consistency in color, additives, or material properties is important to the manufacturing process.

The enclosed skirted design provides protected space for blowers, piping, valves, and controls while helping shield equipment from environmental exposure and accidental damage.

Yes. Meridian can design silo systems to integrate with pneumatic conveying equipment, loading systems, processing equipment, and existing plant infrastructure.

Material flow characteristics, discharge design, blending requirements, and contamination control all influence product consistency. Meridian engineers each silo around the specific material being stored and the requirements of the manufacturing process.
