Big Capacity. Small Footprint.

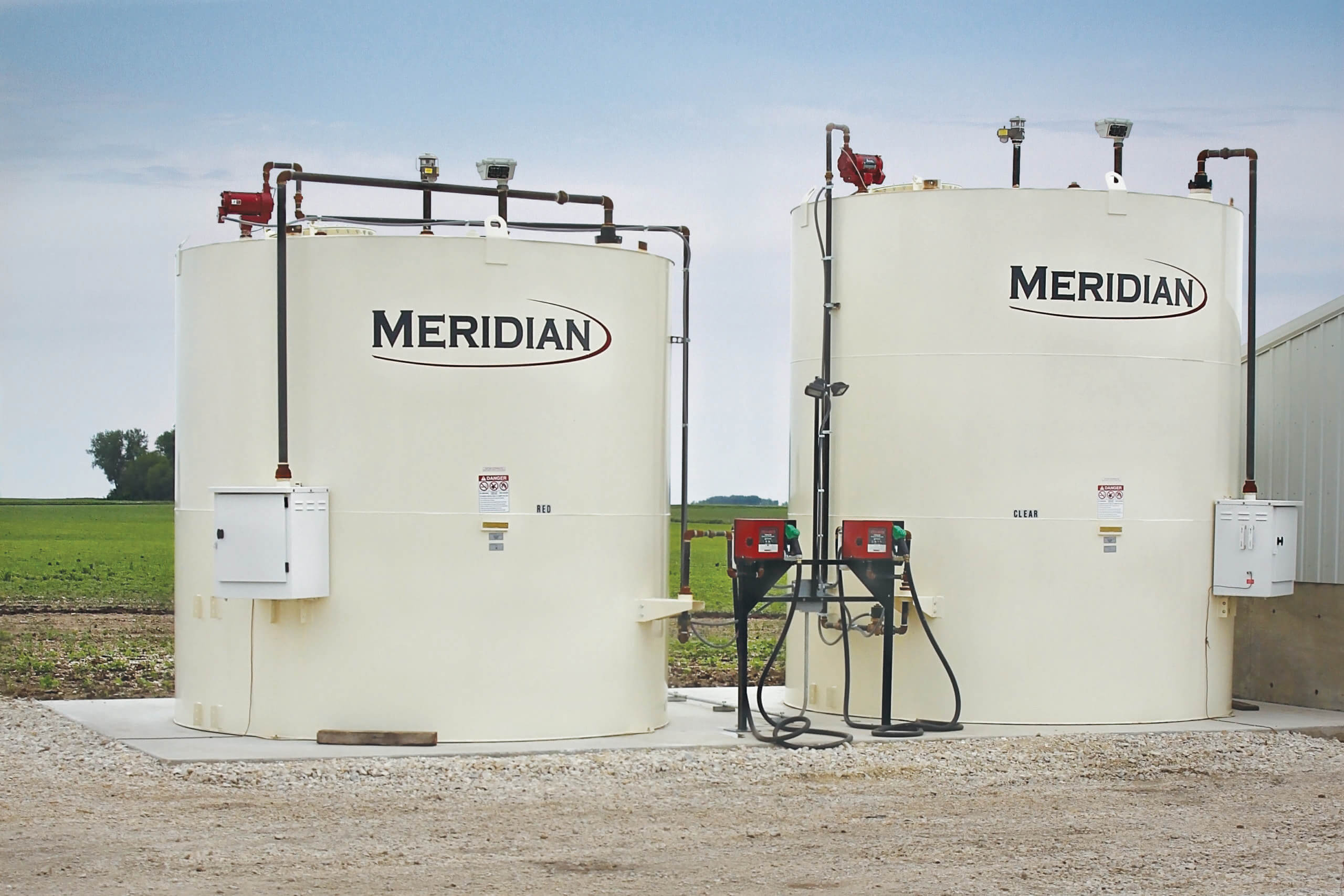

Meridian Vertical Fuel Tanks provide high-capacity fuel storage with a compact footprint for industrial, commercial, and fleet fueling applications. Designed for sites where space efficiency and reliable on-site fuel access are critical, vertical configurations maximize storage capacity while reducing the amount of ground space required.

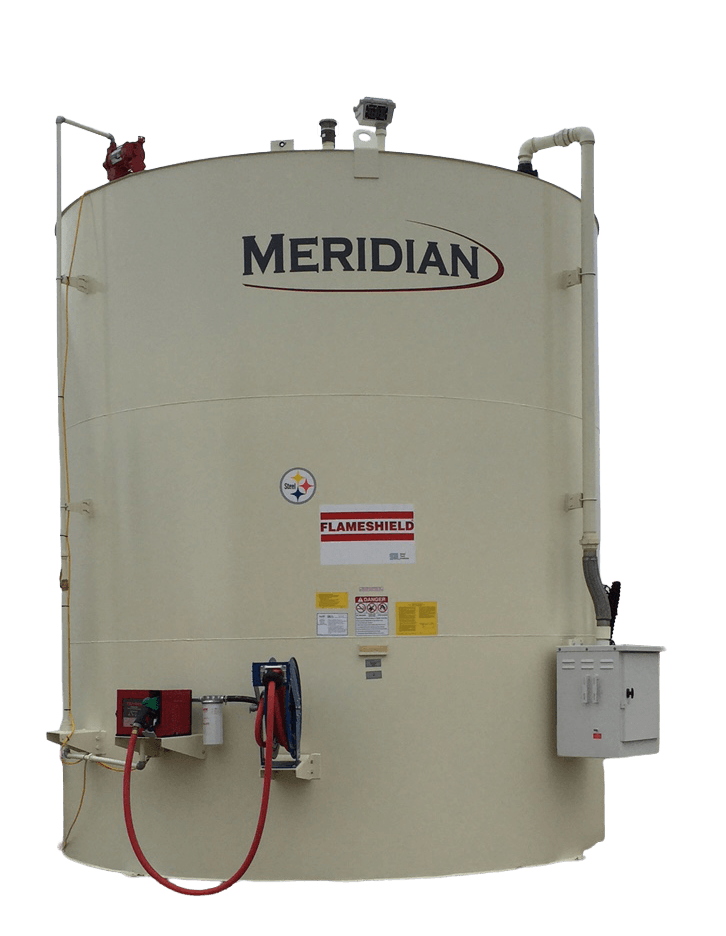

Available in both single wall and double wall configurations, Meridian Vertical Fuel Tanks are engineered to meet UL and ULC standards for safe, dependable fuel storage. Tanks are available in capacities up to 125,000L and can be configured with platforms, staircases, walkways, pump packages, hose reels, and other fueling system components to support site-specific operational requirements. Durable steel construction and corrosion-resistant premium coatings help ensure long-term performance in demanding operating environments.
Common Applications
- Fleet fueling systems
- Industrial facilities
- Construction and infrastructure projects
- Backup fuel storage
Vertical Double and Single wall Tanks
| VOLUME (GALLONS) | DIAMETER | EVE HEIGHT | WEIGHT (LBS) |
| DOUBLE WALL TANKS | |||
| 8,500 | 12’ | 11’ | 9,875 |
| 10,000 | 12’ | 13’ | 11,040 |
| 12,000 | 12’ | 15’ | 12,170 |
| 15,000 | 14’ | 15’ | 14,275 |
| SINGLE WALL TANKS | |||
| 10,000 | 12’ | 13’ | 6,025 |
| 12,000 | 12’ | 15’ | 6,610 |
| 15,000 | 12’ | 19’ | 7,800 |
| 20,000 | 13’ 6’’ | 20’ | 9,490 |
| 25,000 | 13’ 6’’ | 25’ | 11,035 |
| 30,000 | 13’ 6’’ | 30’ | 12,675 |
Standard Features
- Additional Spare Fittings
- Heavy Gauge Steel Construction
- Lifting Lugs
- Premium Powder-Coat Finish
- Primary & Secondary Emergency Vents
- Secondary Containment (double wall tanks only)
- UL-142 Certified
