Modular Build. Massive Capacity.

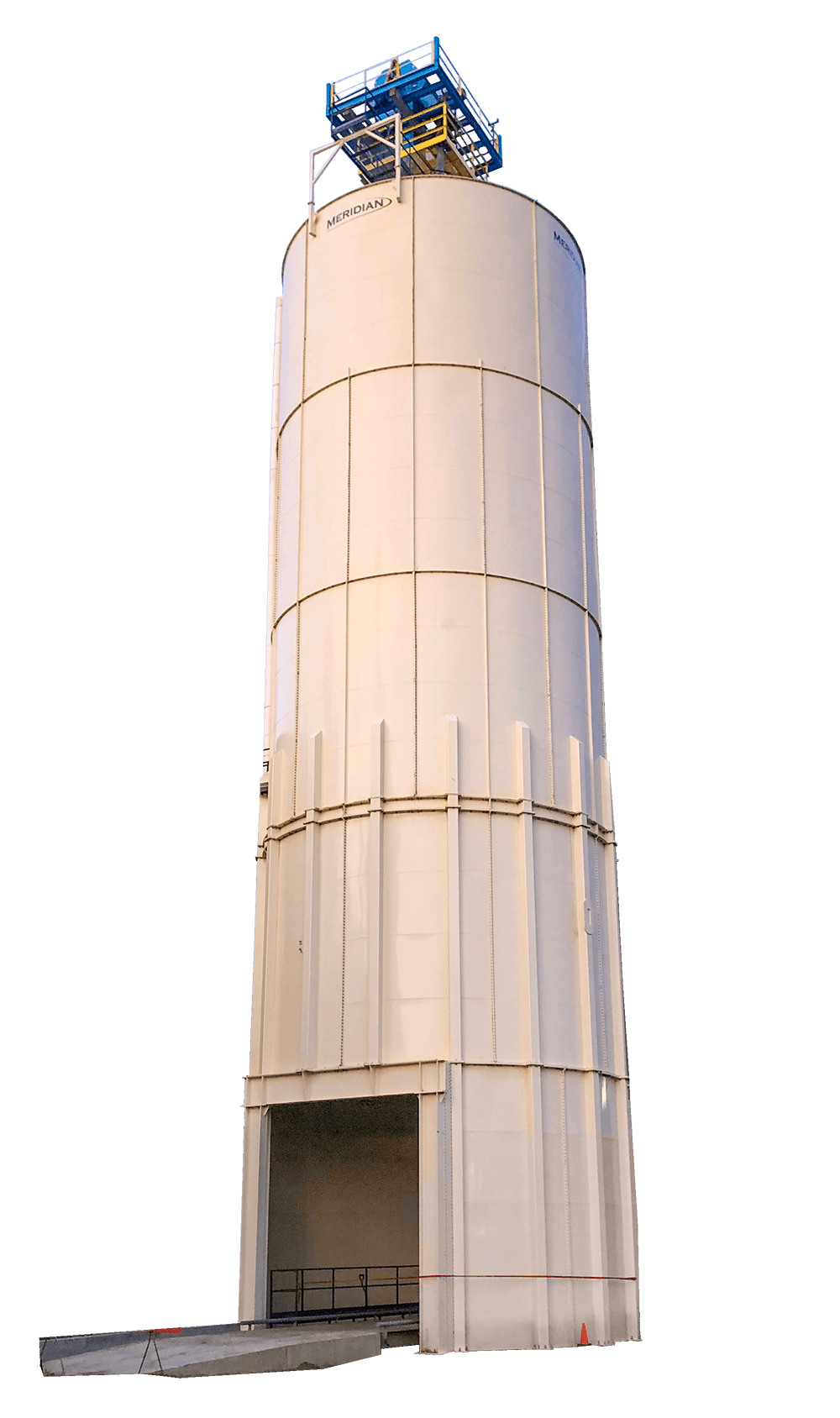

Meridian Manufacturing: Bolt Together Silos

Meridian Bolt-Together Storage Silos are designed for high-capacity bulk material storage in locations where transportation, site access, or installation constraints limit the use of fully welded silos. Modular construction allows large storage systems to be delivered in sections and assembled on-site, making them a practical solution for remote facilities, expansion projects, and challenging installation environments.

Engineered for industrial bulk material handling applications, Meridian Bolt-Together Silos are available in multiple diameters and storage capacities to support a wide range of operational requirements. Sectional panel construction simplifies transportation and site assembly while maintaining the strength and durability required for demanding industrial environments. Corrosion-resistant premium coatings and customizable configurations help ensure long-term performance across a variety of storage applications.

Common Applications

Frac sand storage
Mining facilities
Remote site storage installations
High-capacity material handling systems

Models Specifications

Model	Diameter	Cubic Feet	Imp. Tons	Metric Tons
BTS-2340	23’	18,810	893	811
BTS-3040*	30.5’	34,811	1,654	1,500
BTS-3060*	30.5’	49,480	2,350	2,132

Standard Features

10 Year Structural Warranty
Engineer Designed for Sand up to 115 lbs./cu ft
Powder Coat Finish
Various sizes up to 375 Imp.

Benefits

Modular Panel Design | Panels ship flat to simplify logistics and allow for on-site assembly in difficult-to-access locations.
Durable Construction | Built from high-gauge powder-coated steel for superior weather and corrosion resistance.
Engineered Strength | Rigid panel design and full perimeter reinforcement ensure high-load capacity and long service life.
Large Capacity Options | Designed for high-volume operations, with custom sizing and height configurations available.
Adaptable Applications | Ideal for grain, feed, dry fertilizer, and a variety of dry flowable products.

FAQ

Modular construction simplifies transportation, improves access to difficult installation sites, and allows larger storage capacities without the shipping limitations of fully assembled silos.

Yes. These silos are specifically suited for remote or difficult-access sites where transportation and installation flexibility are critical and capacity requirements require larger welded silos than can be transported using traditional means.

Meridian Bolt-Together Silos are shipped in modular sections for efficient transportation and assembled on-site by qualified installation crews, cranes, and other heavy equipment. This approach allows large-capacity silos to be installed in locations that may not accommodate fully welded units.

Bolt-together silos are often the preferred solution when storage capacity requirements exceed transportation limits for welded silos, or when projects involve remote locations, restricted site access, or challenging delivery logistics.
