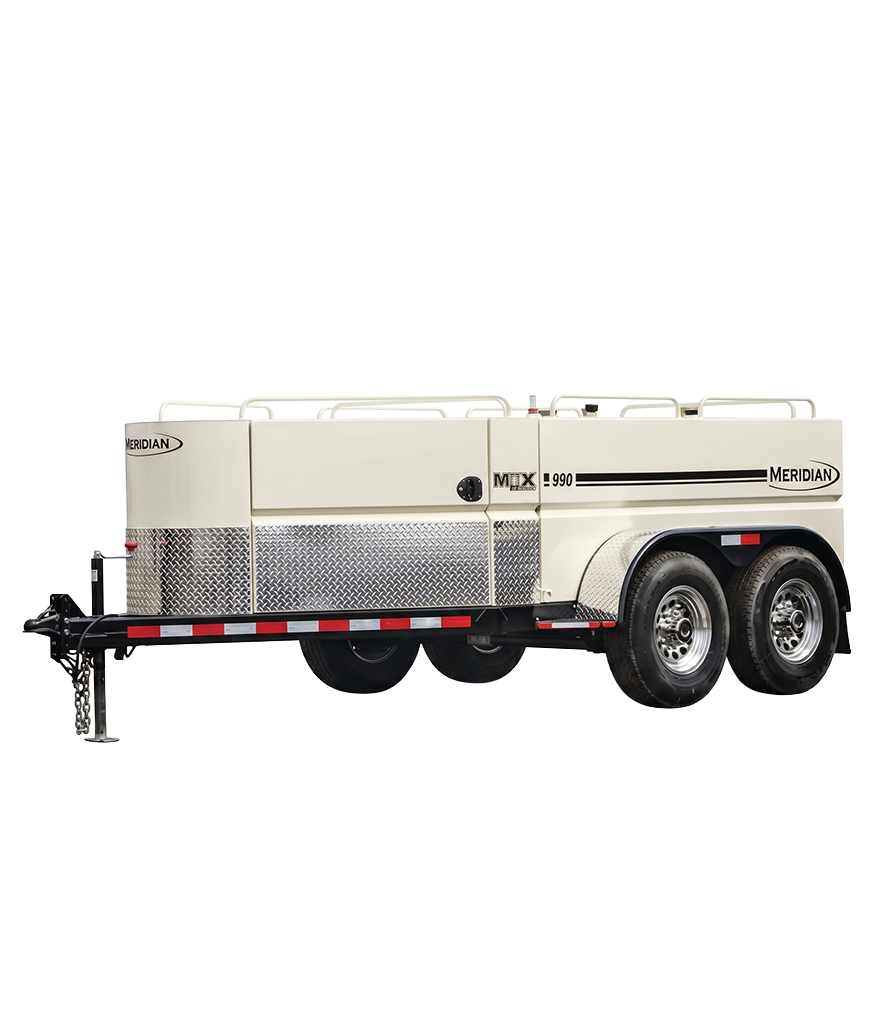

Fuel Trailers
Keeping equipment fueled and productive is critical when operations are spread across large jobsites, farms, or remote locations. Meridian Fuel Trailers provide a safe and convenient way to transport fuel and DEF directly to equipment, helping reduce downtime and eliminate unnecessary trips back to a fueling station.
Designed for both agricultural and commercial applications, Meridian Fuel Trailers combine fuel storage, mobility, and efficient dispensing in a single solution. From fueling construction equipment and truck fleets to supporting planting and harvest operations, these trailers help keep machines working where they are needed most. Select models can also be equipped with integrated service equipment, allowing crews to fuel, maintain, and support equipment directly in the field or on the jobsite.
Common Applications
- Mobile fueling for agricultural equipment during planting and harvest
- Construction, road building, and heavy equipment jobsites
- Fleet maintenance and field service operations
Please note that Meridian Fuel Trailers are only available in the U.S.
Fuel Trailers
| Model | Tank | Dimensions | Axle Configuration | Base Weight |
| 520 | 520 Gallons (single baffle) | 12’4” L x 7’9” W x 4’10” H | Tandem 3,500 lb | 1,600 lbs |
| 990 | 990 Gallons (triple baffle) | 15’10” L x 8’3” W x 5’5” H | Tandem 7,000 lb | 3,900lbs |
Common Features (0 features)
520 Bare Model
520 Basic
520 Ultra
990 Bare Model
990 12V Pump Package
990 MAX Edition
990 Service Max 2
Interested in this product? Select any options or model, if available, and click Request Information. We'll follow up with the information you need.
