Gentle and Clean Handling

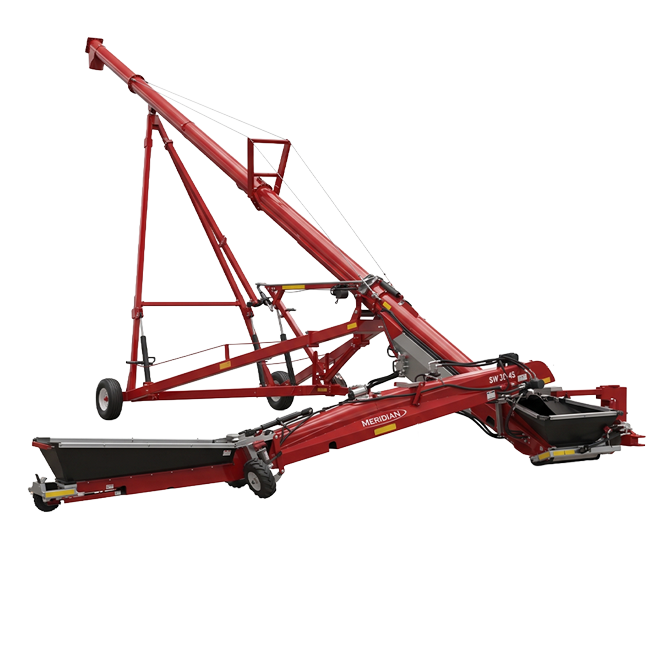

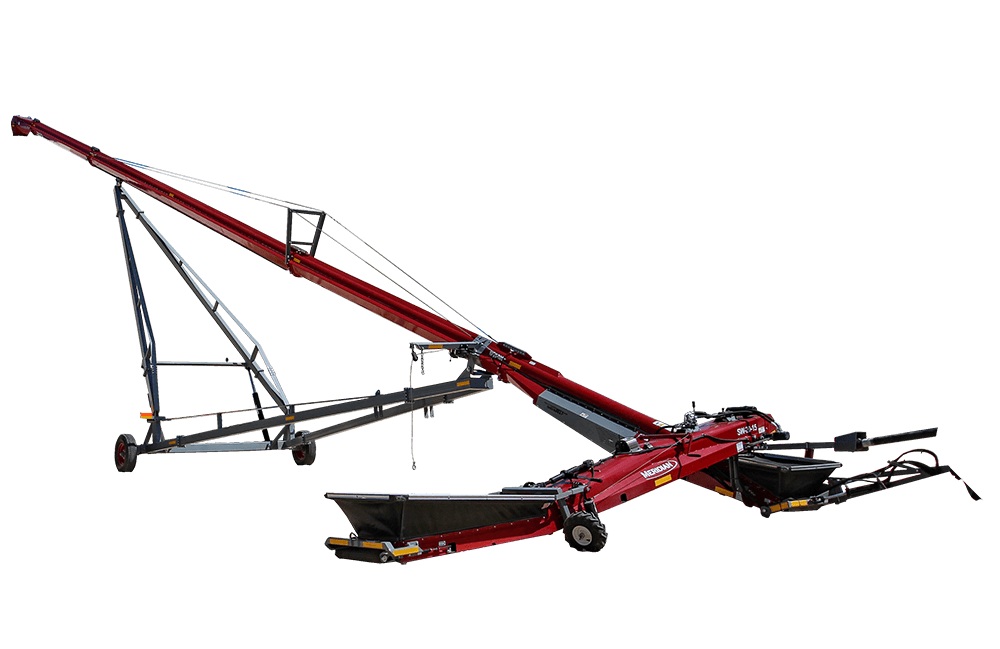

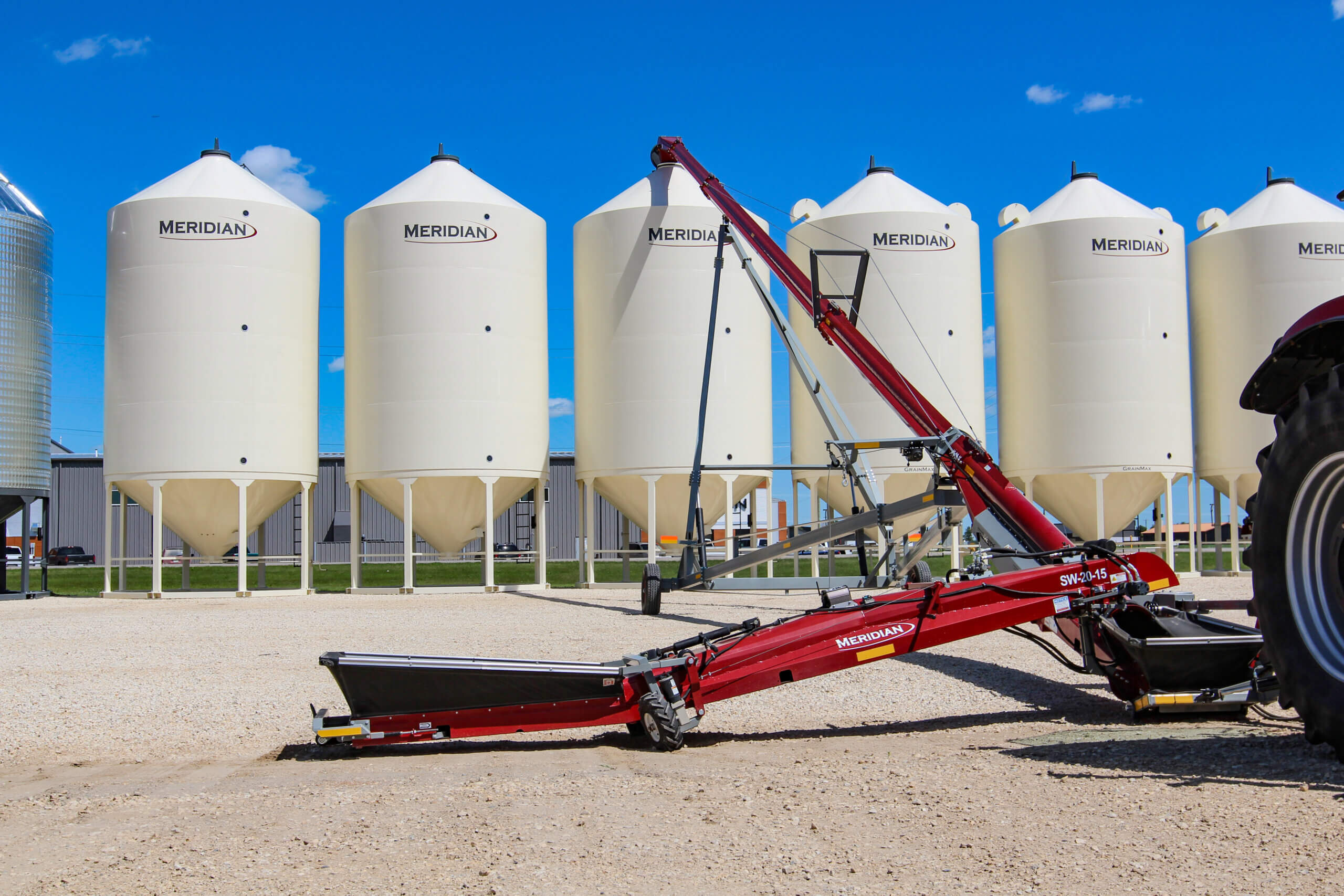

Looking to speed up your bin filling process while minimizing mess? Look no further than our Meridian Bin Fill Belt Conveyor! It’s the solution you’ve been searching for.
Featuring a 20” Chevron belt enclosed in a 10” tube, these conveyors boast a smart low tension ”S” belt drive system that molds the belt perfectly to the conveyor’s contours. Plus, you can get the options you want. Choose from lengths up to 120′ and pick between PTO or electric drive.

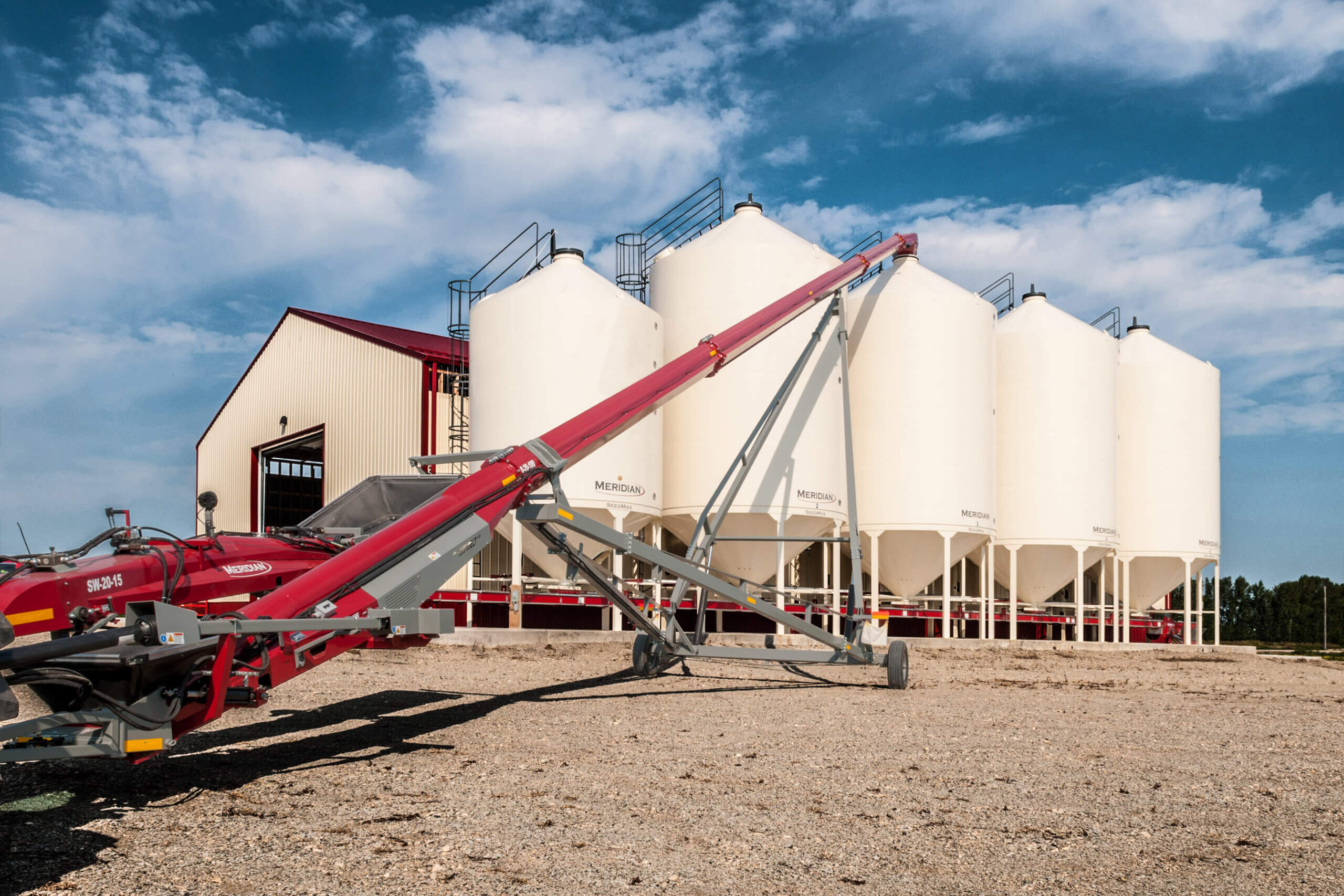

With Meridian Bin Fill Conveyors, efficiency gets a whole new meaning. They handle your grain and seed with speed and care, ensuring your operation runs smoothly.

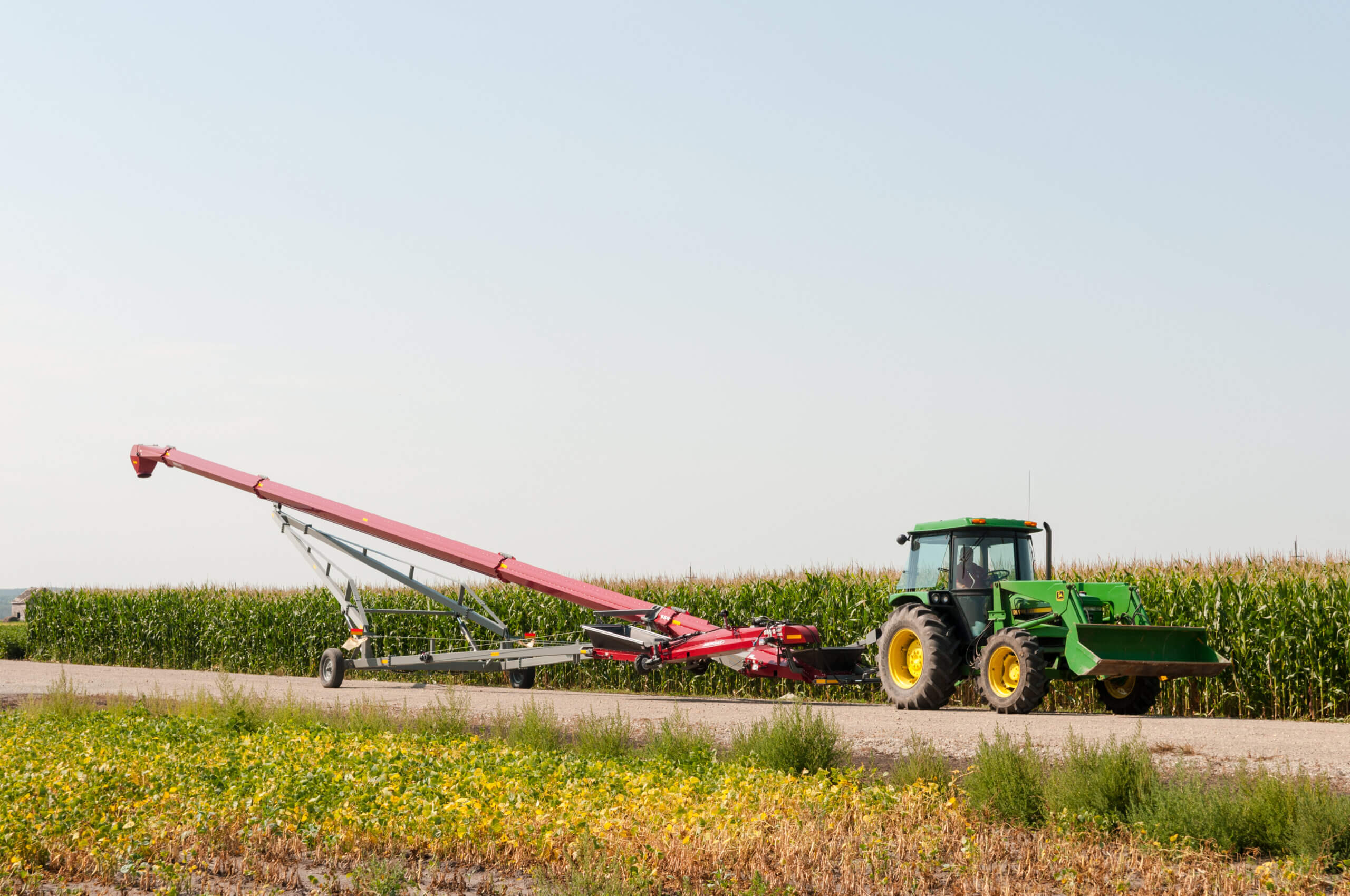

Dimensional Specifications: 20-Series Belt Conveyors
| Measurement Parameter | Transport (HD Hitch) | Transport (Std) | 25° Incline | Fully Raised |
|---|---|---|---|---|
| Model 20-80 | ||||
| 20-80 Discharge Height | 10′-6″ (320cm) | 11′-9″ (358cm) | 34′-6″ (1052cm) | 46′-0″ (1402cm) |
| 20-80 Frame Height | 7′-9″ (263cm) | 8′-9″ (267cm) | 32′-0″ (975cm) | 43′-6″ (1326cm) |
| 20-80 Axle to Discharge Reach | 7′-6″ (228cm) | 8′-3″ (251cm) | 23′-6″ (716cm) | 27′-0″ (823cm) |
| 20-80 Hitch to Axle Distance | 16′-6″ (503cm) | 16′-6″ (503cm) | 21′-6″ (655cm) | 26′-0″ (792cm) |
| 20-80 Total Length | 41′-0″ (1249cm) | 41′-0″ (1249cm) | 28′-6″ (1173cm) | 36′-6″ (1123cm) |
| Model 20-90 | ||||
| 20-90 Discharge Height | 11′-6″ (351cm) | 12′-6″ (381cm) | 38′-6″ (1173cm) | 51′-6″ (1570cm) |
| 20-90 Frame Height | 8′-9″ (267cm) | 10′-0″ (305cm) | 36′-6″ (1123cm) | 46′-0″ (1402cm) |
| 20-90 Axle to Discharge Reach | 7′-6″ (229cm) | 8′-0″ (244cm) | 23′-6″ (716cm) | 27′-0″ (823cm) |
| 20-90 Hitch to Axle Distance | 26′-6″ (808cm) | 26′-6″ (808cm) | 30′-6″ (930cm) | 49′-0″ (1493cm) |
| 20-90 Total Length | 41′-0″ (1250cm) | 41′-0″ (1250cm) | 38′-6″ (1173cm) | 37′-0″ (1128cm) |
| Model 20-110 | ||||
| 20-110 Discharge Height | 10′-9″ (327cm) | 12′-0″ (366cm) | 47′-0″ (1433cm) | 61′-6″ (1874cm) |
| 20-110 Frame Height | 7′-10″ (239cm) | 9′-3″ (282cm) | 44′-6″ (1356cm) | 59′-0″ (1798cm) |
| 20-110 Axle to Discharge Reach | 7′-0″ (213cm) | 7′-9″ (236cm) | 28′-0″ (853cm) | 31′-6″ (960cm) |
| 20-110 Hitch to Axle Distance | 31′-10″ (970cm) | 31′-10″ (970cm) | 39′-0″ (1189cm) | 44′-0″ (1341cm) |
| 20-110 Total Length | 51′-6″ (1569cm) | 51′-6″ (1569cm) | 48′-0″ (1463cm) | 45′-0″ (1372cm) |
| Model 20-120 | ||||
| 20-120 Discharge Height | 11′-3″ (343cm) | 12′-6″ (381cm) | 51′-0″ (1554cm) | 67′-6″ (2057cm) |
| 20-120 Frame Height | 8′-6″ (259cm) | 9′-9″ (297cm) | 48′-6″ (1478cm) | 65′-0″ (1981cm) |
| 20-120 Axle to Discharge Reach | 7′-9″ (236cm) | 8′-6″ (259cm) | 32′-0″ (975cm) | 36′-6″ (1113cm) |
| 20-120 Hitch to Axle Distance | 29′-6″ (899cm) | 29′-6″ (899cm) | 38′-0″ (1158cm) | 44′-6″ (1356cm) |
| 20-120 Total Length | 59′-6″ (1814cm) | 59′-6″ (1814cm) | 55′-6″ (1692cm) | 51′-6″ (1570cm) |
Additional Unified Parameters
| Parameter | Description | Value |
|---|---|---|
| Intake Clearance | Vertical clearance at intake | Raised: 23″ (58cm) / Lowered: 10″ (25cm) |
| Axle Width | Overall width of the wheel carriage | Models 80/90: 12′-6″ (381cm) Models 110/120: 14′-0″ (472cm) (Retracted) / 18′-0″ (549cm) (Extended) |
| Ground Reach | Horizontal distance to ground contact point | Dependent on incline and model |
Standard Features
- Collapsible hopper intake
- Adjustable discharge spout
- Heavy duty undercarriage
- 4-way hydraulic swing hitch
Advantages
- Powder Coat Finish | Meridian’s powder coat finish outlasts liquid paint options
- Unique Hopper Design | Meridian’s hopper design minimizes leakage and maximizes capacity
- Sizes and Options | Up to 120’ lengths available in electric or PTO drive
