Meridian Ammonium Nitrate Silos

Meridian Manufacturing: Ammonium Nitrate Silos

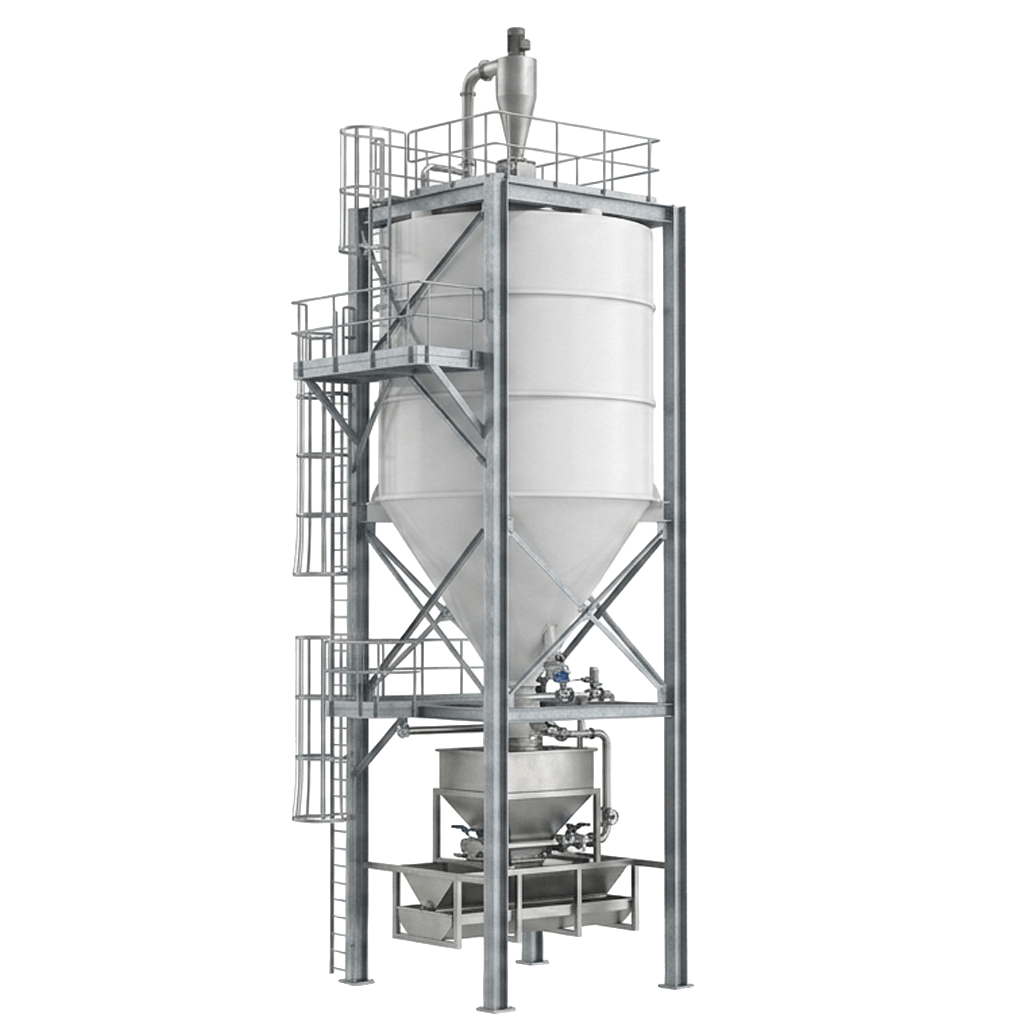

Meridian Ammonium Nitrate Storage Silos are engineered specifically for the safe storage and handling of ammonium nitrate in mining and explosives applications. Designed to protect product integrity and support reliable material flow, each silo is customized to the unique requirements of the site, operating environment, local regulations, and storage process.

Smoothwall construction promotes consistent discharge while helping reduce material buildup and contamination risks associated with conventional storage designs. Fully welded construction, durable steel fabrication, and corrosion-resistant premium coatings provide long-term performance in demanding mining environments. Meridian works closely with customers to engineer silo systems that integrate with site operations, including load-out systems, access structures, monitoring equipment, and process-specific material handling requirements.

Common Applications

Ammonium nitrate storage
Bulk explosive manufacturing facilities
Mining operations
Blasting agent production and distribution

Model	Diameter	Cubic Feet	Imp. Tons	Metric Tonnes	Bin Height
45° Hopper Angle
1205	12’	947	29	26	16′-8″
1208	12’	1,288	40	36	19′-8″
1210	12’	1,514	47	43	21′-8″
1212	12’	1,740	54	49	23′-8″
1215	12’	2,080	64	58	26′-8″
1220	12’	2,647	79	72	31’-9”
1225	12’	3,212	97	88	36’-9”
1230	12’	3,777	115	104	41’-9”
1310	13’	1,816	53	48	22’-6”
1312	13’	2,082	61	55	24’-6”
1315	13’	2,480	74	67	27’-6”
1317	13’	2,745	82	74	29’ 6”
1320	13’	3,144	94	85	32’-6”
1322	13’	3,409	103	93	34’ 6”
1325	13’	3,807	115	104	37’-6”
1330	13’	4,471	136	123	42’-6”
1335	13’	5,135	155	141	47’-6”
1410	14’	2,145	66	60	23′-4″
1412	14’	2,452	76	68	25′-4″
1415	14’	2,913	90	81	28′-4″
1417	14’	3,220	99	90	30′-4″
1420	14’	3,681	114	103	33′-4″
40° Hopper Angle
1205	12’	913	28	25	15’ 8”
1208	12’	1,252	39	35	18’ 8”
1210	12’	1,478	46	42	20’ 8”
1212	12’	1,704	53	48	22’ 8”
1215	12’	2,044	63	57	25’ 8”
1217	12’	2,270	70	64	27’ 8”
1220	12’	2,609	81	73	30’ 8”
1410	13’ 6”	1,926	60	54	21’ 9”
1412	13’ 6”	2,213	69	63	23’ 9”
1415	13’ 6”	2,642	82	74	26’ 9”
1417	13’ 6”	2,928	91	83	28’ 9”
1420	13’ 6”	3,358	104	94	31’ 9”
1425	13’ 6”	4,073	126	114	36’ 9”
1430	13’ 6”	4,790	147	133	41’ 9”
1435	13’ 6”	5,506	169	153	46’ 9”
15(6)10	15’ 6”	2,636	82	74	23’ 9”
15(6)12	15’ 6”	3,013	93	85	25’ 9”
15(6)15	15’ 6”	3,580	111	101	28’ 9”
15(6)17	15’ 6”	3,957	123	111	30’ 9”
15(6)20	15’ 6”	4,523	140	127	33’ 9”
15(6)25	15’ 6”	5,466	169	154	38’ 9”
15(6)30	15’ 6”	6,410	199	180	43’ 9”
1610	16’	2,830	87	79	23′-11″
1612	16’	3,231	100	90	25′-11″
1615	16’	3,833	118	107	28′-11″
1617	16’	4,235	131	119	30′-11″
1620	16’	4,835	149	136	33′-11″
1625	16’	5,837	180	164	38′-11″
1630	16’	6,839	212	192	43′-11″
1810	18’	3,712	115	104	25′-6″
1815	18’	4,981	154	140	30′-6″
1820	18’	6,250	193	175	35′-7″
1825	18’	7,520	233	211	40′-6″
1830	18’	8,789	272	247	45′-6″

Not all models are available in all locations.

Standard Features

Delivered and setup for immediate use.
High quality construction in carbon steel and stainless steel
Superior powder coat finish

Common Options (0 selected)

Auger boot various sizes and degrees
Ladder and cage fall arrest cable
Manhole
Poke Hole
Roof ladder handrails
Skid base or on a loadout structure.
SS Slide gate

FAQ

Yes. Each ammonium nitrate storage project is engineered around the material, operating environment, and site requirements, with options for access structures, monitoring systems, load cells, and material handling equipment.

Fully welded construction helps minimize areas where material can accumulate while protecting stored product from environmental exposure and contamination.
