Meridian manufcturingBolt Together Silos

Meridian Bolt Together Silos

Meridian Manufacturing: Bolt Together Silos

Available Downloads

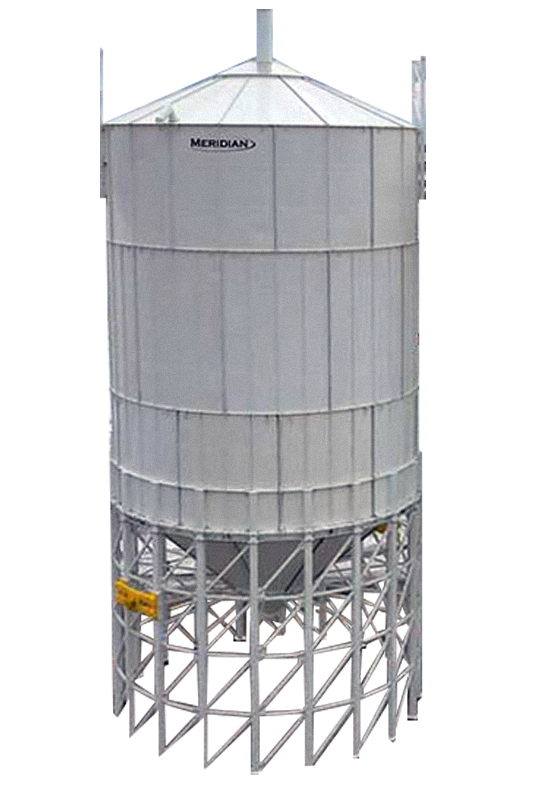

Meridian Bolt Together Silo

Meridian Bolt-Together Storage Silos are designed for high-capacity bulk material storage in locations where transportation, site access, or installation constraints limit the use of fully welded silos. Modular construction allows large storage systems to be delivered in sections and assembled on-site, making them a practical solution for remote facilities, expansion projects, and challenging installation environments.

Engineered for industrial bulk material handling applications, Meridian Bolt-Together Silos are available in multiple diameters and storage capacities to support a wide range of operational requirements. Sectional panel construction simplifies transportation and site assembly while maintaining the strength and durability required for demanding industrial environments. Corrosion-resistant premium coatings and customizable configurations help ensure long-term performance across a variety of storage applications.

Common Applications

Frac sand storage
Mining facilities
Remote site storage installations
High-capacity material handling systems

MODEL	DIAMETER	CUBIC FEET
23′ Diameter
BTS-2340-60	23’	20,100
BTS-2360-60	23’	28,420
27′ Diameter
BTS-2740-45	27’	26,670
BTS-2760-45	27′	38,120
30′ Diameter
BTS-3040-45	30’	33,450
BTS-3060-45	30’	47,590
38′ Diameter
BTS-3850-45	38’	67,230

Common Features (0 features)

10-Year Structural Warranty
Engineer Designed for Sand up to 115lbs/cu. ft.
Premium Powder Coat Finish

Common Options (0 selected)

Catwalks
Stairs
Drive-thru

FAQ

Modular construction simplifies transportation, improves access to difficult installation sites, and allows larger storage capacities without the shipping limitations of fully assembled silos.

Yes. These silos are specifically suited for remote or difficult-access sites where transportation and installation flexibility are critical and capacity requirements require larger welded silos than can be transported using traditional means.

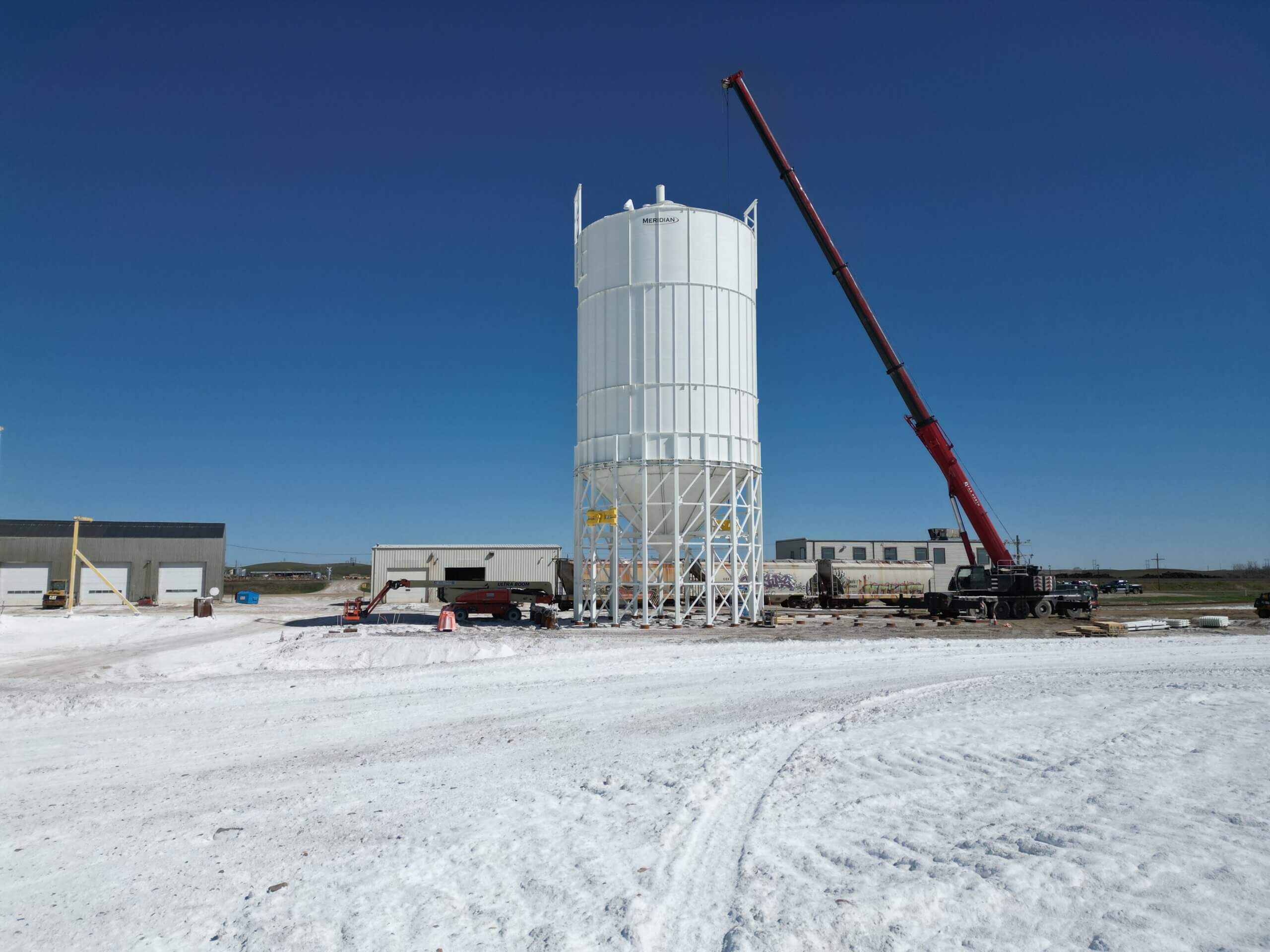

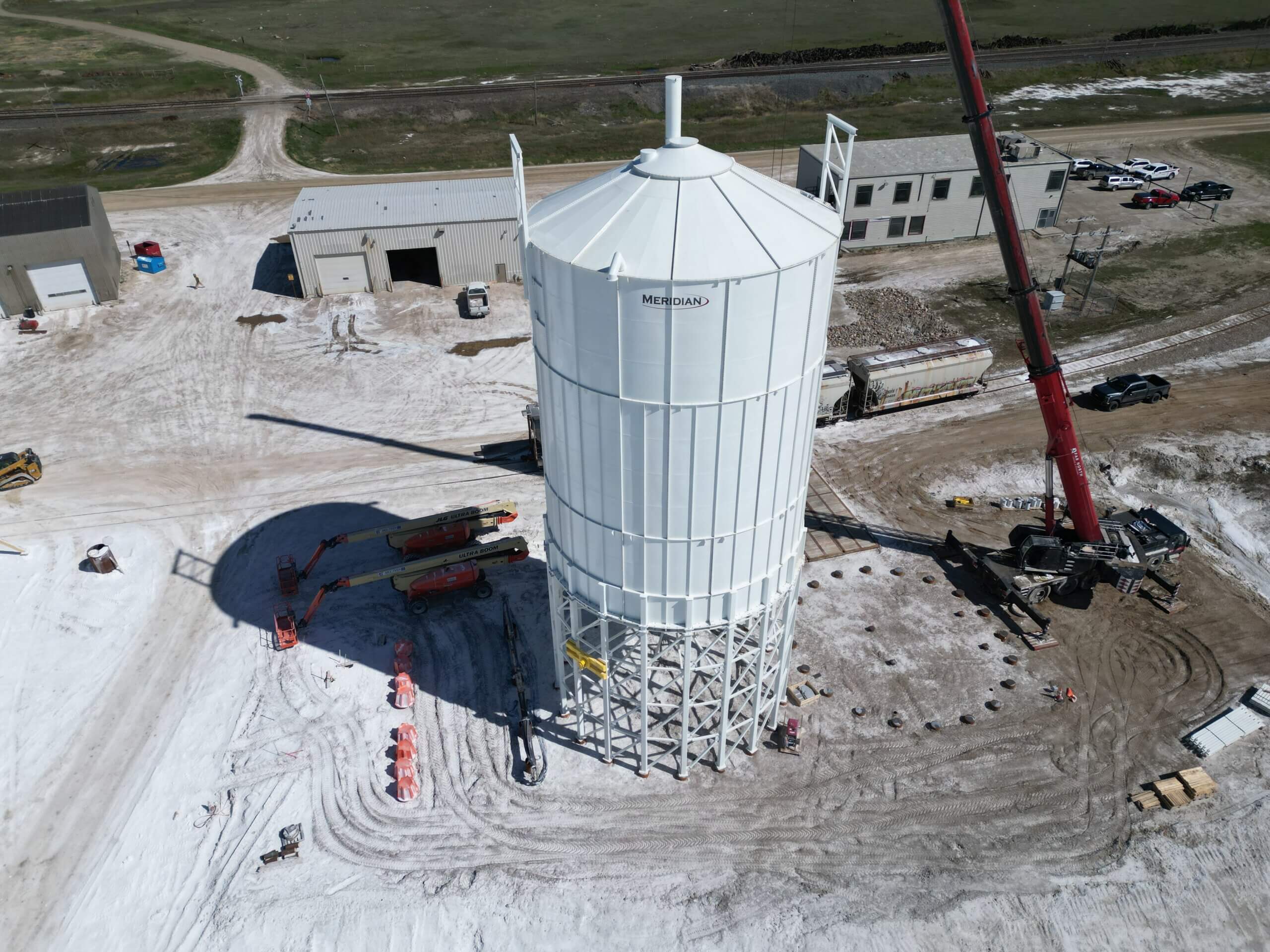

Meridian Bolt-Together Silos are shipped in modular sections for efficient transportation and assembled on-site by qualified installation crews, cranes, and other heavy equipment. This approach allows large-capacity silos to be installed in locations that may not accommodate fully welded units.

Bolt-together silos are often the preferred solution when storage capacity requirements exceed transportation limits for welded silos, or when projects involve remote locations, restricted site access, or challenging delivery logistics.
