Meridian manufcturingOn-Farm Horizontal Fuel Tanks

Meridian On-Farm Horizontal Fuel Tanks

Meridian sells through a network of Authorized dealers. If no dealer is selected, we will reach out with more information
Meridian Manufacturing: On-Farm Horizontal Fuel Tanks

Available Downloads

Reliable fuel storage starts with choosing the right tank for your operation. Meridian Horizontal Fuel Tanks are available in two product lines: the Horizontal Double Wall Fuel Tank for producers looking for maximum capacity and a wide range of options, and the Econo Double Wall Fuel Tank for those seeking dependable, ULC-approved fuel storage at an economical price point.

Both product lines provide double-wall construction with 100% secondary containment and are built to help protect your fuel investment while supporting safe, reliable on-farm storage. The Horizontal Double Wall series is available in capacities from 2,300 L to 100,000 L and offers a broad selection of turnkey options, including pumps, hose reels, meters, and accessories. The Econo Double Wall series provides the same dependable double-wall protection in a simplified package that’s ideal for producers looking to add or expand fuel storage while managing their investment. Both feature Meridian’s premium exterior finish for long-lasting durability in demanding farm environments and are designed to keep your operation fueled and ready when work needs to get done.

Canadian Horizontal Fuel Tanks

Model Volume Diameter Length Weight

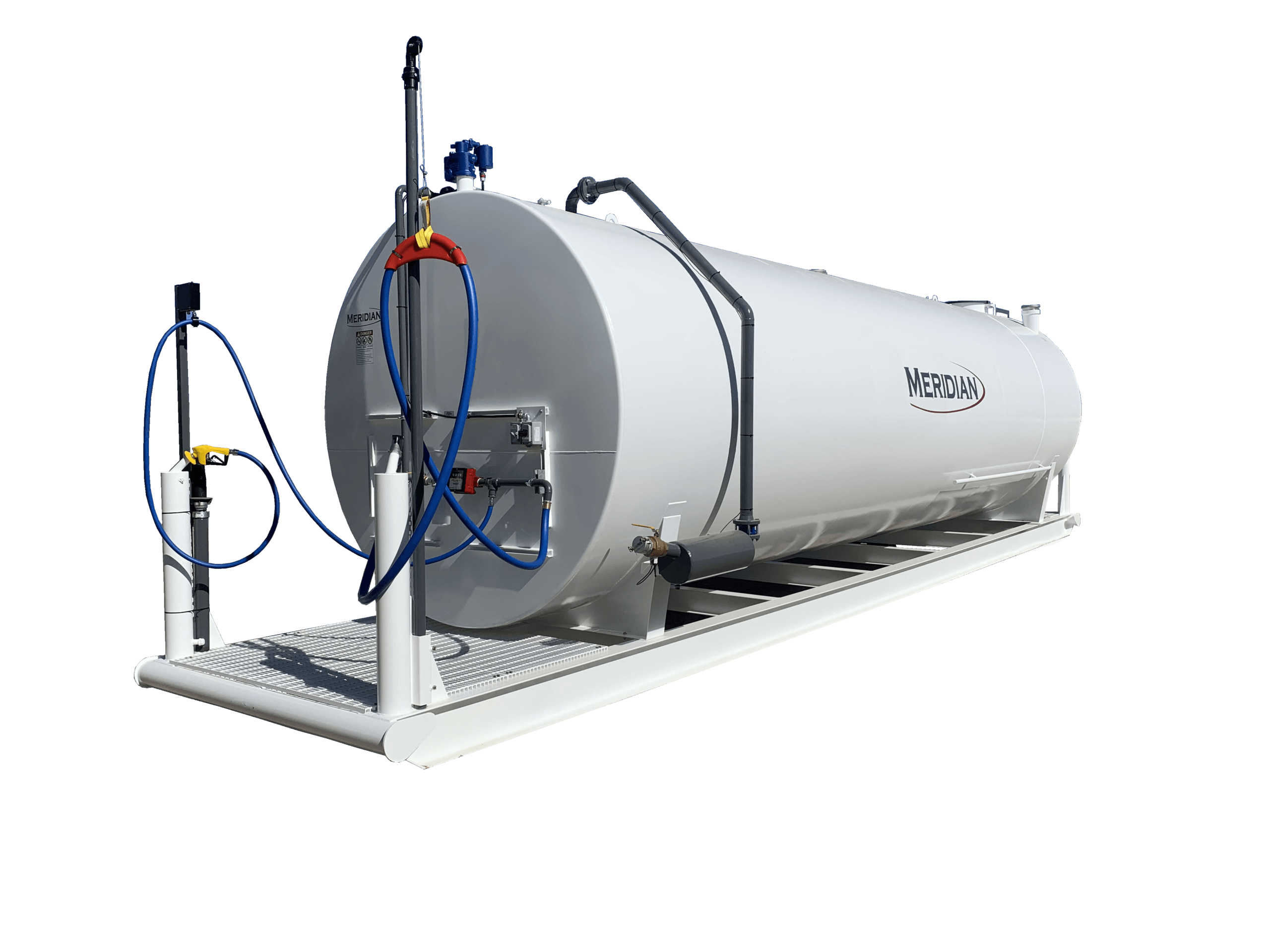

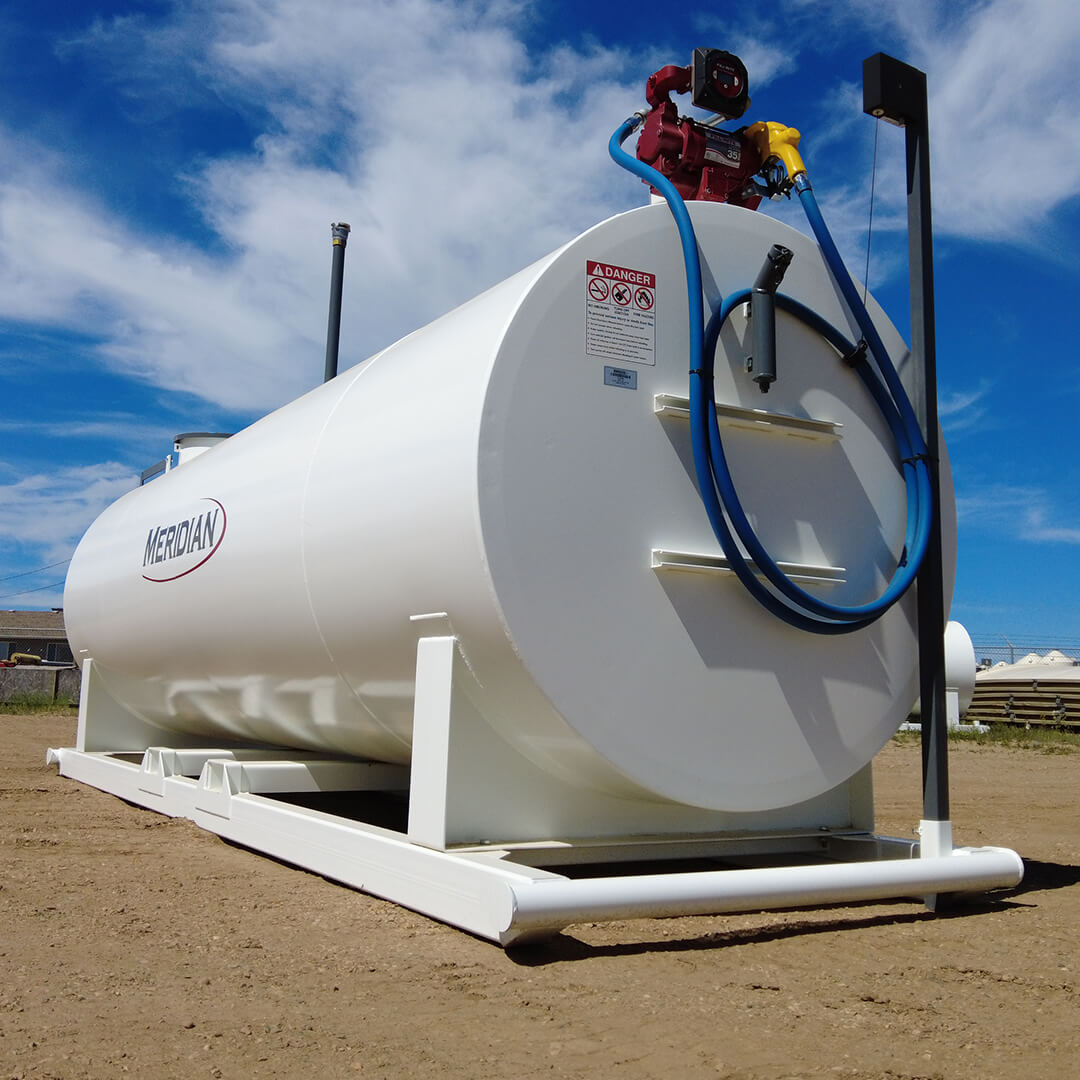

Horizontal Double Wall Fuel Tanks
MDW-2300 2,310L 51″ 7’5″ 601kg | 1325lb
MDW-4595
(70/30 Split)		 3,241L/1,351L 51″ 13’4″ 978kg | 2156lb
MDW-4600 4,607L 51″ 13’4″ 928kg | 2046lb
MDW-10000 9,972L 64″ 18’9″ 2,021kg | 4456lb
MDW-15000 14,900L 90″ 19’5″ 4,190kg | 9237lb
MDW-25000 24,890L 90″ 27’8″ 5,373kg | 11845lb
MDW-35000 38,846L 90″ 36’4″ 7,860kg | 17328lb
MDW-50000 50,015L 119″ 31’5″ 9,422kg | 20772lb
MDW-65000 65,100L 119″ 36’0″ kg | 0lb
MDW-75000 75,800L 119″ 43’6″ kg | 0lb
MDW-100000 100,000L 127″ 49’6″ 12,756kg | 28122lb

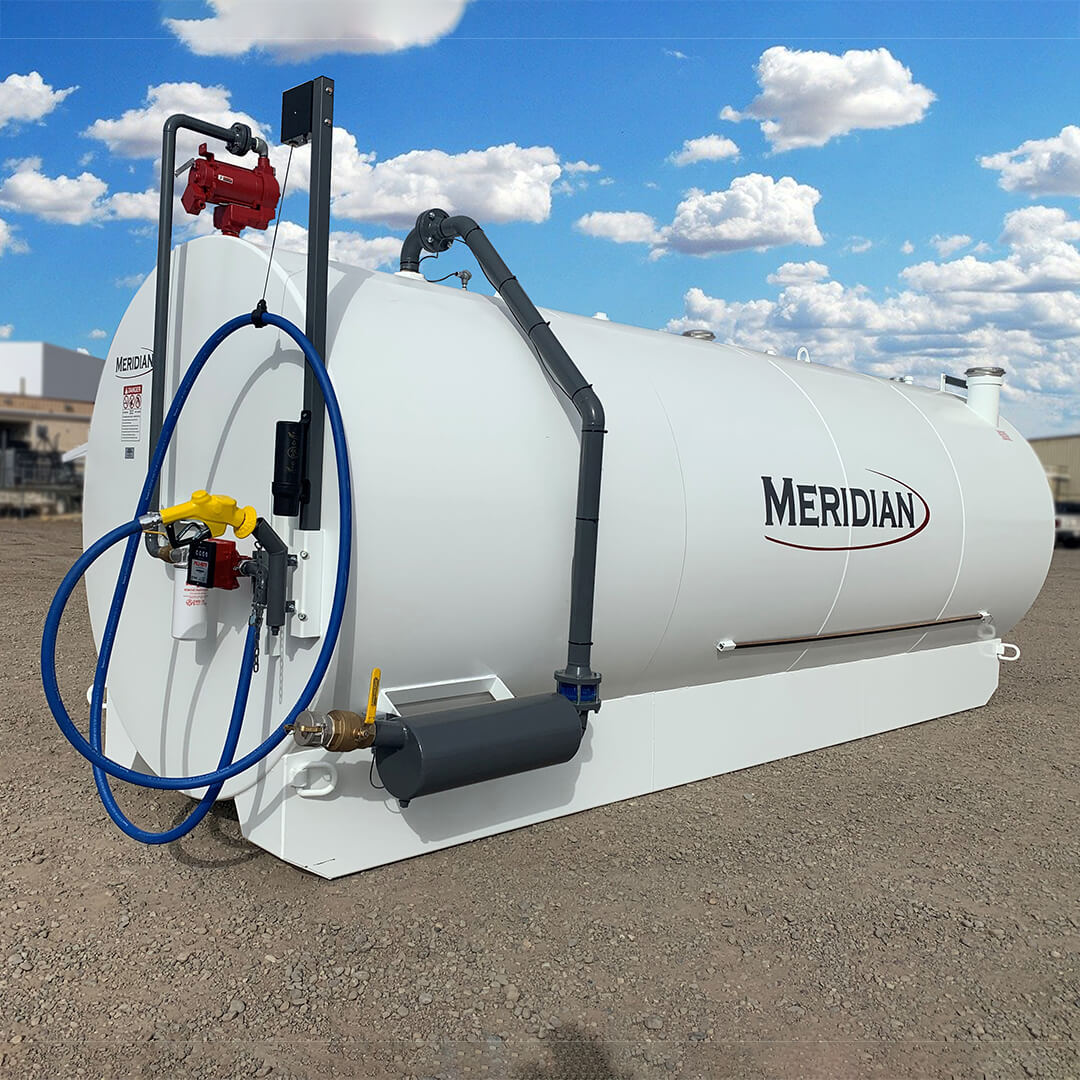

Econo Horizontal Double Wall Fuel Tanks
EDW-15000 14,900L 90″ 12’5″ 3,197kg | 7048lb
EDW-25000 24,890L 90″ 20’8″ 4,244kg | 9356lb
EDW-35000 35,051L 90″ 29’4″ 5,445kg | 12004lb

U.S. Horizontal Fuel Tanks

Item# Volume Diameter Length Weight
Horizontal Double Wall Fuel Tanks
64041 500US gal 48″ 6′ 5″ 885lb
64042 1,000US gal 64″ 6′ 5″ 1,750lb
64043 2,000US gal 64″ 12′ 6″ 3,390lb
64057 4,000US gal 76″ 20′ 6,130lb
64058 4,000US gal
75/25 split		 76″ 20′ 6,940lb
64060 5,000US gal 76″ 22′ 7,100lb
64059 5,000US gal
80/20 split		 76″ 22′ 7,915lb
37148 8,500US gal 10′ 15′ 12,625lb
64085 10,000US gal 10′ 18′ 14,185lb
64073 12,000US gal 10′ 22′ 16,250lb
64074 15,000US gal 10′ 26′ 18,840lb
Horizontal Single Wall Fuel Tanks
60629 560US gal 48″ 74″ 510lb
60630 1,000US gal 64″ 74″ 716lb
60631 2,000US gal 64″ 148″ 1,225lb
Econo Horizontal Double Wall Tanks are not available in the U.S. 50/50, 60/40, and 70/30 split available on select models. Horizontal Single Wall Tanks are not available in Canada

Common Features (0 features)

Canadian Horizontal Double Wall Tanks

Canadian Econo Horizontal Double Wall Tanks

U.S. Horizontal Double Wall Fuel Tanks

U.S. Horizontal Single Wall Fuel Tanks

Common Options (0 selected)

Canadian Horizontal Double Wall Tanks

  • Optional fork lift pockets & bollards

Canadian Econo Horizontal Double Wall Tanks

U.S. Horizontal Double Wall Fuel Tanks

U.S. Horizontal Single Wall Fuel Tanks

FAQ

On-farm fuel storage helps reduce downtime, improve fueling efficiency, and maintain a reliable fuel supply during busy periods such as seeding and harvest. It can also reduce the frequency of fuel deliveries and improve fleet management.

Double wall fuel tanks provide built-in secondary containment by surrounding the primary tank with an outer wall. This design helps protect against leaks and supports compliance with fuel storage requirements.

Yes. Meridian Horizontal Fuel Tanks are commonly used for diesel and gasoline storage and can be configured for a variety of approved liquid storage applications. They are also available in various split tank configurations allowing you to have one tank with separate internal diesel and gasoline compartments and individual pumps.

Available options include pumps, hose reels, filters, meters, and other dispensing equipment. These accessories can be integrated into a turnkey package that arrives ready for use.

Powder coating provides a durable finish that resists corrosion, weather, and everyday wear better than traditional wet paint. This helps maintain the appearance and performance of the tank throughout years of outdoor service. Additionally, the powder coat is fully cured instantly when it leaves the oven unlike a wet paint process.

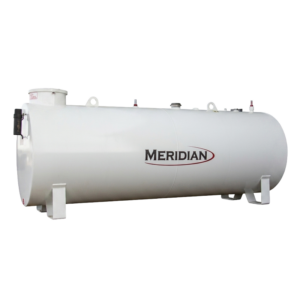

Meridian Products: On-Farm Used Oil TanksOn-Farm Used Oil Tanks
