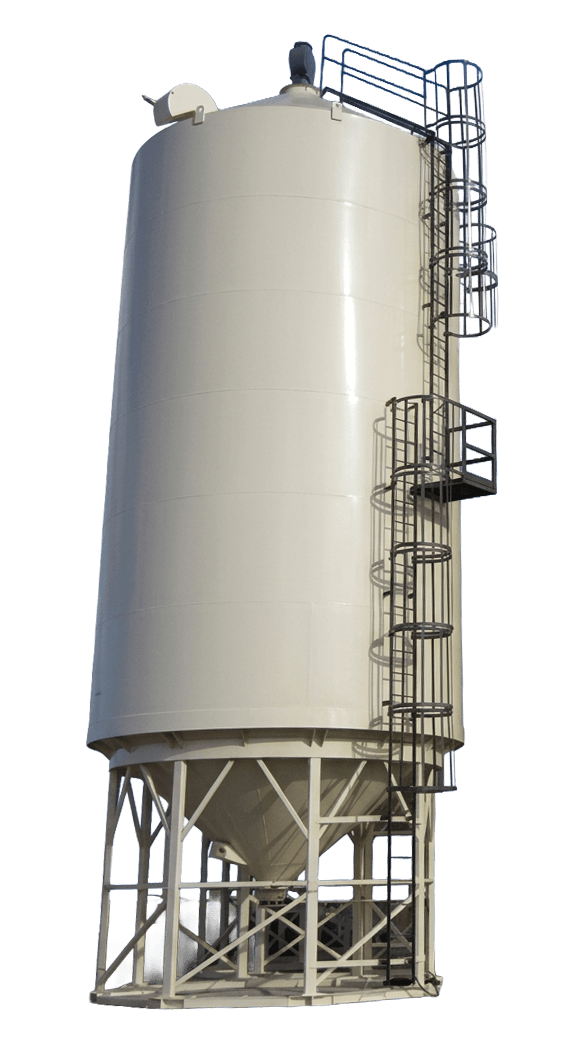

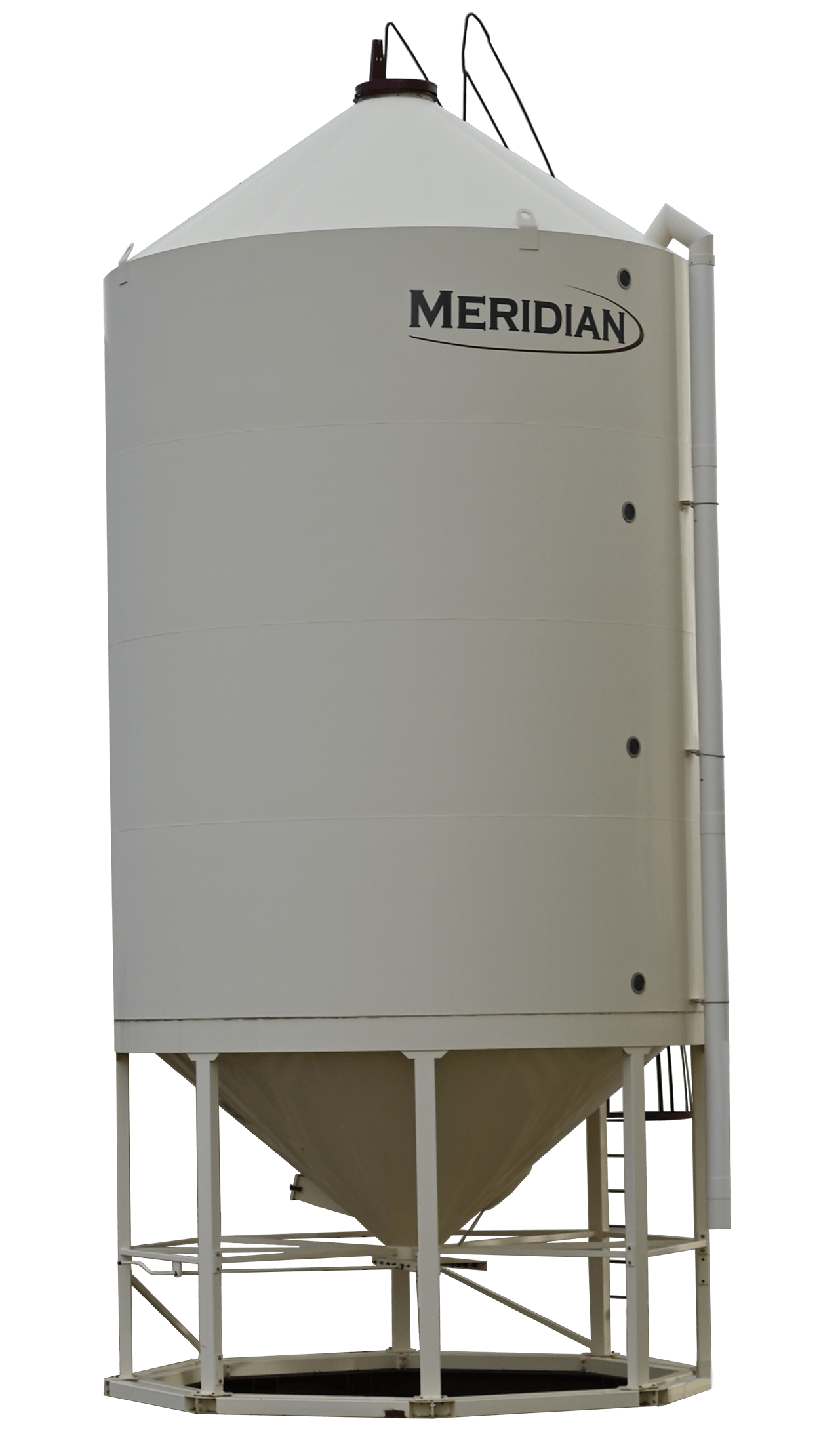

Meridian Sand Silos
Meridian Sand SmoothWall Silos are engineered for the storage and handling of frac sand and other bulk sand products in demanding industrial environments. Designed for high-capacity applications, these silos help operations maintain inventory, support continuous material flow, and reduce the logistical challenges associated with large-volume sand storage.

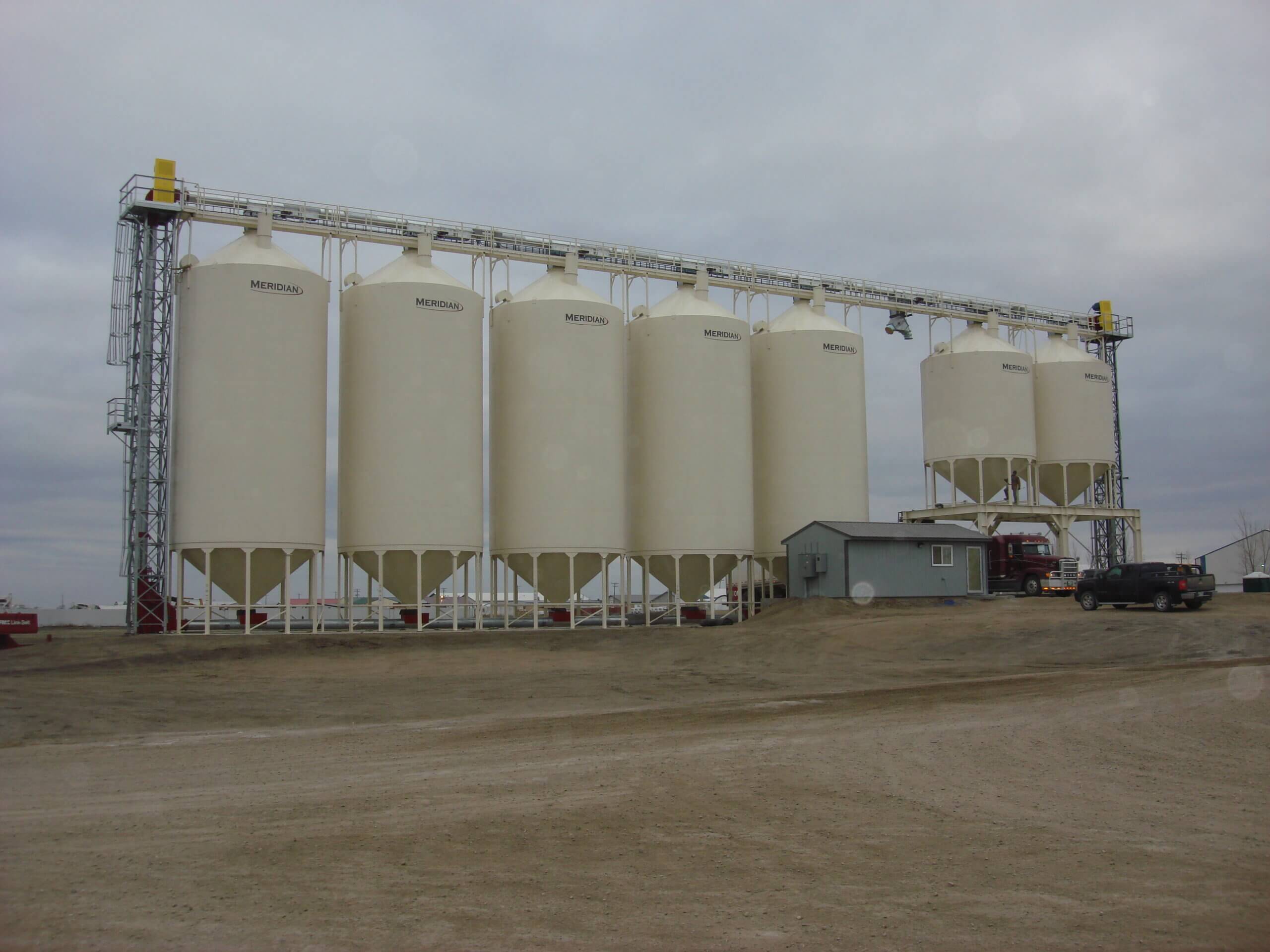

Built to handle dense, abrasive materials, Meridian SmoothWall Sand Silos are engineered around the specific requirements of the product-type being stored. SmoothWall construction promotes reliable discharge and helps reduce material buildup, while robust steel construction and corrosion-resistant premium coatings provide long-term performance in challenging operating environments. Available in a range of capacities and configurations, Meridian can deliver complete storage systems including structures, loadout solutions, conveyors, and site-specific customizations.
Common Applications
- Frac sand storage
- Sand processing facilities
- Industrial mineral storage
| Model | Diameter | Cubic Feet | Imp. Tons | Metric Tons |
|---|---|---|---|---|
| 1412-40 | 13’6’’ | 2,213 | 107 | 97 |
| 1420-40 | 13’6’’ | 3,358 | 161 | 146 |
| 1425-40 | 13’6’’ | 4,073 | 195 | 177 |
| 1430-40 | 13’6’’ | 4,790 | 229 | 207 |
| 1435-40 | 13’6’’ | 5,506 | 263 | 238 |
| 1620-40 | 16’ | 4,845 | 230 | 210 |
| 1625-40 | 16’ | 5,851 | 282 | 256 |
| 1630-40 | 16’ | 6,856 | 330 | 300 |
| 1635-40 | 16’ | 7,860 | 378 | 350 |
Standard Features
- 24” Clearance under the Slide Gate
- Heavy Duty design and build
- Meridian Retractable Ladder with Safety Grip Rung
- Min. 40 degree bottom cone and 35 degree roof cone
- Powder Coat Finish
