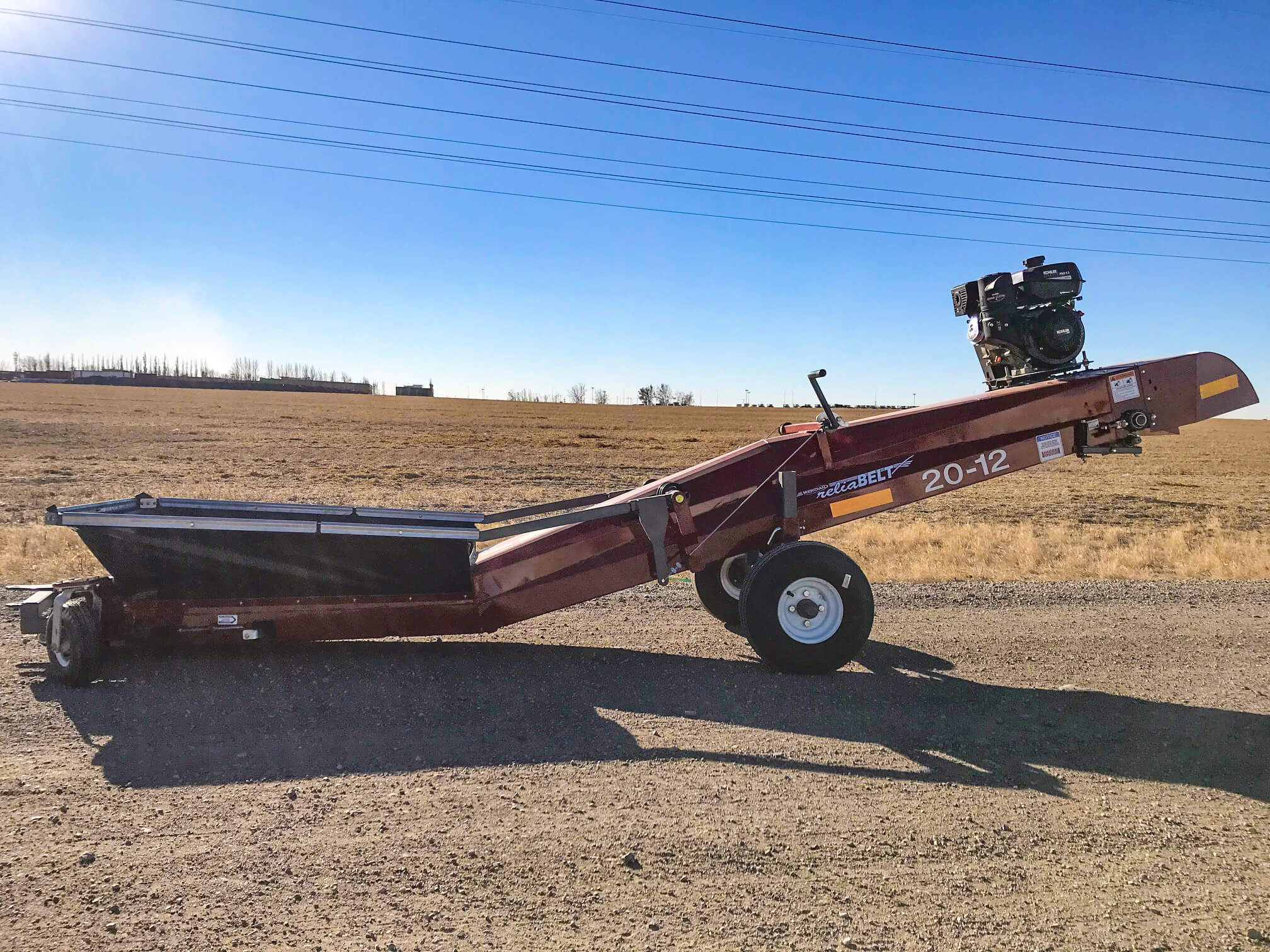

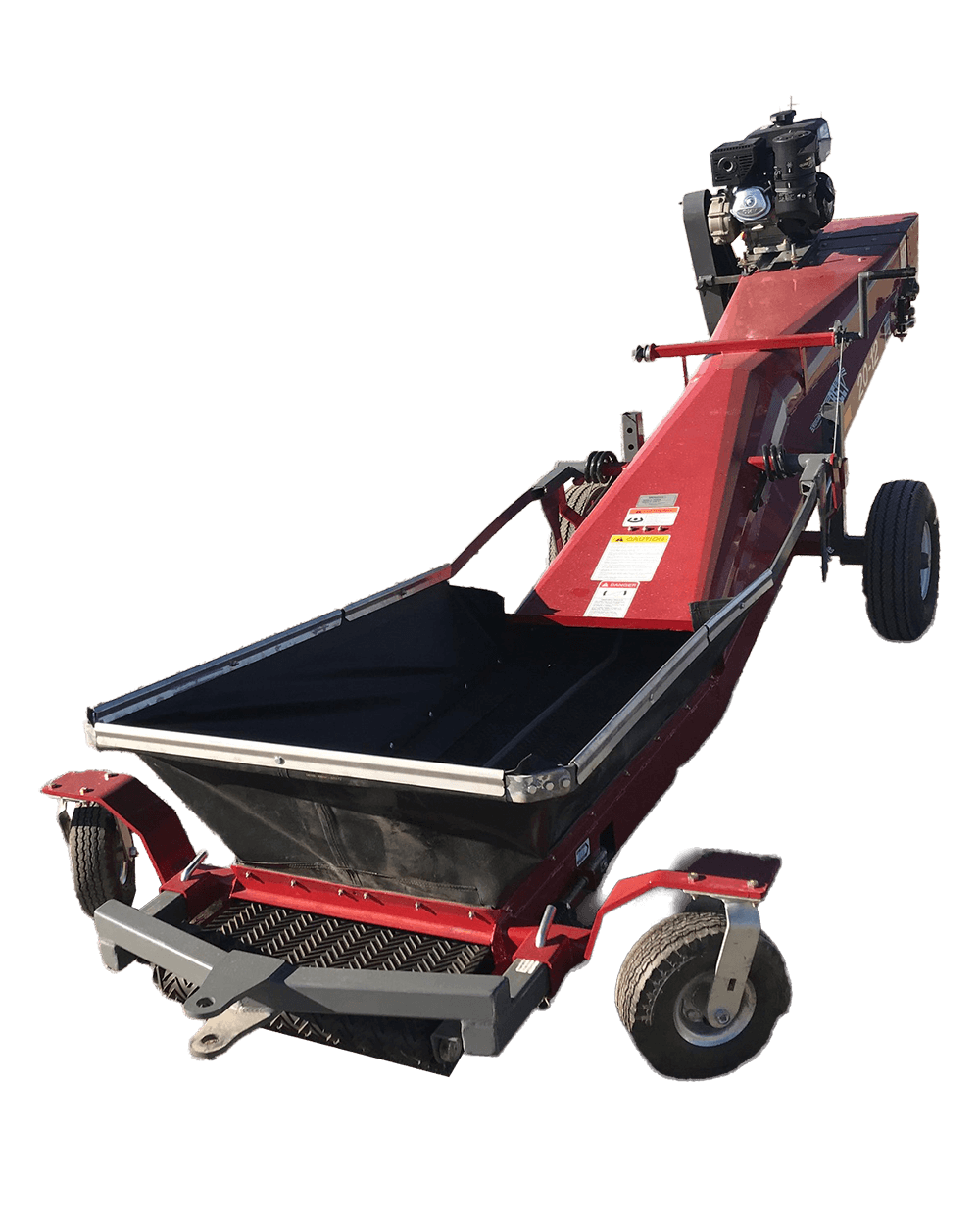

Meridian Jump Conveyor
Every grain handling setup is different. Whether you’re unloading trucks at harvest, feeding a grain cleaner, loading a conveyor system, or adapting to changing yard layouts, there are times when moving grain from one piece of equipment to another isn’t as straightforward as it should be. Jump Conveyors provide a flexible transfer solution that helps keep grain moving efficiently through your operation.
Designed to bridge gaps between grain handling equipment, Jump Conveyors create smooth commodity flow while reducing the challenges associated with difficult transfer points. Their portable design makes them easy to position where needed, while belt conveyor technology provides gentle handling to help maintain grain quality. From seasonal harvest workflows to permanent grain handling systems, Jump Conveyors add flexibility and efficiency to the movement of grain and other free-flowing commodities.
Models Specifications
| Dimension | Lowered Position | Raised Position |
|---|---|---|
| Gas | ||
| Gas Model Discharge Height | 5′ 2″ | 6′ 0″ |
| Gas Model Frame Height | 2′ 10″ | 4′ 0″ |
| Gas Model Axle to Intake | 8′ 5″ | 8′ 5″ |
| Gas Model Width | 4′ 8″ | 4′ 8″ |
| Electric | ||
| Electric Model Discharge Height | 4′ 8″ | 5′ 4″ |
| Electric Model Frame Height | 2′ 10″ | 4′ 0″ |
| Electric Model Axle to Intake | 8′ 5″ | 8′ 5″ |
| Electric Model Width | 4′ 8″ | 4′ 8″ |
Standard Features
- 10” Tube with 20” Belt
- Collapsible intake hopper
- Dual swivel wheels for easy positioning
- Height adjustable undercarriage
- Removable drawbar hitch for better accessibility
- Up to 10,000 Bushel Capacity
