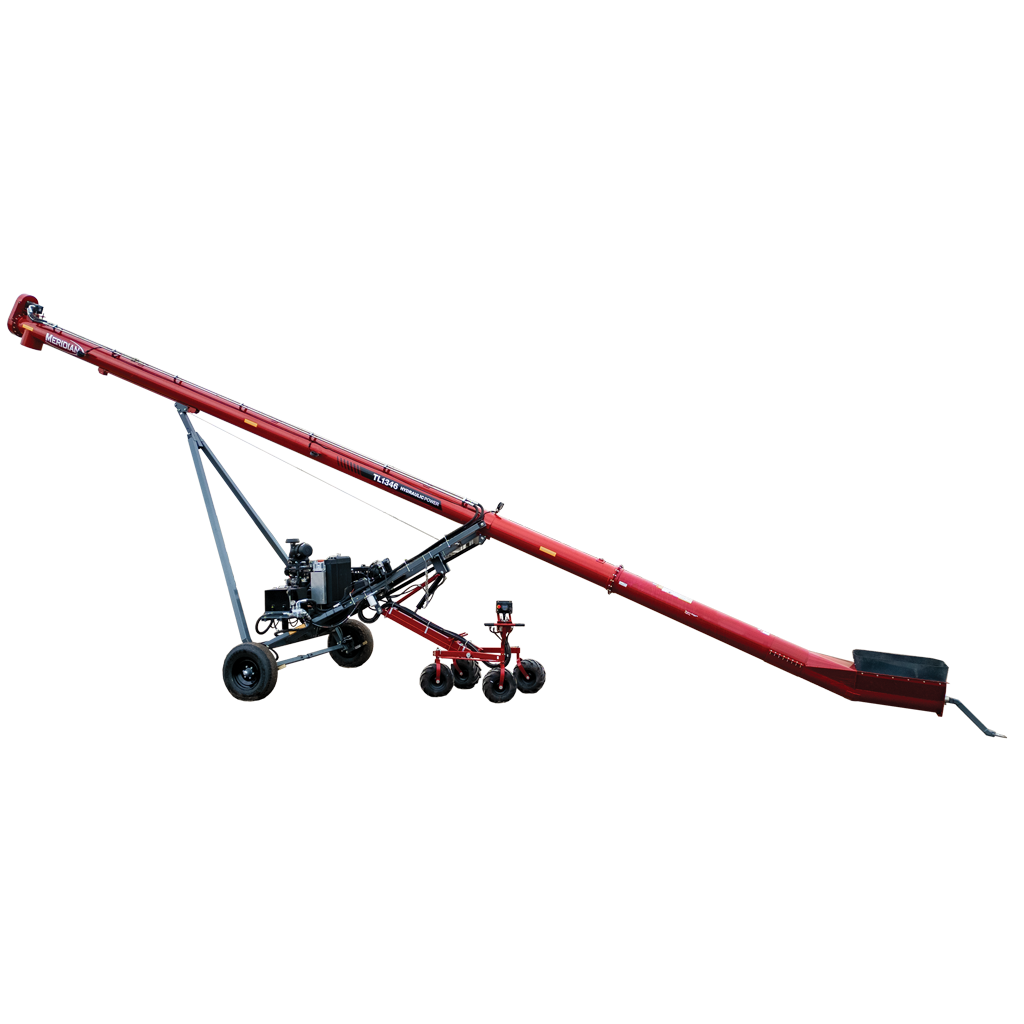

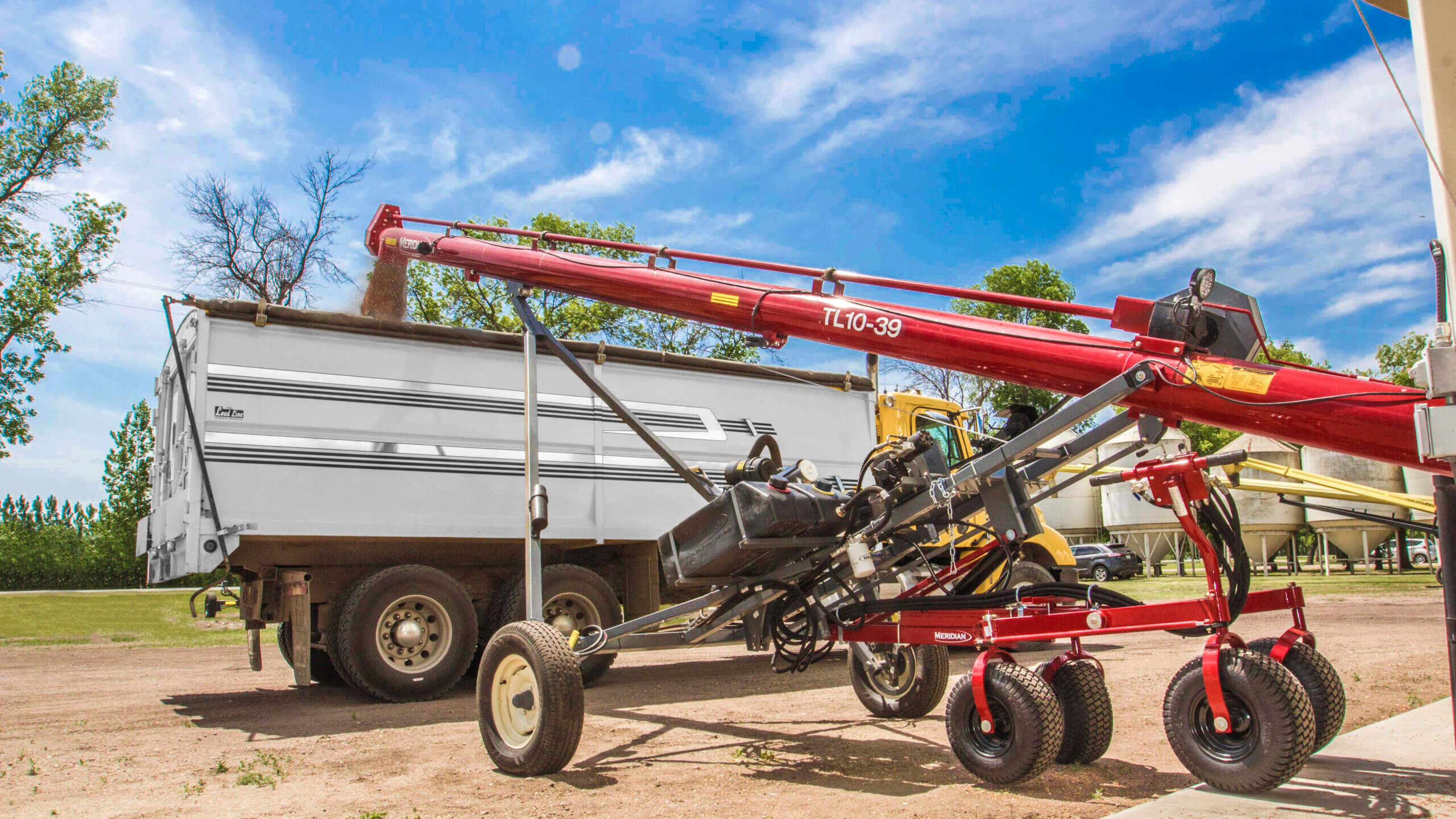

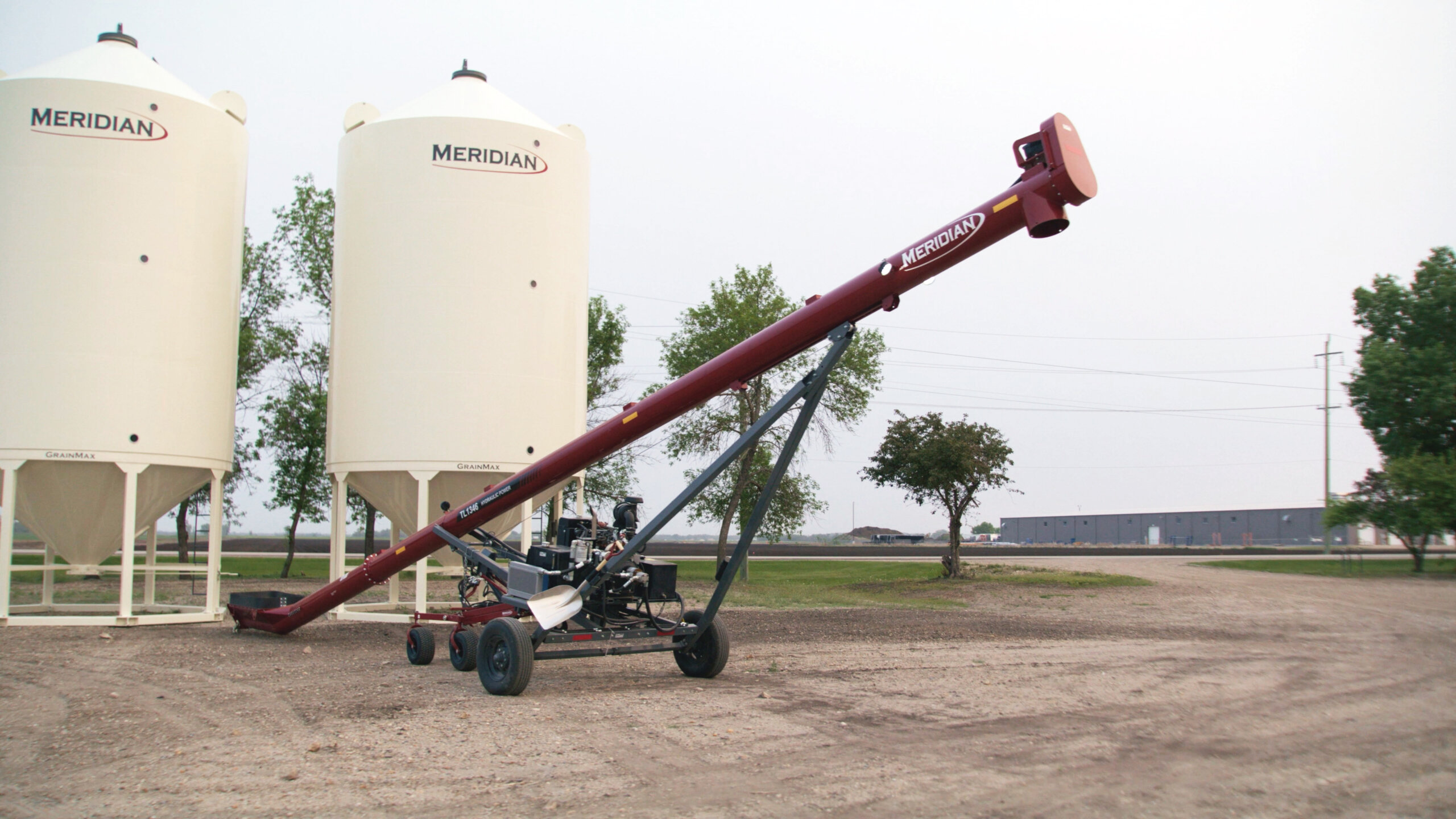

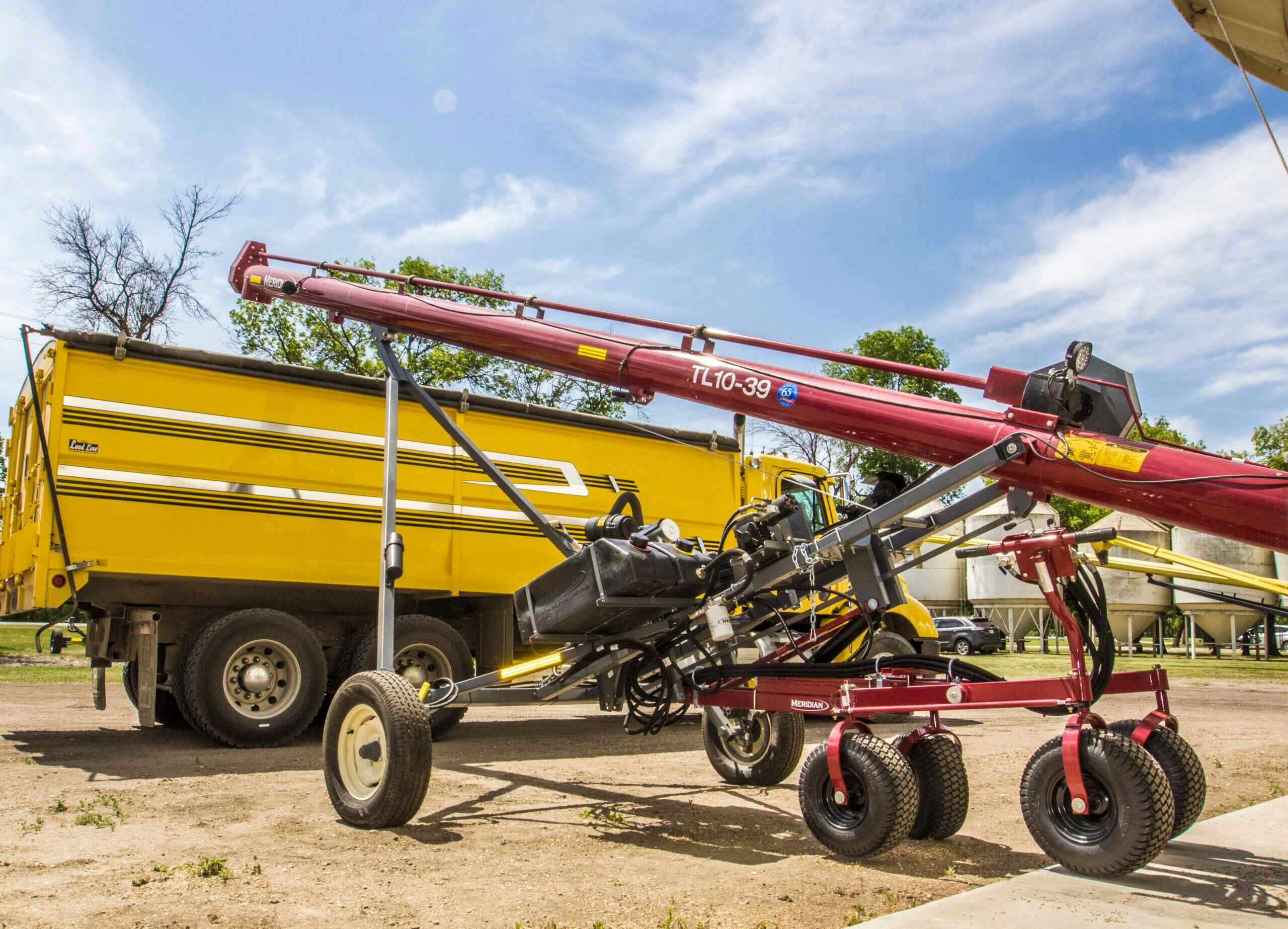

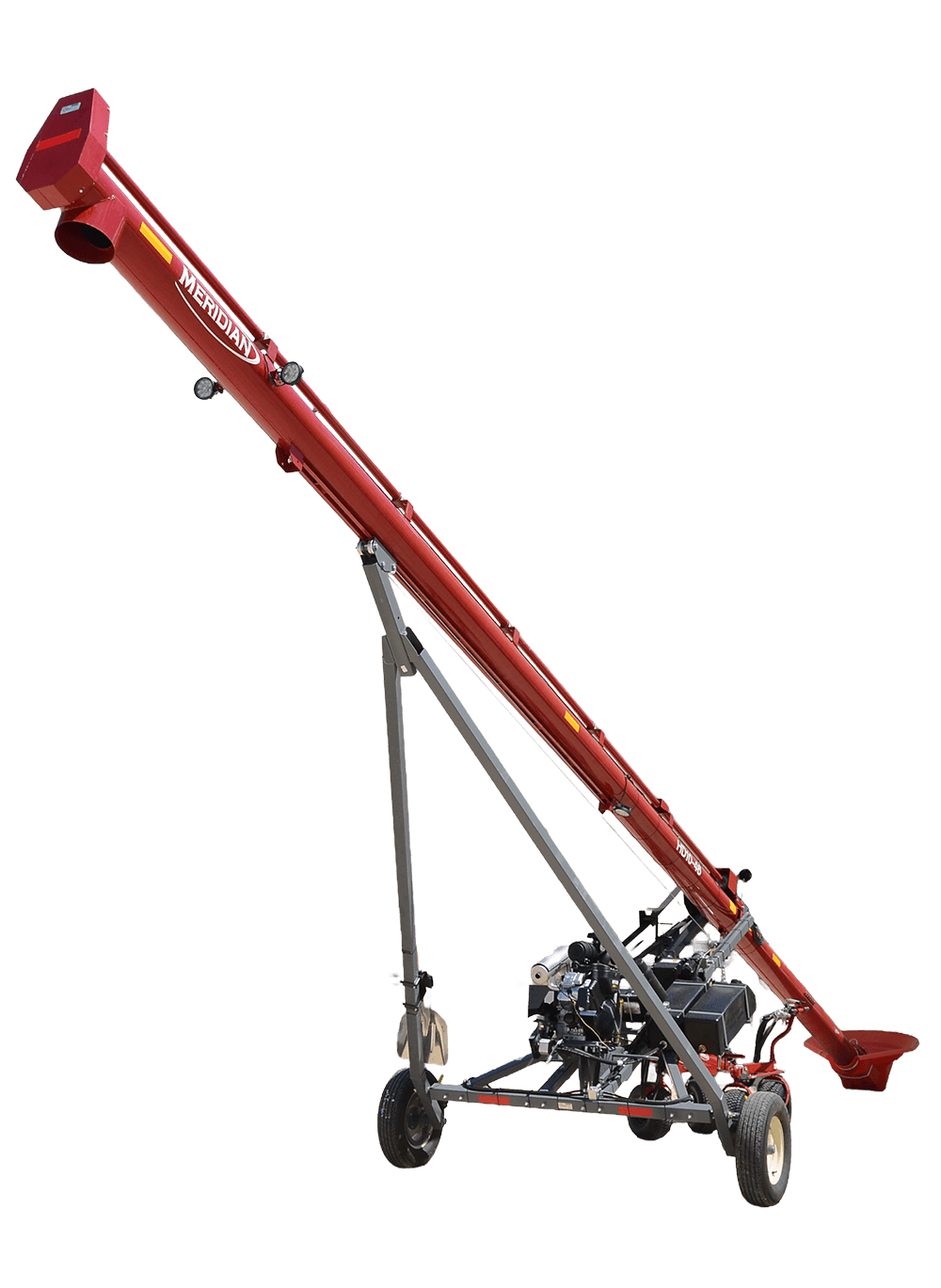

Meridian Truck Load Augers
Meridian Truck Load Augers are built to be rugged, dependable, and versatile. Our square structural undercarriage, offset axle, self-leveling motor mount, Continuous Super-EdgeTM Flighting (up to 53’), and unique seamless tube connectors (on augers 46’ and up) are all standard features. For unparalleled maneuverability, add our 4-Wheel Frame-Mounted mover.
The Meridian conventional auger is available in 8”, 10”, & 12” diameter tubes, lengths from 33’ – 59’, and offer capacities from 2,400-10,000 BPH. Ask a Meridian expert about fully equipped packages.
Specifications: 8" Heavy Duty Truck Load Auger Series
| Feature | Description |
|---|---|
| Drive System | Choice of Electric (EMD) or Gasoline (GMD) |
| Flighting | 7″ OD x 1/4″ Continuous Cup Flighting |
| Auger Tube | 8″ OD x 14 Gauge |
| Undercarriage | 2.5″ x 2.5″ Square Tubing |
| Axle | 56″ Wide |
| Wheels & Tires | 15″ Wheels |
| Additional Features | Self-leveling motor mount, high-speed tapered roller bearings |
Dimensional Specifications (Gas/Electric Drive)
| Dimension Description | 31′ Model | 39′ Model | 46′ Model |
|---|---|---|---|
| Discharge Height (Raised) | 21′ 7″ | 27′ | 32′ |
| Discharge Height (Lowered) | 9′ 2″ | 10′ 3″ | 11′ 2″ |
| Intake to Axle (Raised) | 16′ 3″ | 19′ 1″ | 23′ 6″ |
| Intake to Axle (Lowered) | 19′ 11″ | 25′ 5″ | 30′ 8″ |
| Axle to Discharge (Raised) | 11′ 4″ | 14′ 1″ | 16′ 1″ |
| Axle to Discharge (Lowered) | 11′ 1″ | 13′ 7″ | 15′ 4″ |
| Lower Tube Section Length | 14′ | 18′ | 22′ |
| Upper Tube Section Length | 17′ | 21′ | 24′ |
Extended List of Features
- Hydraulic Drive
- Suspended Flighting with Hanger Bearings
- 74HP Hatz Diesel
- 4 Wheel Mover
- Engine Controls Mounted on Mover Handle
- 12.75” OD x 12 Gauge Tube
- 11.75”OD x 5/16 Continuous Cup Flight
- 2-3/8” x 3/16” Auger Flighting Core
- 3.5” x 3.5” Square Tubing Undercarriage
- 16” Wheels
- ST235/80R16 Tires
- Tapered Roller Bearings
- Self Leveling Motor Mount
- LED Light Kit
Advantages
- Powder Coat Finish | Meridian’s powder coat finish outlasts liquid paint options
- Continuous Super-EdgeTM Flighting | Smooth, quiet operation even at high capacity
- Experience | Meridian has a legacy of 75 years in the auger manufacturing business
- Fully Loaded TL Packages | Includes 4 Wheel Mover Kit
