Horizontal Fuel Tanks – Meridian Manufacturing

Fuel storage requirements vary from site to site, but reliability, compliance, and operational efficiency remain constant priorities. Meridian Horizontal Fuel Tanks provide secure fuel storage solutions for commercial, industrial, construction, and resource-based operations, with configurations ranging from compact fleet fueling systems to large-capacity storage installations designed to support critical equipment and vehicle fleets.

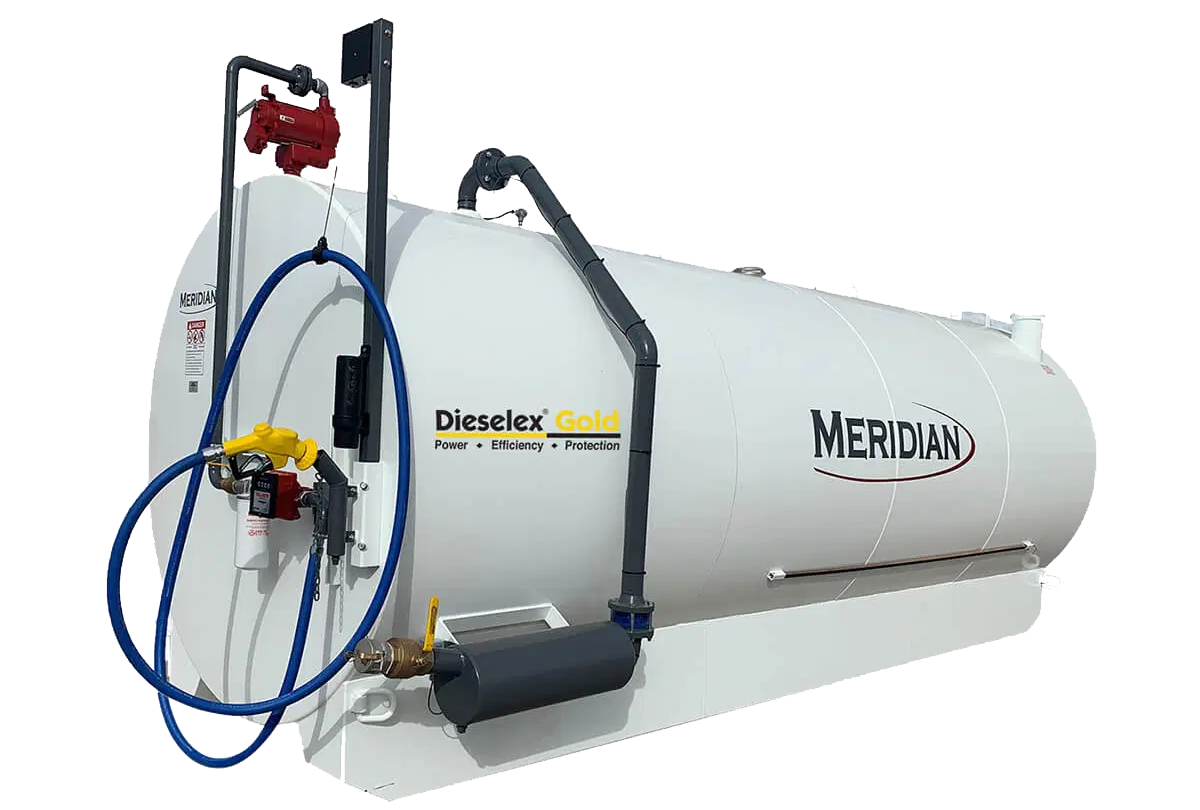

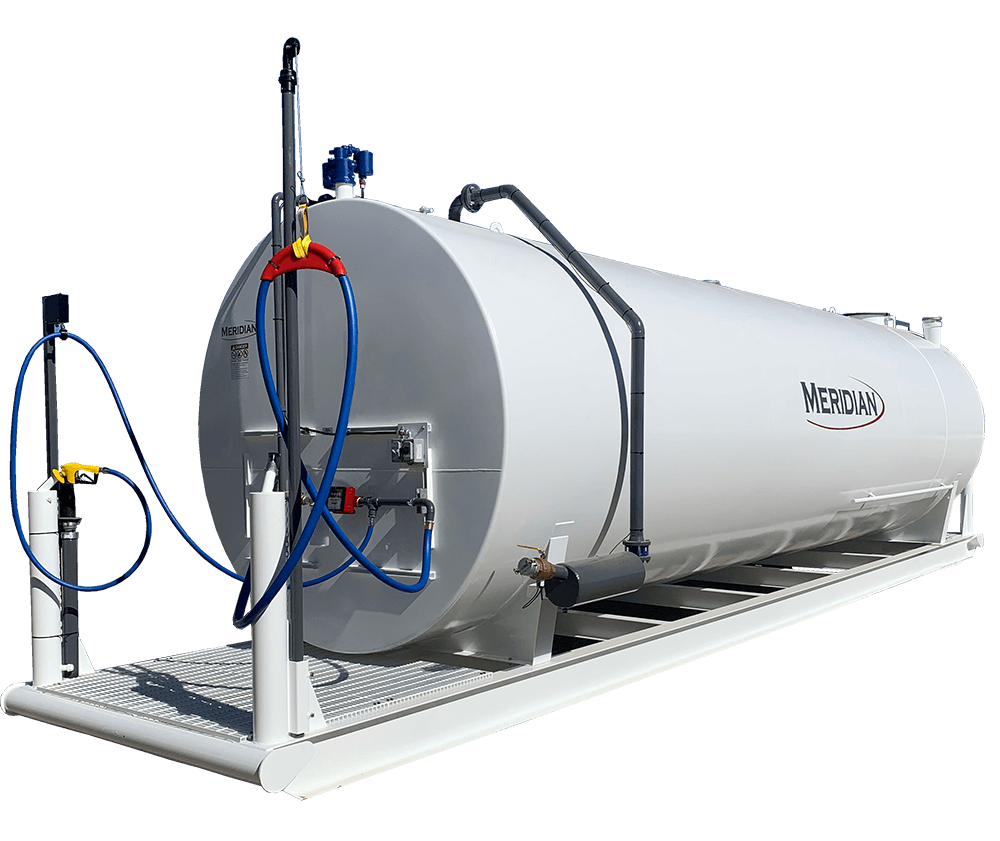

Meridian offers both heavy-duty Double Wall Fuel Tanks and Econo Double Wall Fuel Tanks to meet a wide range of storage and fueling requirements. Double Wall tanks provide integrated secondary containment and are available in capacities up to 100,000 litres, making them well suited for permanent fueling infrastructure and high-consumption operations. Econo Double Wall tanks offer the same containment advantages in a compact, cost-effective package for smaller fleets, remote sites, generators, and equipment fueling applications. Both product lines can be configured with pumps, metering systems, hose management, and other accessories to support efficient day-to-day fueling operations.

Common Applications

Canadian Horizontal Fuel Tanks

MODEL	VOLUME LITERS	VOLUME IMP. GAL	DIAMETER CM	DIAMETER INCHES	LENGTH (WITH SKID) CM	LENGTH (WITH SKID) INCHES
Horizontal Double Wall Fuel Tanks
MDW-2300	2,310	508	130	51	226	89
MDW-4595	3,241/1,351	713/297	130	51	406	160
MDW-4600	4,607	1,013	130	51	406	160
MDW-10000	9,972	2,194	163	64	572	225
MDW-15000	14,900	3,278	229	90	592	233
MDW-25000	24,890	5,475	229	90	843	332
MDW-35000	38,846	7,665	229	90	1,107	436
MDW-50000	50,015	11,002	302	119	958	377
MDW-65000	65,100	14,298	302	119	1,173	432
MDW-75000	75,800	16,674	302	119	1,326	522
MDW-100000	100,000	26,417	323	127	1509	594
Econo Horizontal Double Wall Fuel Tanks
EDW-15000	14,900	3,278	229	90	379	149
EDW-25000	24,890	5,475	229	90	630	248
EDW-35000	35,051	7710	229	90	894	352

U.S. Horizontal Fuel Tanks

Item#	Volume (U.S. Gal.)	Diameter	Length	Weight (lbs)
Horizontal Double Wall Fuel Tanks
64041	500	48″	6′ 5″	885
64042	1,000	64″	6′ 5″	1,750
64043	2,000	64″	12′ 6″	3,390
64057	4,000	76″	20′	6,130
64058	4K 75/25 split	76″	20′	6,940
64060	5,000	76″	22′	7,100
64059	5K 80/20 split	76″	22′	7,915
37148	8,500	10′	15′	12,625
64085	10,000	10′	18′	14,185
64073	12,000	10′	22′	16,250
64074	15,000	10′	26′	18,840
Horizontal Single Wall Fuel Tanks
60629	560	48″	74″	510
60630	1,000	64″	74″	716
60631	2,000	64″	148″	1,225

FAQ

Both provide integrated secondary containment, but they are typically used for different operational requirements. Double Wall Fuel Tanks are often selected for larger fuel storage volumes and permanent fueling infrastructure, while Econo Double Wall Fuel Tanks provide a compact and economical solution for smaller fueling applications.

Capacity planning should consider fuel consumption rates, delivery frequency, seasonal operating demands, equipment utilization, and business continuity objectives. Many organizations size storage to reduce delivery interruptions while maintaining flexibility as operations grow.

Yes. Meridian Horizontal Fuel Tanks are commonly used for diesel and gasoline storage and can be configured for a variety of approved liquid storage applications. They are also available in various split tank configurations allowing you to have one tank with separate internal diesel and gasoline compartments and individual pumps.

Yes. Many facilities begin with a specific storage requirement and expand capacity as equipment fleets, production demands, or site operations grow. Planning for future expansion early can simplify future upgrades and reduce project costs.

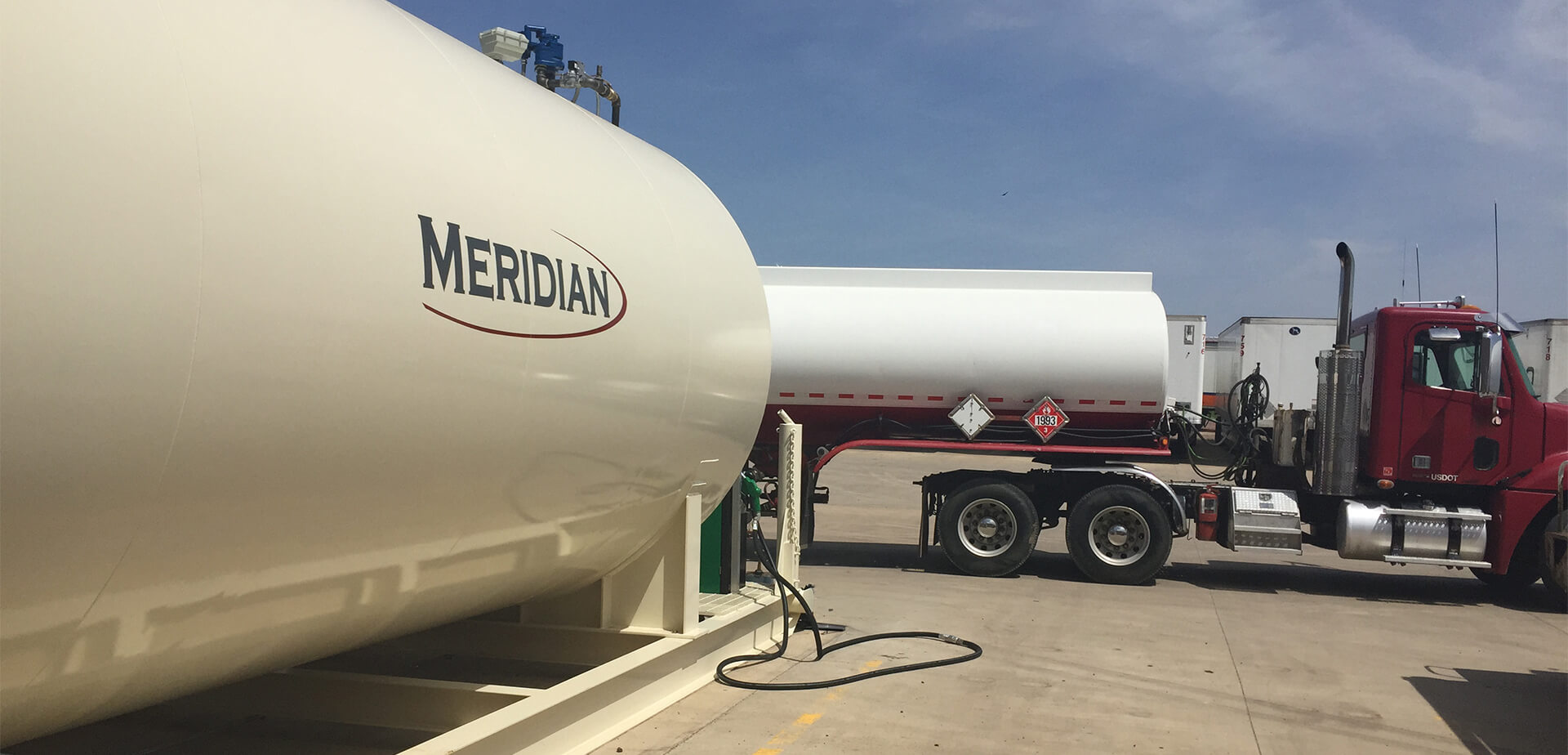

Horizontal fuel tanks are often selected when higher storage capacities, integrated fueling systems, and centralized fleet fueling are priorities. Their design allows for large-volume storage while providing convenient access to pumps, meters, hose management systems, and maintenance points. For many industrial facilities, fleet operations, and construction sites, horizontal tanks become the hub of a complete fueling system rather than simply a storage vessel.
