AirMax 360 – Meridian Manufacturing

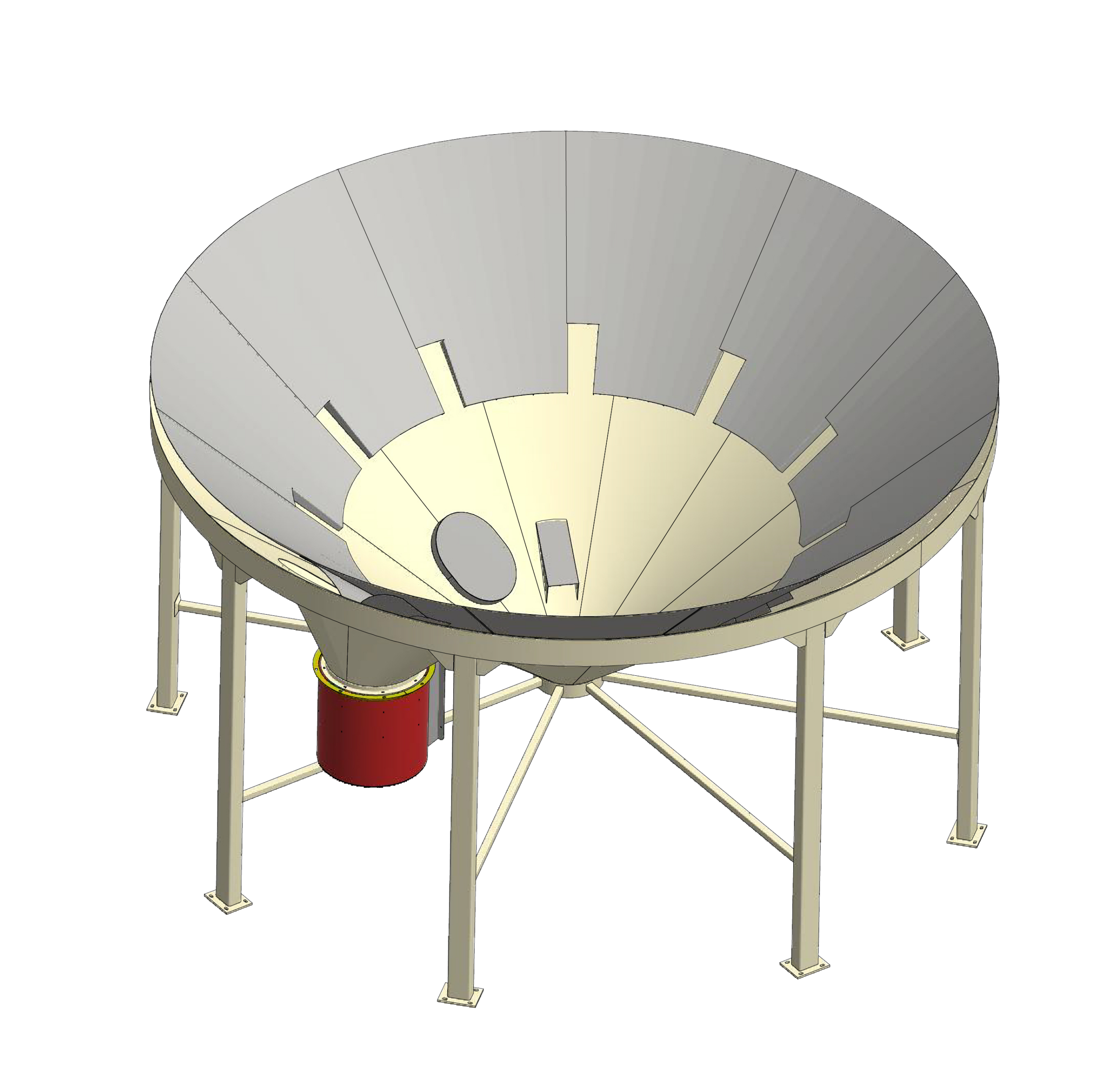

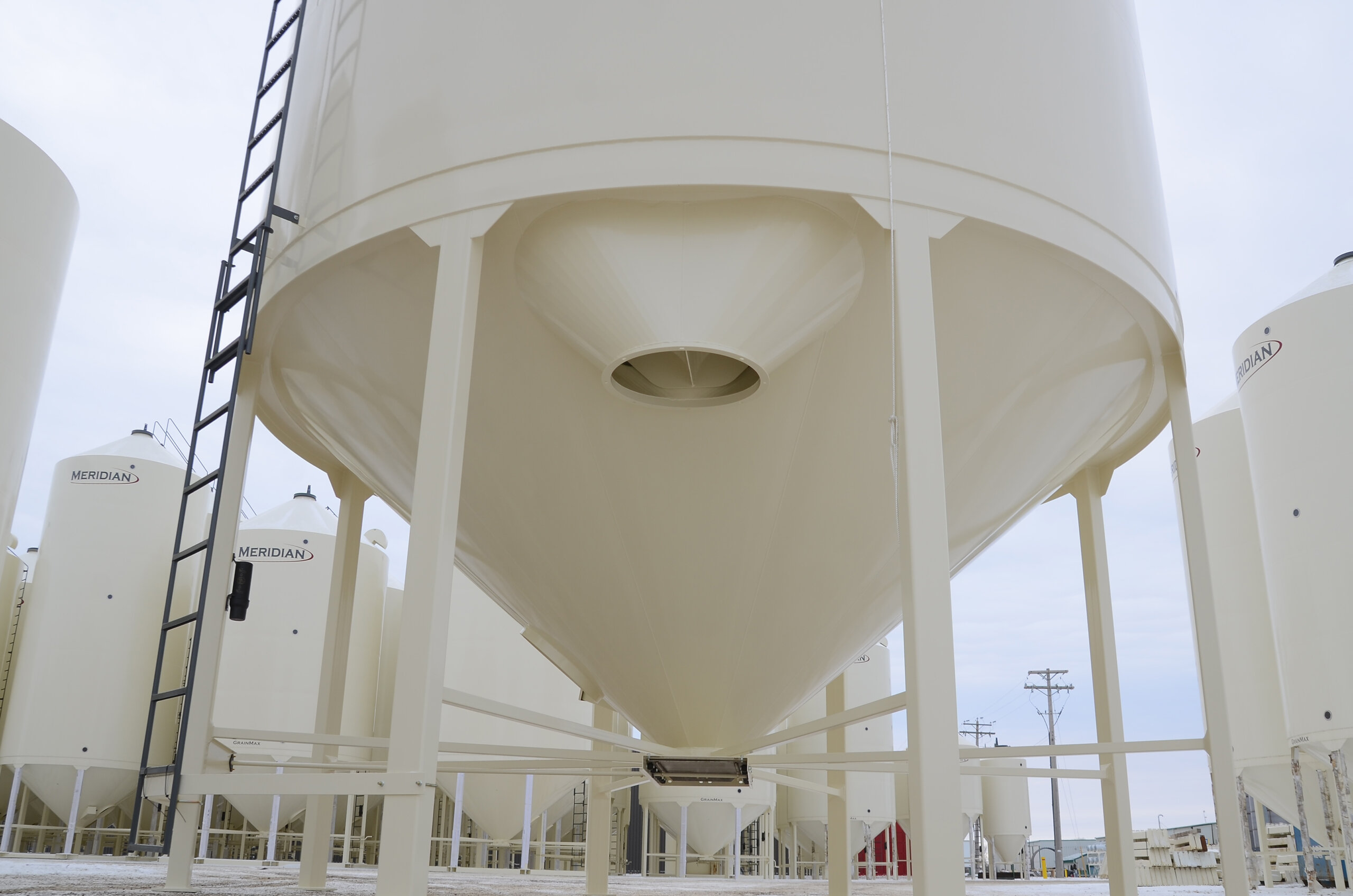

The AirMax™ 360 offers a high-performance aeration system that surrounds the full circumference of the hopper cone. An ideal use for SmoothWall Hopper Bins in the seed industry, it features a continuous air duct starting from the top of the cone and pointing down toward the center. This design forces air into the center of the grain cavity, which is necessary for even grain conditioning. With no perforation, there are no screens to remove when changing seed varieties, resulting in virtually no cleaning or cross-contamination.

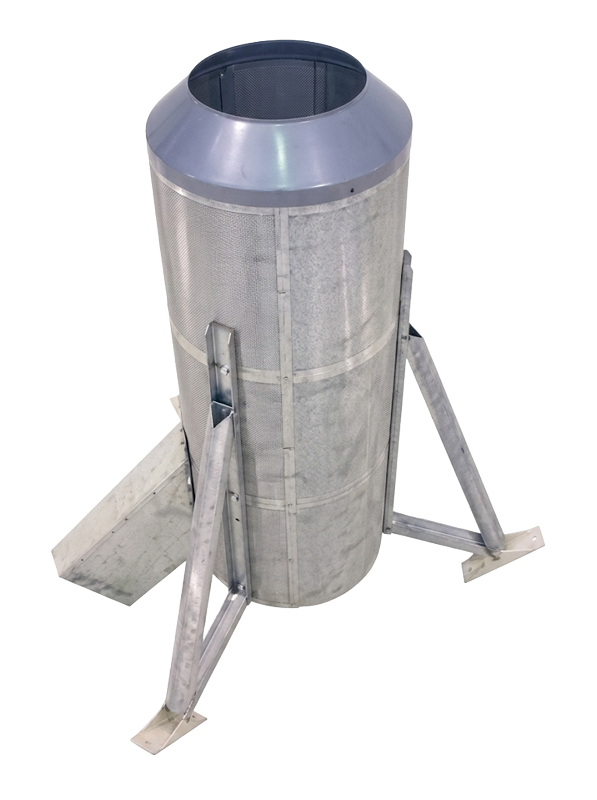

For natural air grain drying, our factory-installed vertical system for 40° and 45° Meridian bins provides ultimate airflow. Built on a robust 3-leg design with full leg support extending 4” up the aeration, it features a continuous, fully perforated interior screen reaching to the lid. The 24” rib spacing maximizes the aeration area, while the angle rib construction safely distributes point load pressures. A dedicated duct clean-out shroud is also included to ensure simple, hassle-free maintenance.

AIRMAX® Aeration

MODELS	MAX BIN SIZE (BUSHELS)*	(BUSHELS) 1 RECOMMENDED HOPPER BIN SIZE**	DIMENSIONS	DIA. I.D	WEIGHT (LBS)	SCREEN SURFACE (INCHES)	INLET SIZE AND TYPE	HEIGHT INTO GRAIN CAVITY 35° CONE***	HEIGHT INTO GRAIN CAVITY 40° CONE***	HEIGHT INTO GRAIN CAVITY 55° CONE***
VERTICAL AERATION – ONE PIECE
V3004	3500	14’ & 16’ bins up to 3500 bushels. Models 1615. GM3 and smaller	30” x 4’	20”	385	6299	9” x 14” Rect	n/a	86”	n/a
V3006	5000	14’ & 16’ bins up to 5000 bushels. Models 1625. GM5 and smaller	30” x 6’	20”	440	9656	9” x 14” Rect	n/a	110”	n/a
V3008	6000	14’ & 16’ bins up to 6000 bushels. Models 1630. GM6 and smaller	30” x 8’	20”	525	13132	9” x 14” Rect	n/a	134”	n/a
V4504	7000	14’, 16’ & 18” bins up to 7000 bushels. Models 1825. GM64 and smaller	45” x 4’	30”	580	9301	14” x 17” Rect	n/a	95”	n/a
VERTICAL AERATION – SECTIONAL (DESIGNED FOR RETROFITTING EXISTING HOPPER BINS AND HIGH-FLOW APPLICATIONS)****
VS3004	5000	All bins up to 5000 bushels	30” x 4’	20”	420	5245	9” x 14” Rect	80”	86”	99”
VS3006	8000	All bins up to 8000 bushels	30” x 6’	20”	500	7990	9” x 14” Rect	104”	110”	123”
VS4504	15000	All bins up to 15000 bushels	45” x 4’	30”	600	7925	14” x 17” Rect	88”	95”	116”
VS4506	20000	All bins up to 20000 bushels	45” x 8’	30”	745	12100	14” x 17” Rect	112”	119”	140”
HORIZONTAL AERATION (REMOVABLE FOR FERTILIZER STORAGE AND AVAILABLE FOR RETROFITTING EXISTING BINS)
H1808	5000	14’ & 16’ bins up to 3300 bushels. Models 1615. GM3 and smaller	18” x 8’	n/a	155	3478	18” Rnd	38”	44”	n/a
H2408	6500	14’, 16’ & 18’ bins up to 5000 bushels. Models 1625, 1820, GM500 and smaller	24” x 8’	n/a	235	4660	24” Rnd	44”	50”	n/a
H2410	6500	14’, 16’ & 18’ bins up to 6500 bushels. Models 1630, 1825, GM6, GM64 and smaller	24” x 10’	n/a	285	6284	24” Rnd	51”	59”	n/a
H2410-HD	8500	Up to 18’ diameter	24” x 10’	24”	360	6284	24” Rnd	51”	59”	n/a
H2412-HD	11000	Up to 20’ diameter	24” x 12’	24”	425	7908	24” Rnd	58”	68”	n/a

Maximize Airflow. Protect Your Harvest.

AIRMAX® Aeration

Extended List of Features

Vertical One Piece Aeration

Horizontal Aeration

Vertical Sectional Aeration
