Meridian Utility Augers

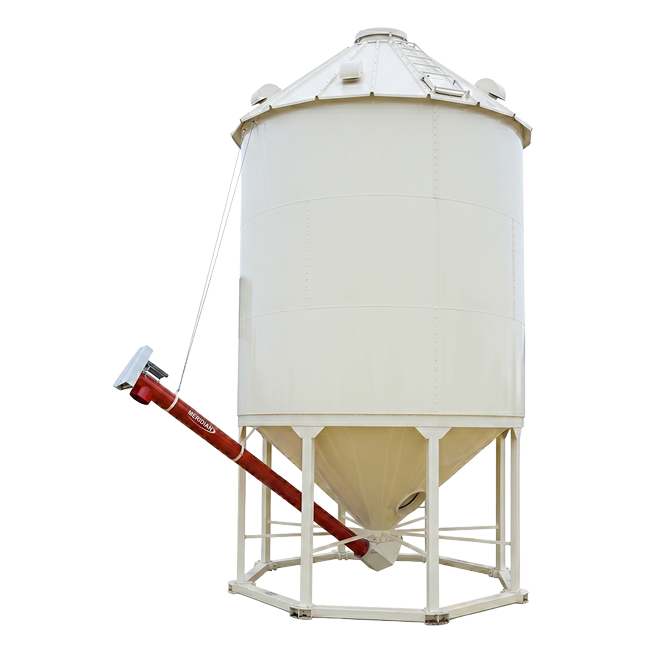

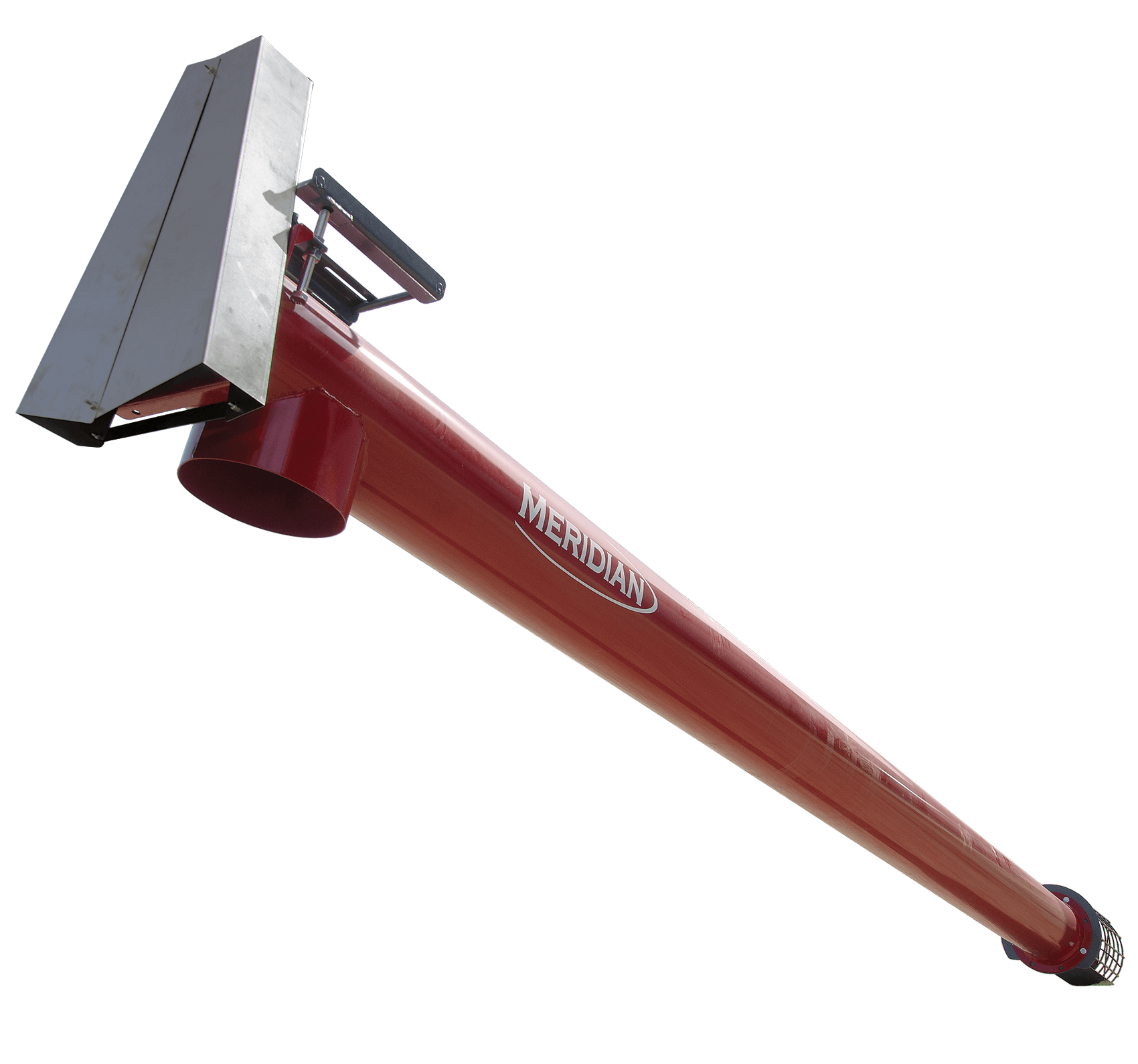

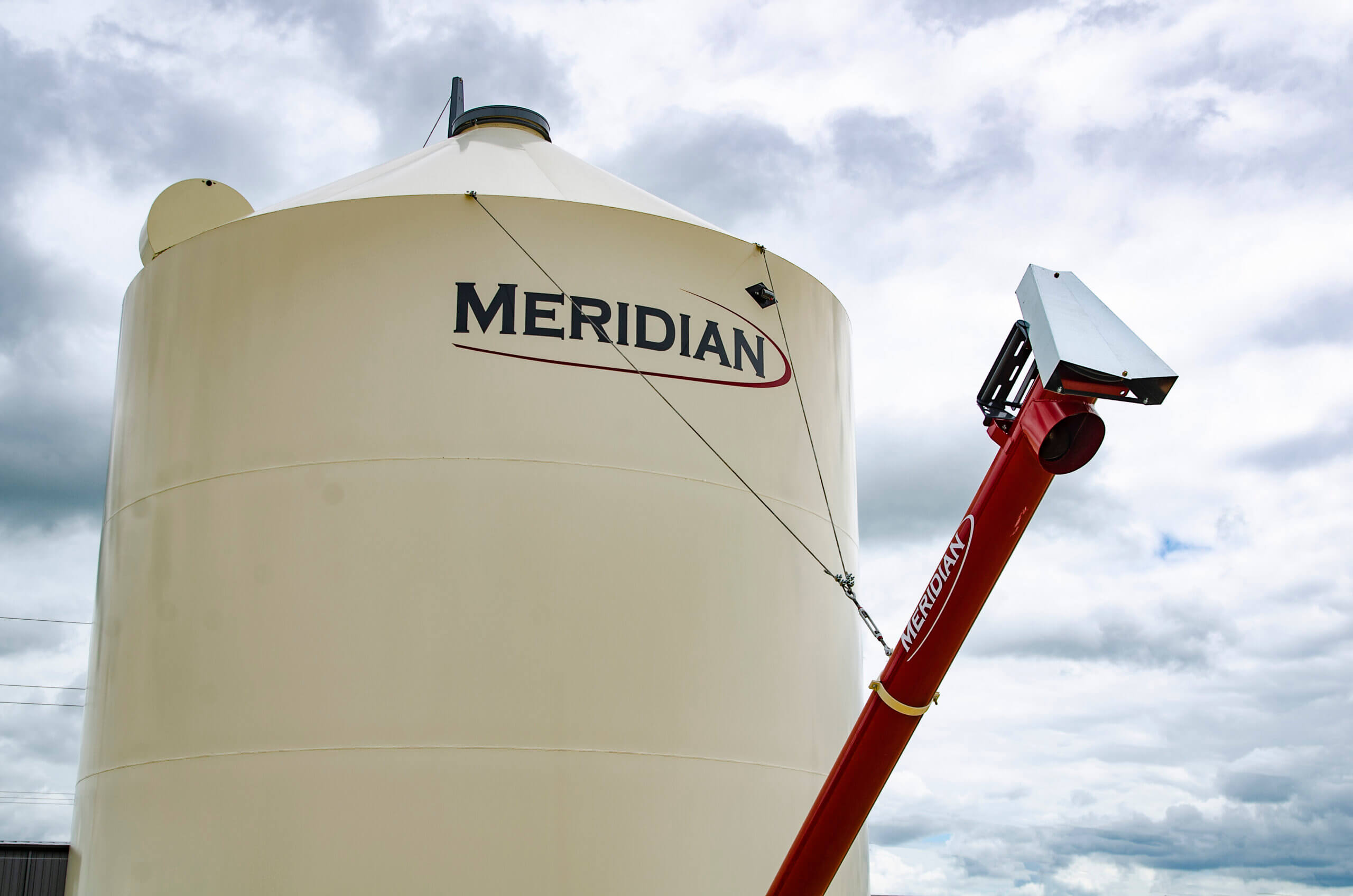

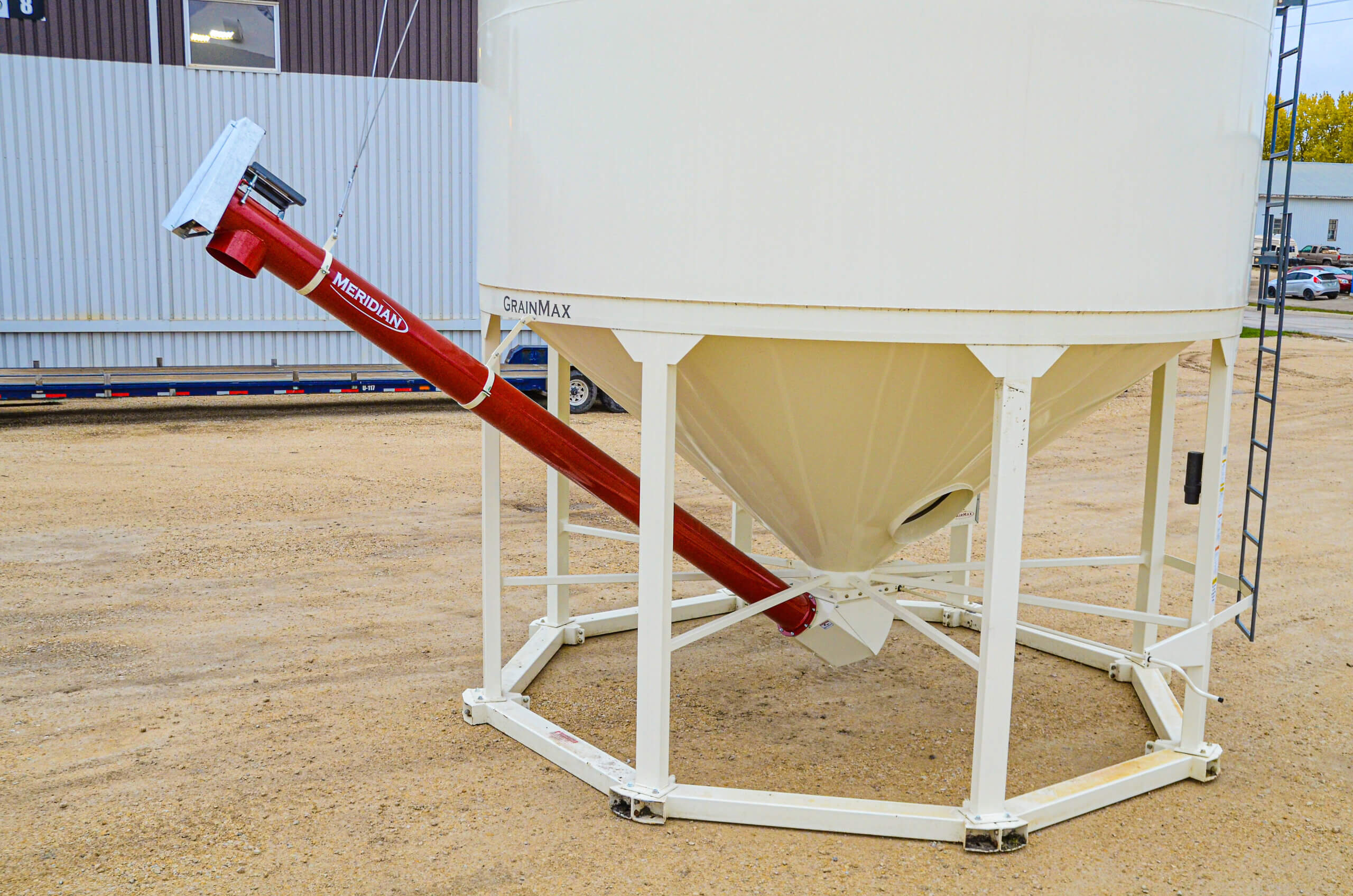

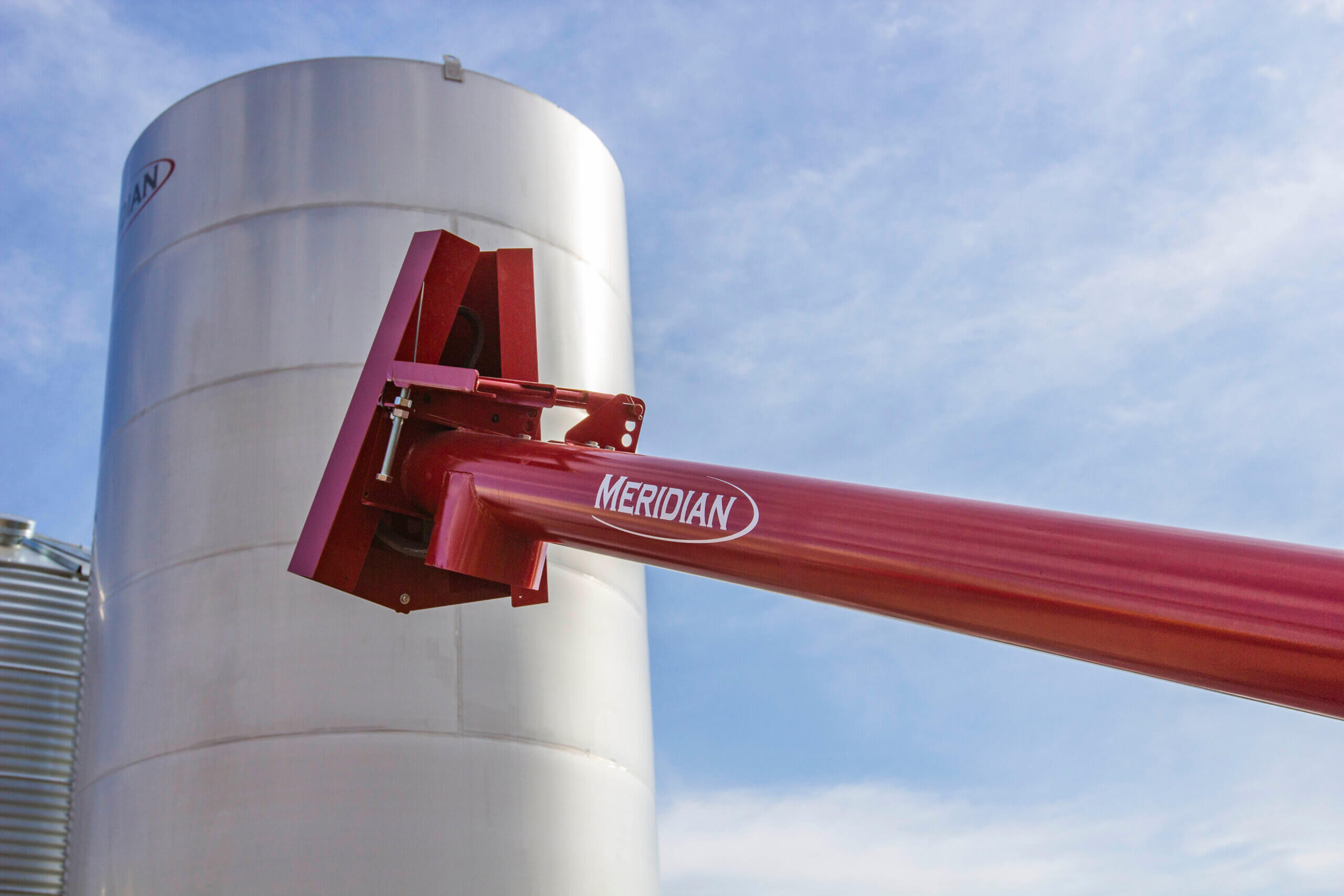

Well built and dependable, Meridian’s line of utility augers are ready to go to work. Available in 6”, 8”, and 10” diameters, you’ll be better equipped to move your seed, grain, and feed. Plus, our utility augers are easily customizable to fit your needs from grain drying to filling feed mixers with a standard 16′ auger and motor mount and available 5′, 10′, or 15′ extensions.
Utility Augers
| 6″ | 8″ | 10″ | |
|---|---|---|---|
| Motor Pulley required | 2B 3 1/4″ – 4″ | 2B 3 1/4″ – 3 1/2″ | 2B 3 1/4″ – 3 1/2″ |
| Flighting speed | 480 – 580 | 480 – 510 | 480 – 510 |
| Supplied Belt Size | B44 | B44 | B44 |
| Horsepower Requirements 16′ – 21′ | 1.5 – 2 | 3 | 3 – 5 |
| Horsepower Requirements 26′ – 31′ | 3 | 5 | 5 – 7.5 |
| Horsepower Requirements 36′ – 41′ | 3 – 5 | 5 – 7.5 | 7.5 – 10 |
| Horsepower Requirements 46′ – 51′ | 5 | 7.5 – 10 | 10 – 15 |
| Horsepower Requirements 56′ – 61′ | 7.5 | 10 | 15 – 20 |
Models Available
| 6″ MODELS AVAILABLE | 8″ MODELS AVAILABLE | 10″ MODELS AVAILABLE |
|---|---|---|
| UA 616 6″ x 16′ upper basic section c/w motor mount |
UA 816 8″ x 16′ upper basic section c/w motor mount |
UA 1016 10″ x 16′ upper basic section c/w motor mount |
| UX 605 6″ x 5′ extension tube & flighting |
UX 805 8″ x 5′ extension tube & flighting |
UX 1005 10″ x 5′ extension tube & flighting |
| UX 610 6″ x 10′ extension tube & flighting |
UX 810 8″ x 10′ extension tube & flighting |
UX 1010 10″ x 10′ extension tube & flighting |
| UX 615 6″ x 15′ extension tube & flighting |
UX 815 8″ x 15′ extension tube & flighting |
UX 1015 10″ x 15′ extension tube & flighting |
Standard Features
- Heavy Duty design and build
- Continuous Super Edge Flighting
- Premium powder coat finish on augers and components
