Built for the Tough. Born for the Field.
Meridian’s fuel trailers offer the perfect solution for transporting and dispensing diesel and DEF in the field. These mobile fuel trailers are designed for durability and ease of use, featuring high-quality construction to handle the rigors of any job. Whether you need a diesel fuel trailer for farming, construction, or industrial operations, Meridian fuel trailers provide a secure, portable fuel tank trailer for safe and efficient fuel handling.
Durable Construction: Meridian fuel trailers are built to last, with rugged materials designed to withstand tough conditions while ensuring the safe transport of fuel.
Efficient Fuel Dispensing: These fuel trailers make refueling easy and fast, with high-capacity tanks and easy-to-use systems for filling equipment in the field or on-site.
Portable Fuel Tank Options: Available in various sizes, these trailers offer the flexibility to meet a range of fueling needs, whether you need a small mobile fuel trailer or a large-capacity option for bigger operations.
Versatile Applications: Designed for a wide range of industries, from agriculture to construction, Meridian’s fuel trailers are perfect for diesel and other fuel types, ensuring that your equipment is always ready to go.
Meridian fuel trailers combine portability, durability, and efficiency in one solution. With their mobile fuel trailers, refueling equipment on the job site becomes easier and more reliable, helping you maximize productivity. Meridian’s fuel trailers are the trusted choice for secure, high-performance fuel transport in any industry.
Meridian Fuel Trailers are available in the USA only. All Fuel Trailers are proudly built in Storm Lake, Iowa.
Fuel Trailers
| Feature | 520 Fuel Trailer | 990 Fuel Trailer |
|---|---|---|
| Capacity | 520 Gallons | 990 Gallons |
| Overall Dimensions | 12’4” L x 7’9” W x 4’10” H | 15’10” L x 8’3” W x 5’5” H |
| Weight | 1,600 lbs | 3,900 lbs |
| Color | Bone White | Bone White |
| Frame | Tubular frame with powder coat | Tubular frame with powder coat |
| Axle Configuration | Tandem 3,500 lb (Electric brakes) | Tandem 7,000 lb (Electric brakes) |
| Wheels & Tires | 14” Steel wheels (10-ply min) | 16” Steel wheels (10-ply min) |
| Hitch | Adjustable bumper hitch | Adjustable bumper hitch |
| Wiring Connector | Standard 7-pin round | Standard 7-pin round |
| Rock Guard | — | Aluminum diamond plate |
| Fenders / Housing | Shatter-resistant poly fenders | Protective Cowling |
| Access | Rear compartment | 2 large doors for easy access |
| Pump Performance | 12V – 15 GPM | 12V – 20 GPM |
| Fuel Hose | 12’ x ¾” | 35’ x 1” |
| Nozzle Type | Manual nozzle | Automatic nozzle |
| Hose Management | — | Auto-retracting hose reel |
| Filtration | 10 micron filter | 10 micron filter |
| Power Supply | 18’ cables with factory clamps | Integrated 12V battery |
| Battery Setup | Battery box (Battery not included) | Battery included |
| Lighting | — | Interior LED lighting |
Extended List of Features

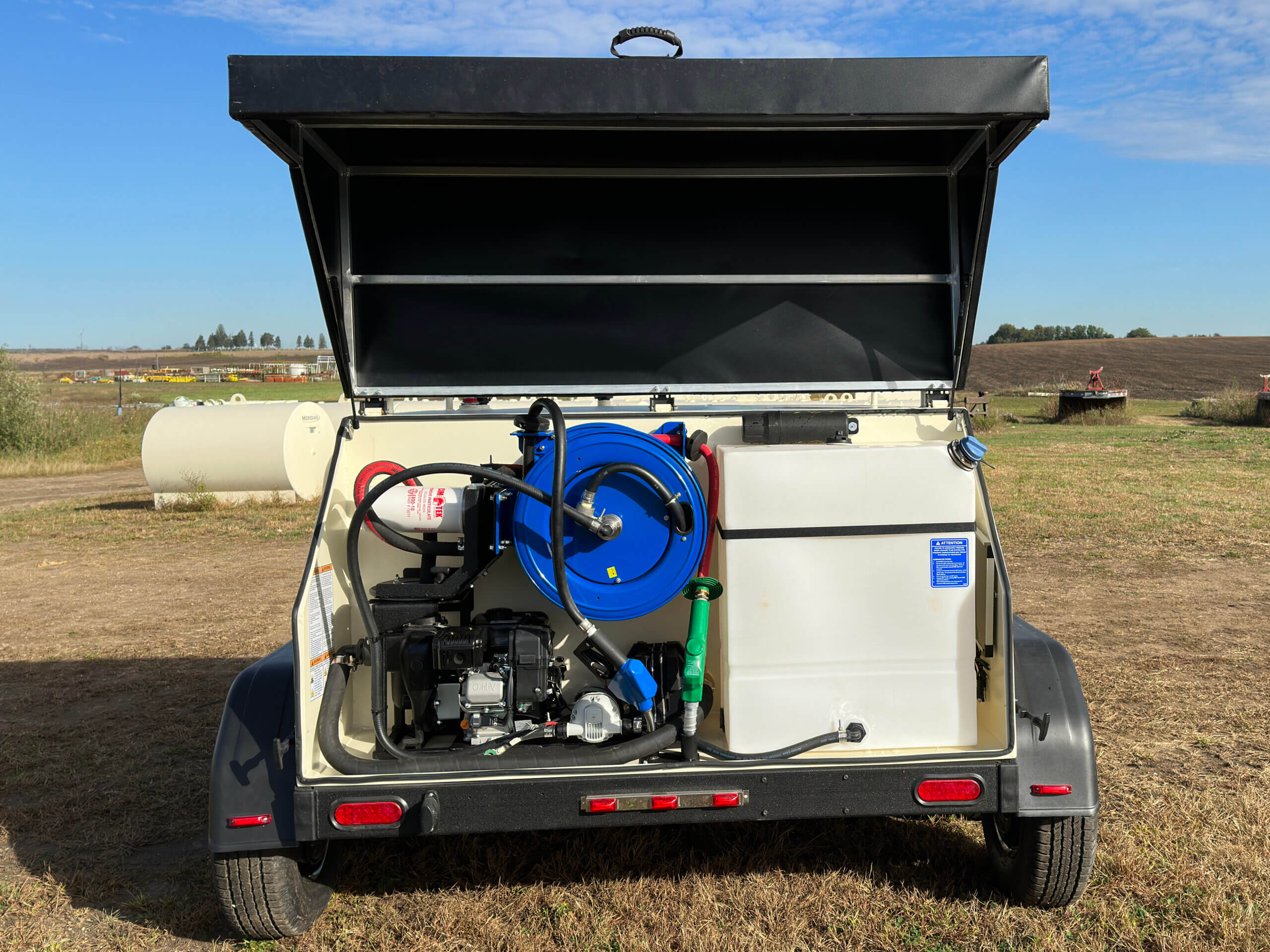

520 Features & Benefits:
- DOT compliant
- High Impact Powder Coat Finish
- 2 5/16” Ball Hitch
- Tandem 3500# Torsion Axles
- Standard Front Deck
- 520 Gallon Tank with Single Baffle
- Low Profile Design with High Visibility
- Optional DEF Delivery System

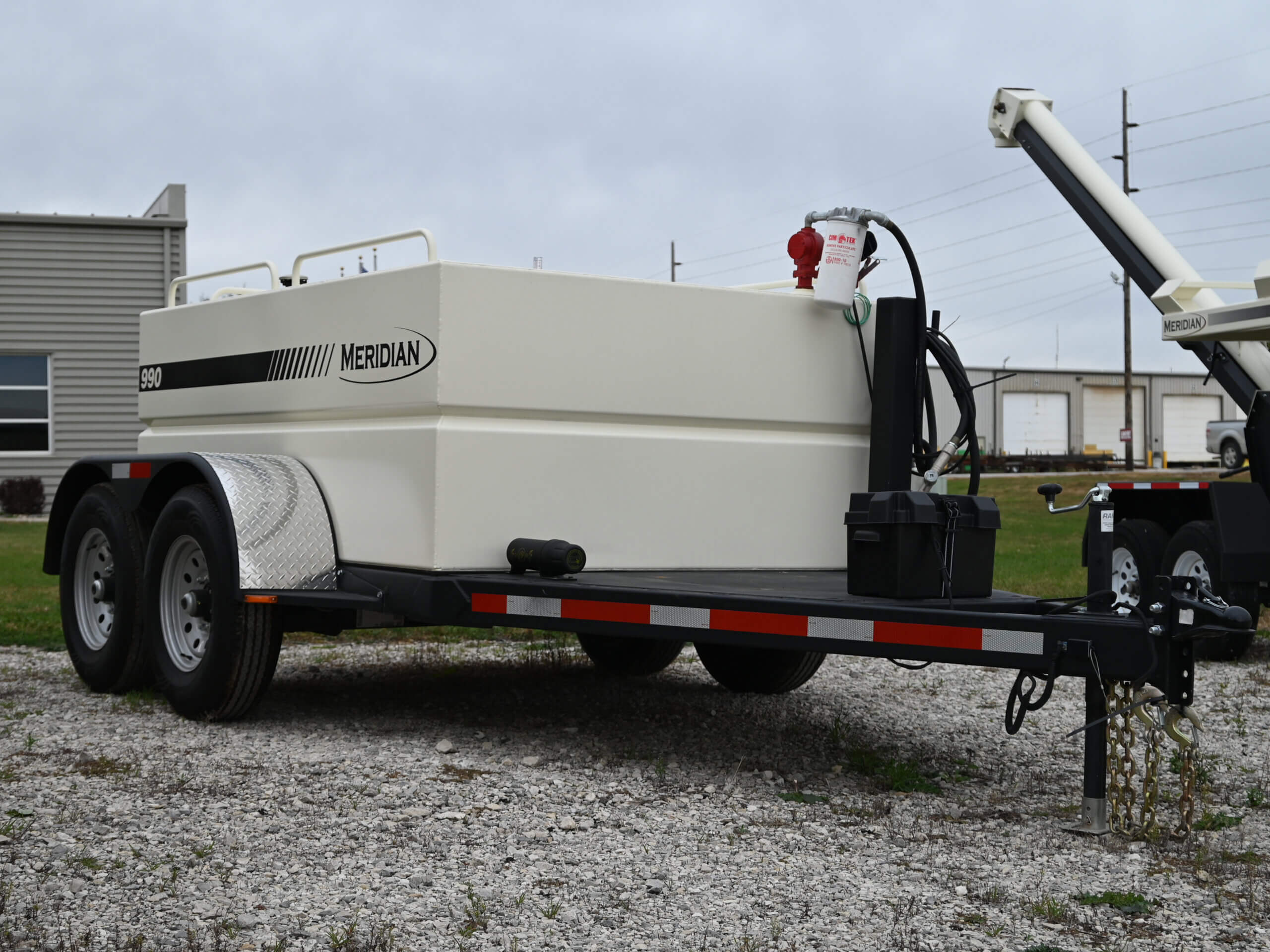

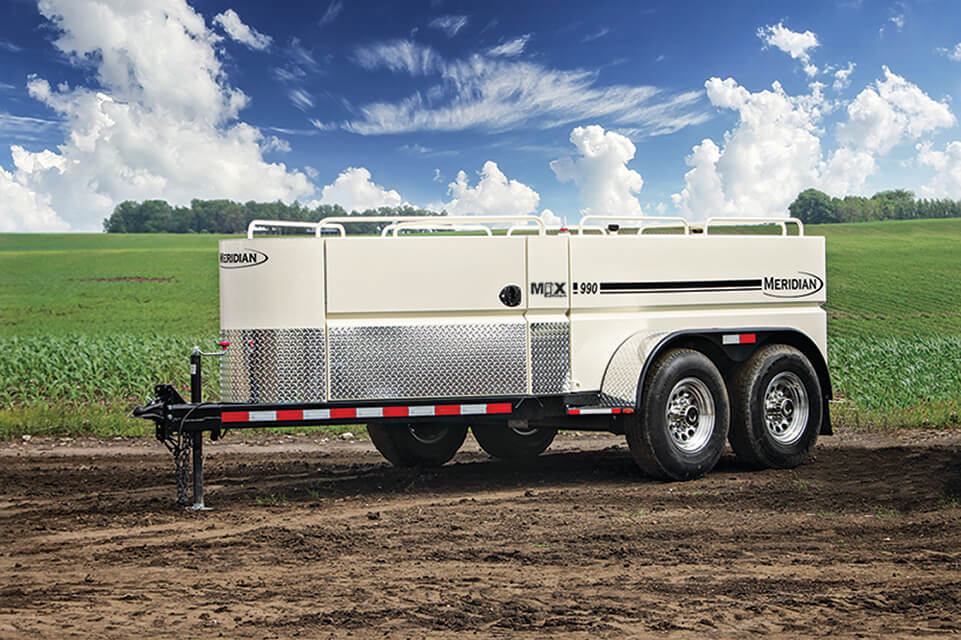

990 Features & Benefits:
- High Impact Powder Coat Finish
- Structural Rectangular Tubing Frame
- Tandem 7000# Torsion Axles
- Standard Front Compartment
- Diamond Plated Rock Guards
- 990 Gallon Triple Baffled Tank
- Low Profile Design with High Visibility
Advantages
- Powder Coat Finish | Meridian’s powder coating has a much better salt spray rating that wet paint
- Options & Accessories | Contact us to learn about the pump and service package options, such as hose and reel upgrades, utility boxes, welders, air compressors and more.
