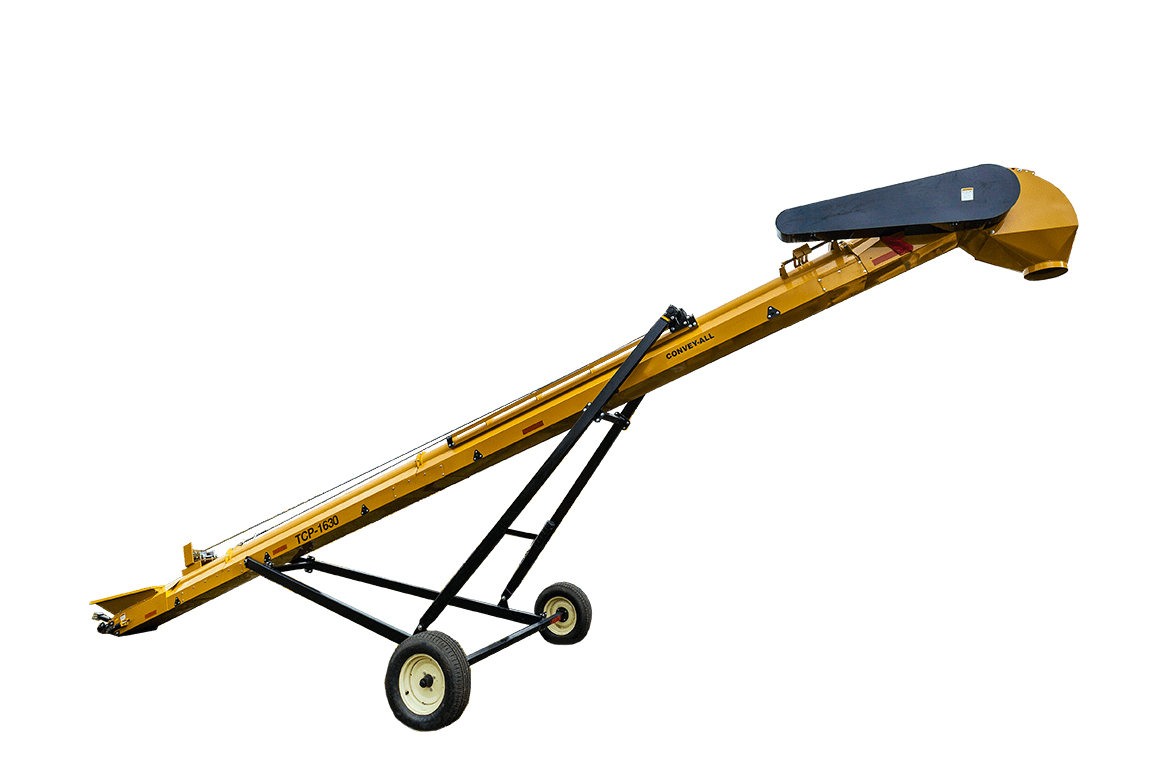

Moving seed and other sensitive bulk materials requires a balance between throughput, facility layout, and product quality. Meridian’s Convey-All Paddle Belt Conveyors are designed to move material at steeper operating angles while providing gentle handling that helps minimize product damage and reduce the transfer points often required with conventional conveying systems.

Ideal for seed processing and handling facilities, Paddle Belt Conveyors combine the benefits of enclosed conveying with the ability to operate at angles up to 40 degrees. This allows facilities to move product vertically in a smaller footprint while maintaining efficient material flow throughout the operation. Available in stationary and transportable configurations, Paddle Belt Conveyors can be integrated into receiving, treating, storage, and loadout systems as part of a complete material handling solution.

Common Applications

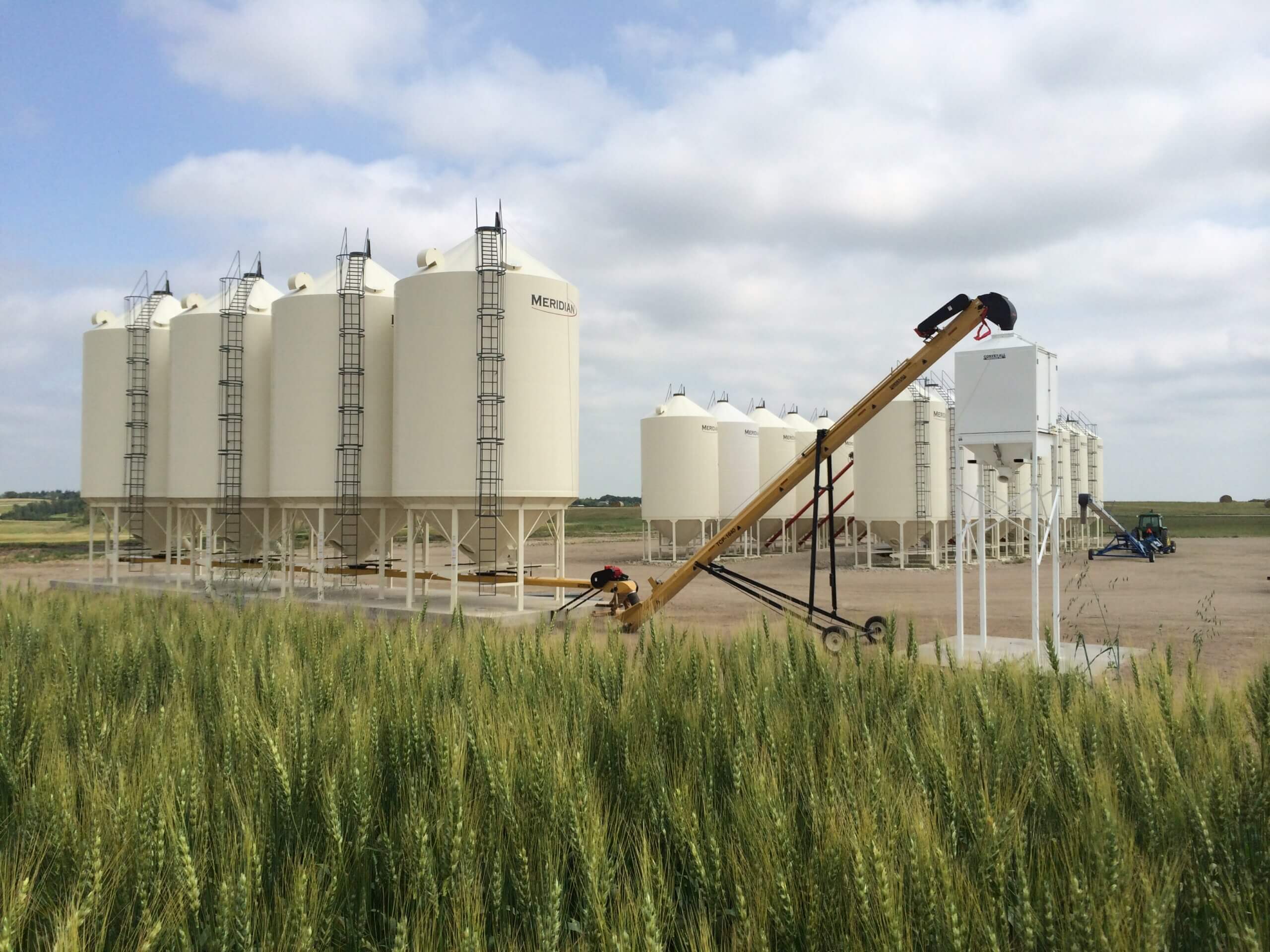

Seed processing facilities
Seed treating operations
Bulk ingredient handling

Model	Discharge Height/Length @ 30 degrees	Discharge Height/Length @ 35 degrees	Discharge Height/Length @ 40 degrees
1620	8’9″/18’2″	10’3″/17’6″	11’8″/16’8″
1625	11’3″/22’6″	13’1″/21’7″	14’11″/20’6″
1630	13’9″/26’10”	16’0″/25’8″	18’1″/24’3″
1635	16’3″/31’2″	18’10″/29’9″	21’4″/24’2″
1640	18’9″/35’6″	21’9″/33’10”	24’6″/32’0″

Standard Features

10” tube diameter
16” wide paddle belt
A-frame undercarriage
Hopper access panel
Top-end electric drive

Common Options (0 selected)

Collapsible hopper
Steel hopper cover

FAQ

Paddle Belt Conveyors are often selected when facilities need to move product at steeper angles while maintaining gentle product handling. This can help reduce the overall footprint of the conveying system and minimize the number of transfer points required throughout the process.

Every transfer point creates an opportunity for product damage. By moving material efficiently between processing stages while handling it gently, Paddle Belt Conveyors can help support product quality throughout the handling process.

The ability to operate at steeper angles allows Paddle Belt Conveyors to move material vertically within a smaller footprint. This can create additional flexibility when designing new facilities or upgrading existing operations with limited available space.
