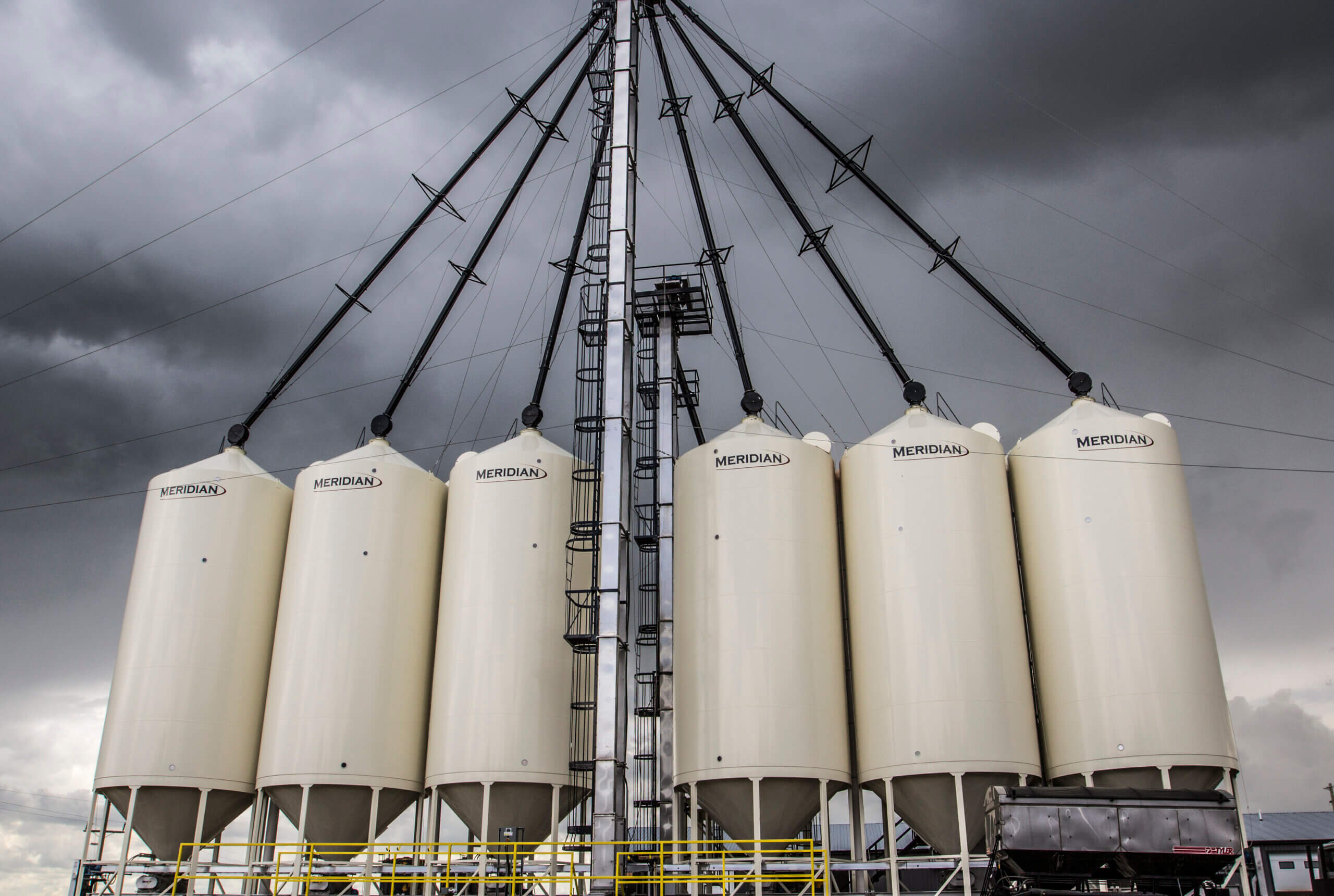

Fertilizer Silos – Meridian Manufacturing

Meridian Fertilizer Storage Silos provide efficient bulk storage for granular fertilizer due to the simple unloading and cleanout of the hopper bottom design. Designed for industrial and commercial operations, smoothwall protect product quality from moisture and contamination.

Built for demanding fertilizer handling environments, Meridian silos feature durable welded construction and a corrosion-resistant premium coating both internally and externally, for long service life. Multiple sizes as well as custom configurations are available to support blending blending facility, distribution site, or other industrial bulk storage application. Smoothwall hopper designs promote consistent flow and reduce material buildup, helping improve unloading efficiency and simplify maintenance.

Common Applications

Model	Approx. Bushels	Cubic Feet	Imp. Tons	Metric Tonnes	Bin Height	Rec. Auger
12’ Diameter 45° Bottom Cone
1205	804	947	29	26	16′-8″	33′
1208	1,093	1,286	39	36	19′-8″	39′
1210	1,284	1,511	46	42	21′-8″	39′
1212	1,476	1,737	53	48	23′-8″	39′
1215	1,763	2,075	64	58	26′-8″	46′
14’ Diameter 45° Bottom Cone
1410	1,823	2,145	66	60	23′-4″	39′
1412	2,084	2,452	76	68	25′-4″	46′
1415	2,476	2,913	90	81	28′-4″	53′
1417	2,737	3,220	99	90	30′-4″	53′
1420	3,128	3,681	114	103	33′-4″	59′
15’ 6” Diameter 40° Bottom Cone
15610	2,237	2,632	81	74	23’-9”	41’
15612	2,556	3,008	93	84	25′-9″	46′
15615	3,037	3,573	110	100	28′-9″	53′
15617	3,357	3,950	122	111	30′-9″	53′
15620	3,836	4,513	139	126	33′-9″	59′
15625	4,636	5,455	169	153	38′-9″	66′
15630	5,434	6,394	198	179	43′-9″	72′
16’ Diameter 40° Bottom Cone
1610	2,405	2,830	87	79	23′-11″	46′
1612	2,746	3,231	100	90	25′-11″	46′
1615	3,258	3,833	118	107	28′-11″	53′
1617	3,599	4,235	131	119	30′-11″	53′
1620	4,109	4,835	149	136	33′-11″	59′
1625	4,961	5,837	180	164	38′-11″	66′
1630	5,813	6,839	212	192	43′-11″	72′
18’ Diameter 40° Bottom Cone
1810	3,155	3,712	115	104	25′-6″	46′
1815	4,233	4,981	154	140	30′-6″	53′
1820	5,312	6,250	193	175	35′-7″	59′
1825	6,392	7,520	233	211	40′-6″	66′
1830	7,470	8,789	272	247	45′-6″	79′

FAQ

Smoothwall designs help reduce material buildup and improve material flow during unloading, which simplifies cleanout and helps minimize cross-contamination between products. Plus, the sealed design of the silo helps to prevent internal moisture issues which could lead to bridging as the silo is emptied.

Each silo is finished with a premium coating system designed to provide long-term protection in corrosive fertilizer storage environments.

Yes. In addition to agricultural applications, Meridian silos are used in industrial bulk material handling and storage operations where efficient dry bulk containment is required.
