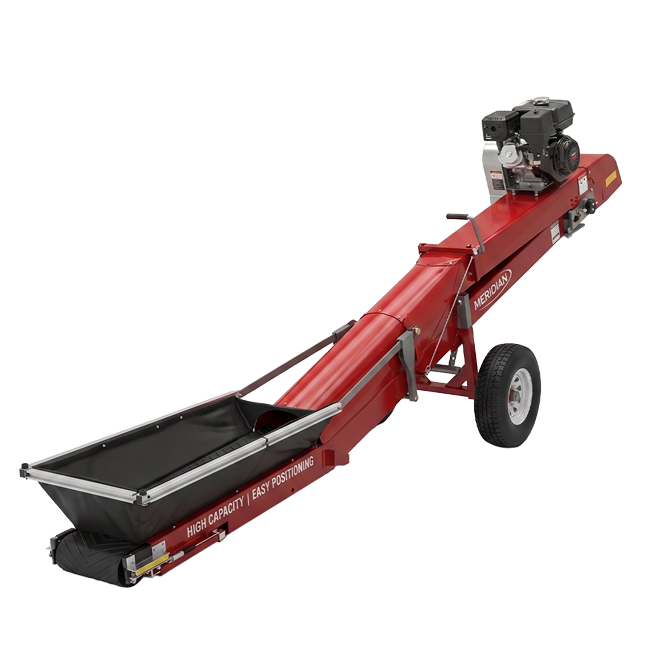

Meridian Jump/Transfer Conveyor
The Meridian JU20-12 is a fast, simple and versatile transfer belt conveyor, offering high capacities and easy placement for transferring grain, seed, or fertilizer. The JU20-12 features a 10” tube, 20” Chevron belt, collapsible intake hopper and dual swivel wheels for easy positioning, helping you farm efficiently.
Models Specifications
| Dimension | Lowered Position | Raised Position |
|---|---|---|
| Gas | ||
| Gas Model Discharge Height | 5′ 2″ | 6′ 0″ |
| Gas Model Frame Height | 2′ 10″ | 4′ 0″ |
| Gas Model Axle to Intake | 8′ 5″ | 8′ 5″ |
| Gas Model Width | 4′ 8″ | 4′ 8″ |
| Electric | ||
| Electric Model Discharge Height | 4′ 8″ | 5′ 4″ |
| Electric Model Frame Height | 2′ 10″ | 4′ 0″ |
| Electric Model Axle to Intake | 8′ 5″ | 8′ 5″ |
| Electric Model Width | 4′ 8″ | 4′ 8″ |
Standard Features
- 10” Tube with 20” Belt
- Up to 10,000 Bushel Capacity
- Height adjustable undercarriage
- Removable drawbar hitch for better accessibility
- Collapsible intake hopper
- Dual swivel wheels for easy positioning
